HPE 686822-B21 | DL560 Gen8 Xeon E5-4610 Processor, 2.4GHz, 6-Core, 15MB, 95W

Authorised HPE Partner

SKU:686822-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

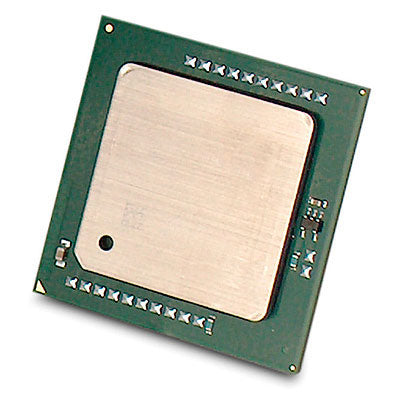

The HPE 686822-B21 is an Intel Xeon E5-4610 processor option kit for the HPE ProLiant DL560 Gen8 server. This 6-core, 12-thread processor runs at 2.4GHz base with up to 2.9GHz Turbo Boost, backed by 15MB of L3 cache and a 95W TDP, making it a practical choice for expanding or upgrading a DL560 Gen8 deployment.

Built on the Socket R (LGA2011) platform with 7.2 GT/s QPI links, the Xeon E5-4610 supports Intel Hyper-Threading and Intel Smart Cache for multi-threaded virtualisation, database and general business workloads. It is supplied as a full processor option kit for DL560 Gen8 servers.

Features

- Intel Hyper-Threading Technology for improved multi-threaded performance
- Intel Smart Cache for efficient shared cache access
- Intel Turbo Boost for on-demand clock speed increases
- Full processor option kit for DL560 Gen8 upgrades

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: Intel Xeon E5-4610
- Cores / threads: 6 cores / 12 threads
- Base clock: 2.4 GHz
- Max turbo frequency: 2.9 GHz
- L3 cache: 15 MB
- TDP: 95 W
- QPI: 7.2 GT/s, 2 QPI links
- Process: 32 nm
- Socket: Socket R (LGA2011)
- Architecture: 64-bit
- Compatible server: HPE ProLiant DL560 Gen8

FAQs

Q: Which server is the HPE 686822-B21 processor kit designed for?
A: It is an option kit for the HPE ProLiant DL560 Gen8 server.

Q: How many cores and threads does the Xeon E5-4610 have?
A: The Intel Xeon E5-4610 has 6 cores and 12 threads with Intel Hyper-Threading enabled.

Q: What are the clock speed and cache specifications?
A: It runs at 2.4GHz base with up to 2.9GHz Turbo Boost and includes 15MB of L3 cache.

Q: What is the power rating of this processor?
A: The Xeon E5-4610 has a 95W TDP, which should be considered when planning server power and cooling.

Q: What socket type does this processor use?
A: It uses the Socket R (LGA2011) socket with 7.2 GT/s QPI links.

Q: Does this kit support Intel Turbo Boost and Hyper-Threading?
A: Yes, the Xeon E5-4610 supports both Intel Turbo Boost and Intel Hyper-Threading Technology.
