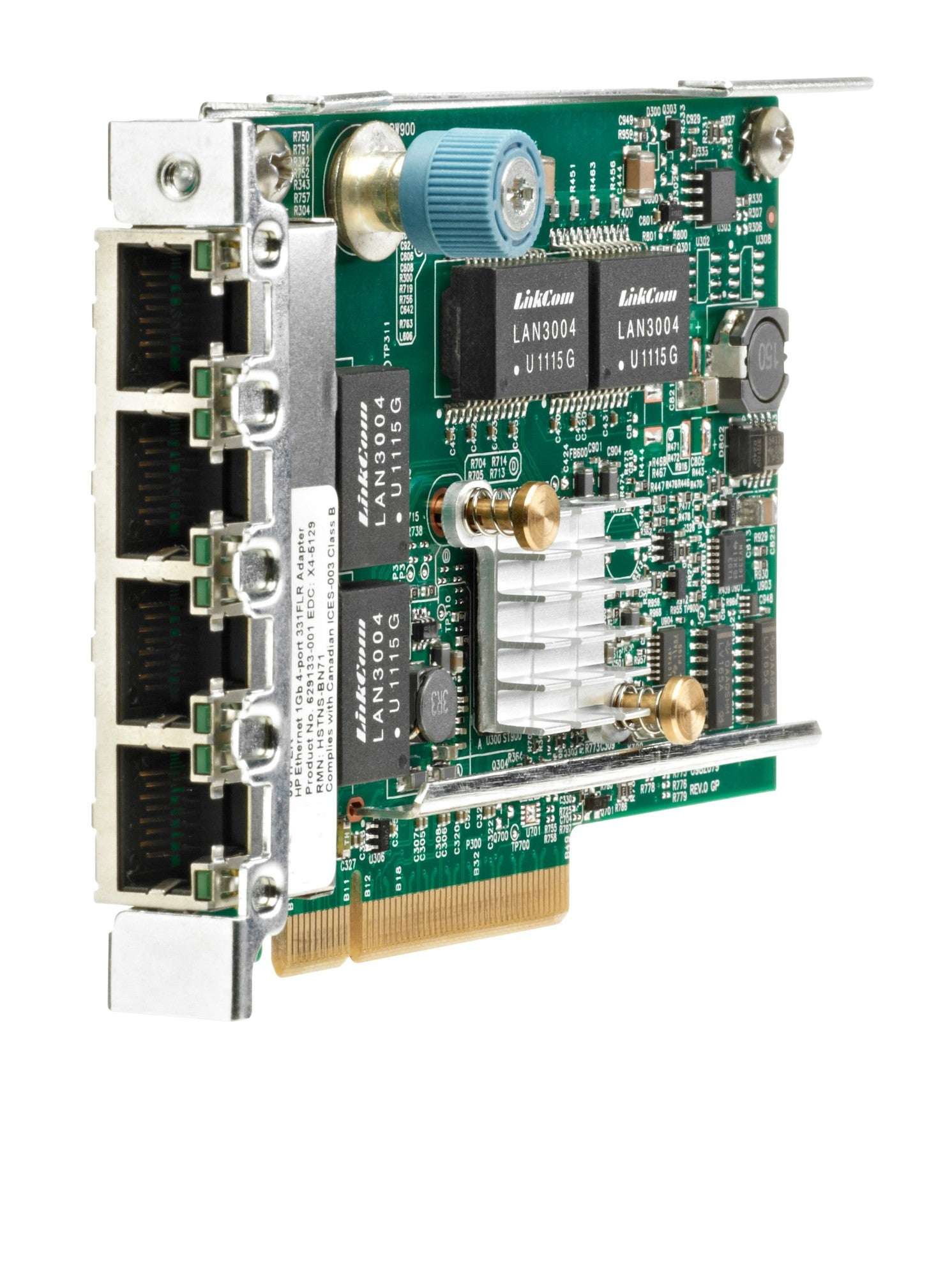

• HPE 629135-B22 331FLR adapter with 4 green 1GbE ports and silver bracket
1 1

HPE

HPE 629135-B22 | 331FLR 4 x 1GbE FlexibleLOM Adapter, RJ-45, Broadcom BCM5719

HPE 629135-B22 | 331FLR 4 x 1GbE FlexibleLOM Adapter, RJ-45, Broadcom BCM5719

629135-B22

Stock Status: Enquire

$148.01 AUD
$148.01 AUD
$148.01 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The 331FLR 4 x 1GbE FlexibleLOM adapter adds dense copper networking to compatible HPE ProLiant servers. Powered by the Broadcom BCM5719 controller, it delivers reliable 10/100/1000BASE-T connectivity over standard RJ-45 with VLAN tagging, RSS, checksum and TCP segmentation offload, jumbo frames and PXE boot. Designed for the HPE FlexibleLOM (FLR) slot, it preserves PCIe slots while enabling port redundancy and link aggregation. Backed by HPE warranty and firmware integration, this adapter is ideal for virtualisation hosts and I/O intensive workloads. iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Quad-port 1GbE density for high network consolidation
- FlexibleLOM design preserves PCIe slots for other expansion
- RJ-45 copper interfaces leverage existing Cat5e/6 cabling
- Offload and RSS technologies reduce CPU overhead and boost throughput
- Seamless HPE firmware and driver integration for ProLiant servers
- PXE boot support simplifies network-based provisioning

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 4 x 10/100/1000BASE-T RJ-45
- Controller: Broadcom BCM5719
- Form factor: HPE FlexibleLOM (FLR-T)
- Host interface: PCI Express 2.0 x4 via FlexibleLOM
- Data rate: 1 Gbps per port, full-duplex
- Standards/features: IEEE 802.3/802.3u/802.3ab, 802.1Q VLAN, 802.3x flow control, RSS, TSO, IPv4/IPv6 checksum offload
- Jumbo frames: up to 9K
- Boot support: PXE
- Cabling: Cat5e or better, up to 100 m
- Compatibility: HPE ProLiant servers with a FlexibleLOM (FLR) slot

FAQs

Q: Which servers are compatible with this adapter?
A: It is designed for HPE ProLiant servers that include a FlexibleLOM (FLR) slot. Check your specific server QuickSpecs to confirm 331FLR support.

Q: Does it work with VMware ESXi, Windows Server and Linux?
A: Yes. Broadcom BCM5719 drivers are available through HPE for major hypervisors and operating systems, including VMware ESXi, Microsoft Windows Server and popular Linux distributions.

Q: Can I team or bond the four 1GbE ports?
A: Yes. The ports support OS-level teaming/bonding and link aggregation (such as LACP) when configured on both the server and switch.

Q: Is this a standard PCIe card?
A: No. It is a FlexibleLOM (FLR) module and must be installed in a server with an HPE FlexibleLOM slot.

Q: What cabling do I need and what is the max distance?
A: Use Cat5e or better copper cabling for 1000BASE-T, supporting runs up to 100 metres per port.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. You can buy online or request a formal quote from IP Trading for Australian supply, invoicing and support.
