HP

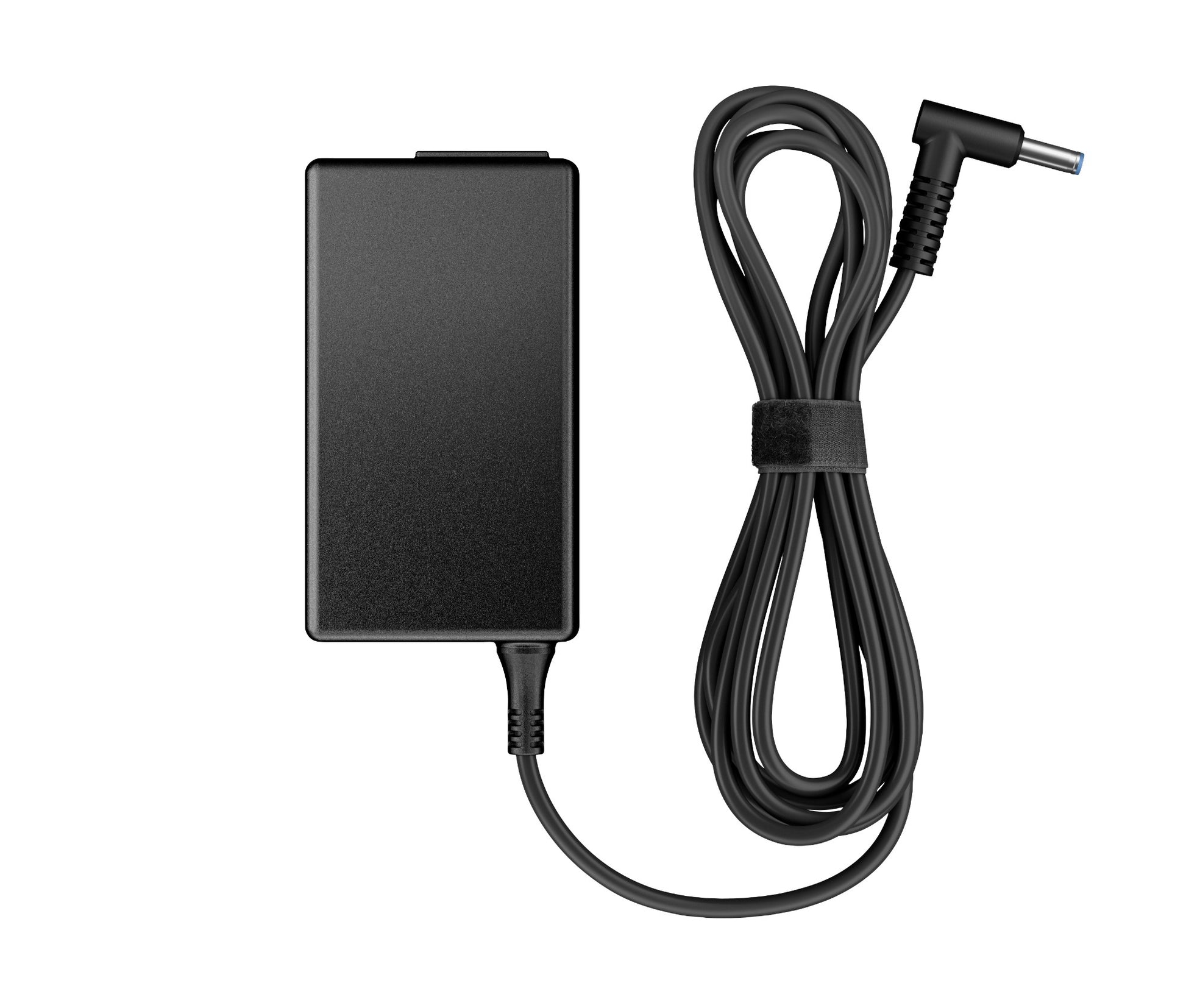

HP H6Y89AA | 65W Smart AC Adapter, 4.5mm with 7.4mm Dongle, AU Plug

HP H6Y89AA | 65W Smart AC Adapter, 4.5mm with 7.4mm Dongle, AU Plug

Authorised HP Partner

SKU:H6Y89AA

$42.54 inc. GST
$38.67 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:266

Description

The 65W Smart AC Adapter is an external notebook power adapter for HP business and consumer notebooks with a 4.5mm charging port. This SKU delivers 65 W at 18.5 V DC through a right-angled 4.5mm smart-pin connector, includes a 4.5mm-to-7.4mm dongle for earlier HP models, and ships with an Australian (AU) plug power cord.

Smart-pin technology detects and regulates power and offsets electrical spikes, while built-in surge protection and low standby draw help protect the notebook and reduce wasted energy. The right-angled (90°) connector suits tight spaces and reduces cable stress, and the universal 90-265 VAC input makes it a practical replacement or spare for office, travel and deployment kits.

Features

- Smart-pin technology detects and regulates power and offsets electrical spikes
- Surge protection with minimal power draw when not in use
- Right-angled 4.5mm connector for tight spaces and reduced cable stress
- Included dongle converts the 4.5mm connector to the 7.4mm used on earlier HP notebooks
- Compatible with HP business and consumer notebooks with a 4.5mm or 7.4mm charging port
- Wide 90-265 VAC input range suits worldwide mains supplies

Warranty

HP offers a limited hardware warranty on its products, with coverage periods varying by product line. For example, many HP laptops and desktops come with a 1-year warranty, while certain business-class devices may offer longer durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HP products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output power: 65 W
- DC output voltage: 18.5 V
- Connector: HP 4.5 mm Smart Barrel, right-angled (90°)
- Dongle: 4.5mm to 7.4mm DC adapter included
- Input voltage: 90 to 265 VAC, 47-63 Hz
- Input AC current: 1.7 A at 90 VAC; 0.85 A at 180 VAC
- Output current limit: less than 5 A
- Over voltage protection: 29 V max, automatic shutdown
- Cable length: 180 cm
- Dimensions (W x D x H): 4.7 x 2.8 x 10.6 cm
- Weight: 280 g
- Operating temperature: 5 to 35 C
- Colour: Black
- Box contents: 65W AC adapter, 4.5mm to 7.4mm DC dongle, power cord, documentation

FAQs

Q: Does this adapter work with older HP notebooks that use a 7.4mm charging port?
A: Yes. A 4.5mm-to-7.4mm dongle is included, so the adapter can power earlier HP notebooks with a 7.4mm port as well as newer models with a 4.5mm port.

Q: What is the output rating of this adapter?
A: It delivers 65 W at 18.5 V DC through an HP 4.5mm smart-pin connector.

Q: Is the connector straight or right-angled?
A: The 4.5mm connector is right-angled (90°), which suits tight spaces and reduces strain on the cable.

Q: Does it come with an Australian power cord?
A: Yes. This SKU is supplied with an AU plug power cord, along with the 4.5mm-to-7.4mm dongle and documentation.

Q: Can I use it with mains power outside Australia?
A: The adapter accepts 90-265 VAC at 47-63 Hz, so it handles a wide range of mains supplies. A suitable regional power cord or plug adapter is required.

Q: What protection features does it include?
A: Smart-pin technology regulates power and offsets electrical spikes, surge protection is built in, and over voltage protection triggers automatic shutdown at a 29 V maximum.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
