HP 83Z52AA | Studio X70 4K All-In-One Video Bar, TC8 Controller Kit

HP 83Z52AA | Studio X70 4K All-In-One Video Bar, TC8 Controller Kit

Authorised HP Partner

SKU:83Z52AA

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 12

Description

The Poly Studio X70 All-In-One Video Bar with TC8 Controller Kit is a 4K video conferencing bar for mid-size to large meeting rooms. It combines a dual-lens 4K camera, a microphone array, stereo speakers and built-in cloud video apps in a single bar. This kit includes the TC8 8-inch touch controller for one-touch meeting join, camera control and content sharing.

Poly NoiseBlockAI and Acoustic Fence audio technologies keep conversations clear, while Polycom Lost Packet Recovery and dynamic bandwidth allocation help maintain call quality. The TC8 is powered and connected over a single RJ45 cable, and the kit includes a wall mount, two HDMI cables, an Ethernet cable and an RJ45 LAN cable for straightforward room deployment.

Features

- Built-in cloud video apps
- Poly NoiseBlockAI and Acoustic Fence audio technologies
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- TC8 integrated calendar for one-touch join
- Camera adjustment, participant layout changes and content sharing from the TC8
- Dual-lens 4K camera with 7.3x digital zoom
- Integrated lens cover for privacy

Warranty

HP offers a limited hardware warranty on its products, with coverage periods varying by product line. For example, many HP laptops and desktops come with a 1-year warranty, while certain business-class devices may offer longer durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HP products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Camera: 2 x 20 MP dual-lens, up to 4K resolution at 15 fps in call
- Video frame rate: 5-30 fps
- Zoom: 7.3x digital
- Field of view: 120/70 degrees
- Microphone pickup range: up to 25 ft

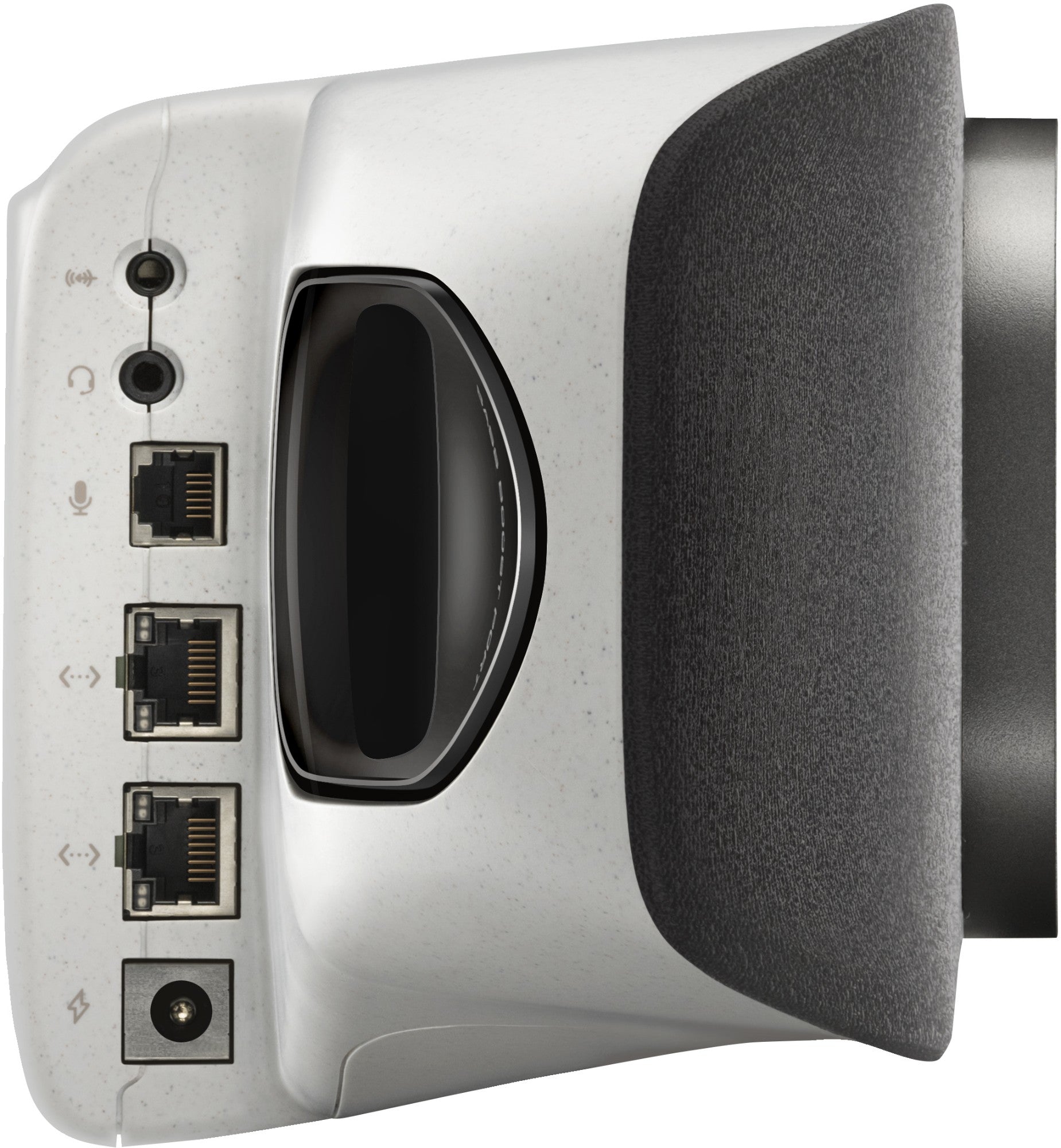

- Ports: 1 x USB Type-C 5Gbps, 2 x USB Type-A 5Gbps, 2 x RJ-45, 1 x audio-in, 1 x audio-out, 2 x HDMI-out 1.4 (video), 1 x HDMI-in 1.4 (audio)
- Network: 1 x 10/100/1G Ethernet, IPv4/IPv6, H.323 and/or SIP up to 6 Mbps in Poly App video mode
- Wireless: Wi-Fi and Bluetooth
- Power: external auto-sensing power supply
- Integrated lens cover
- TC8 touch controller: 8-inch high-resolution touch display, powered and connected over a single RJ45 cable
- Kit includes wall mount, 2 x HDMI cable, Ethernet cable and RJ45 LAN cable

FAQs

Q: What is included in the Studio X70 TC8 Controller Kit?
A: The kit includes the Poly Studio X70 video bar, the TC8 8-inch touch controller, a wall mount, 2 x HDMI cables, an Ethernet cable and an RJ45 LAN cable.

Q: How is the TC8 touch controller connected?
A: The TC8 is powered and connected over a single RJ45 cable, which keeps room cabling simple.

Q: What size of room is the Studio X70 suited to?
A: It is designed for mid-size to large meeting rooms, with a dual-lens 4K camera, a microphone array with up to 25 ft pickup range and stereo speakers.

Q: Does the Studio X70 support cloud video platforms?
A: Yes, it has built-in cloud video apps, so it can run meetings natively without requiring a separate PC.

Q: What display and USB connections does it provide?
A: It has 2 x HDMI 1.4 outputs for video, 1 x HDMI 1.4 input for audio, 1 x USB Type-C 5Gbps and 2 x USB Type-A 5Gbps ports.

Q: What does the TC8 controller allow users to do?
A: Users can join meetings with one touch from the integrated calendar, adjust the camera, change participant layouts and share content.
