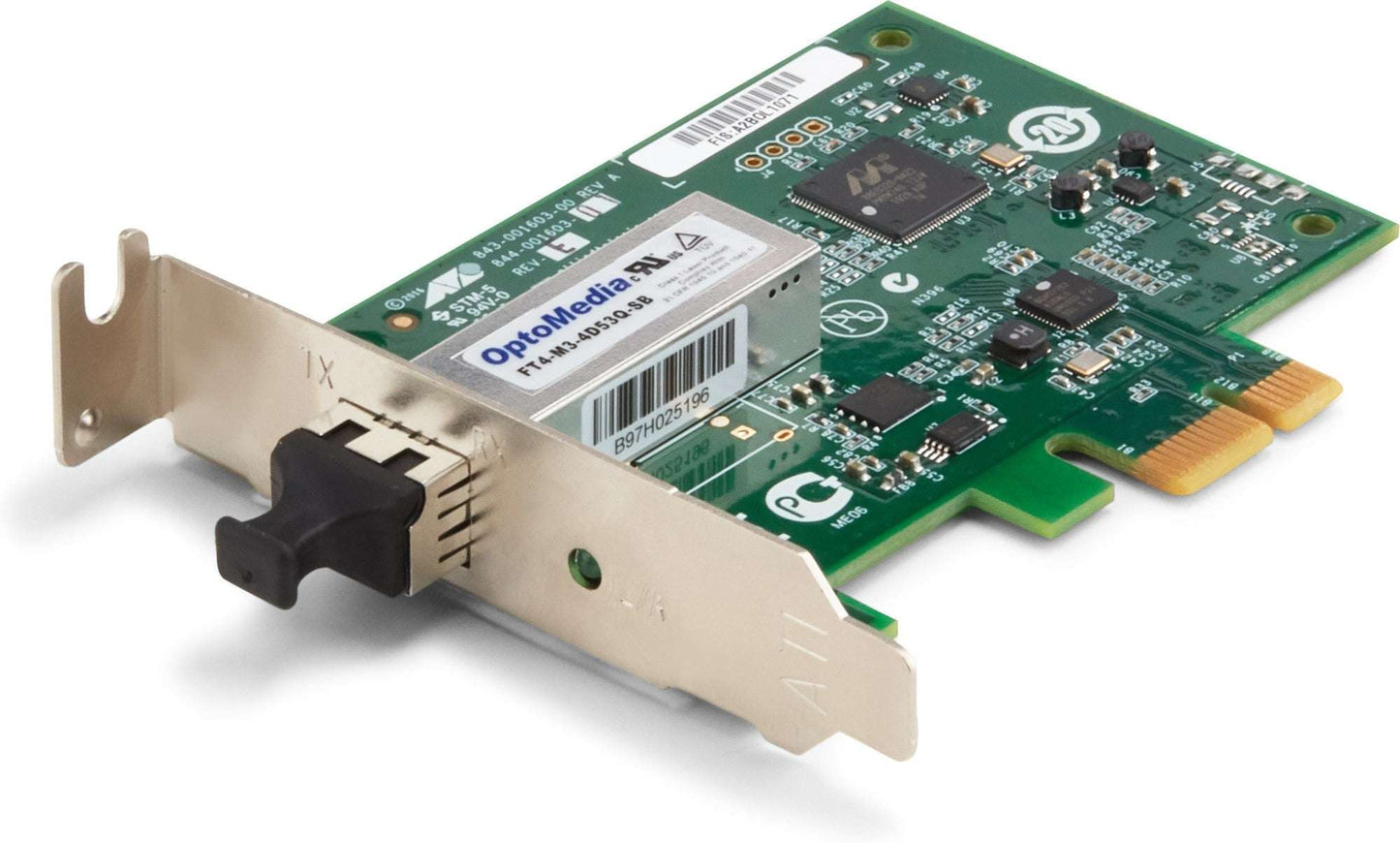

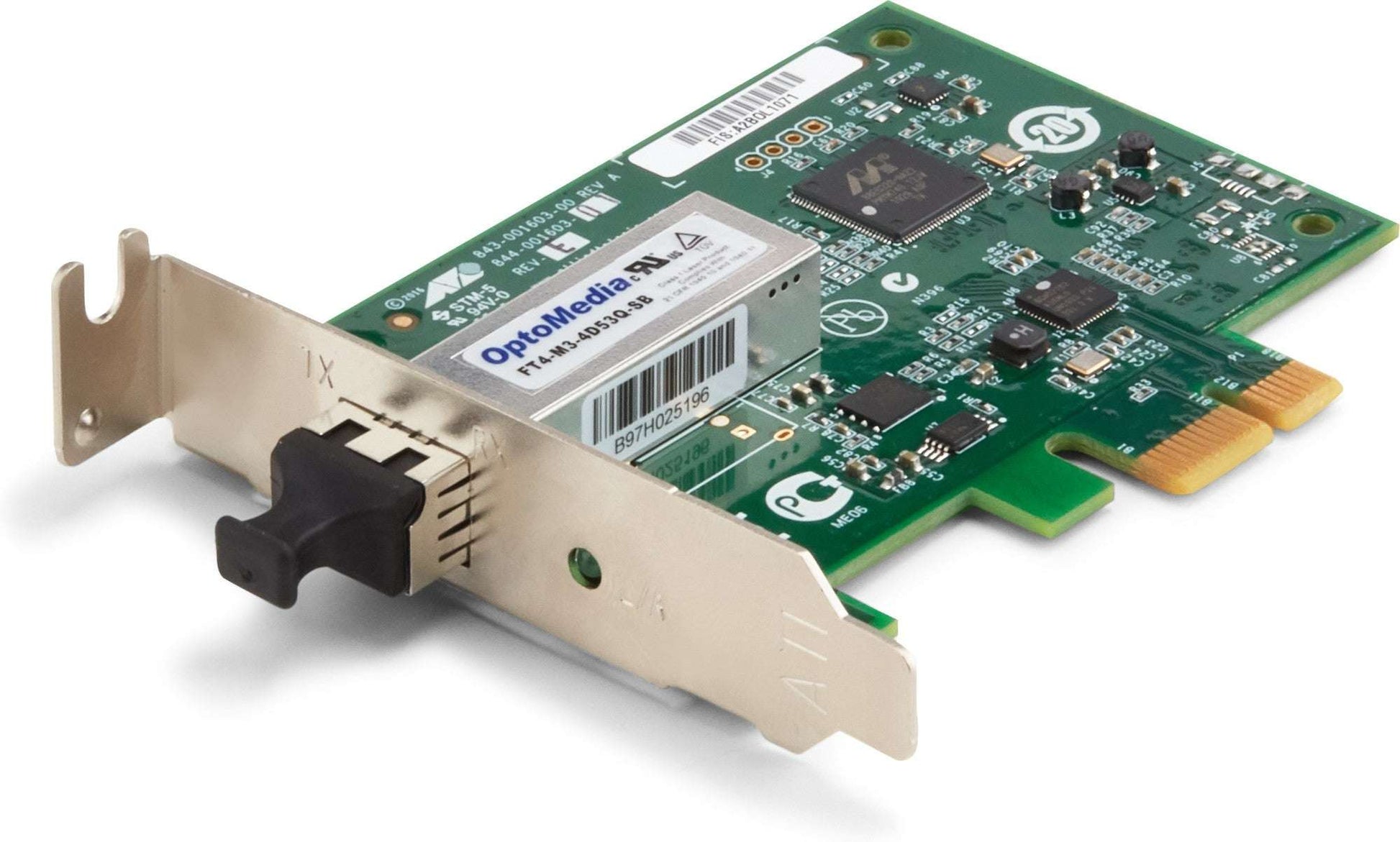

HP 1C7Q2AA | AT-2914SX/LC PCIe 1Gb Fibre NIC, 1000BASE-SX LC, 550 m MMF

HP 1C7Q2AA | AT-2914SX/LC PCIe 1Gb Fibre NIC, 1000BASE-SX LC, 550 m MMF

Authorised HP Partner

1C7Q2AA

Stock Status: Enquire

$871.59 inc. GST
$792.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

Upgrade desktops or servers to reliable gigabit fibre with the AT-2914SX/LC PCIe adapter. It delivers 1000BASE-SX over LC multimode fibre at 850 nm for secure, interference‑resistant links across the campus, with features such as VLAN tagging, jumbo frames and PXE boot to streamline deployment and performance. Built for PCI Express slots and engineered for long service life, this adapter provides a straightforward path to fibre connectivity and is backed by the manufacturer warranty for peace of mind.

Features

- Fibre-ready connectivity for secure, EMI‑resistant links across the campus
- LC duplex interface simplifies multimode fibre patching
- PCIe design integrates easily into desktops and servers
- 1000BASE-SX performance with reach up to 550 m on MMF
- Network offloads and jumbo frames improve throughput and reduce CPU load
- PXE boot enables zero‑touch imaging and rapid deployment

Warranty

HP offers a limited hardware warranty on its products, with coverage periods varying by product line. For example, many HP laptops and desktops come with a 1-year warranty, while certain business-class devices may offer longer durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HP products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bus interface: PCI Express (PCIe) x1, compatible with x1/x4/x8/x16 slots
- Port count: 1 x Gigabit Ethernet over fibre
- Ethernet standard: 1000BASE-SX
- Connector: LC duplex
- Wavelength: 850 nm
- Fibre type: Multimode fibre (MMF)
- Maximum reach: up to 550 m on 50/125 µm MMF; up to 275 m on 62.5/125 µm MMF
- Standards support: IEEE 802.3z (1000BASE-SX), IEEE 802.3x flow control
- Jumbo frames support (up to 9 KB)
- 802.1Q VLAN tagging and checksum offload
- PXE network boot ROM support

FAQs

Q: Which expansion slots does this NIC support?
A: It uses a PCI Express x1 interface and is mechanically compatible with x1, x4, x8 and x16 PCIe slots.

Q: What fibre type and distance are supported?
A: It supports 1000BASE-SX over 850 nm multimode fibre, up to 550 m on 50/125 µm MMF (or up to 275 m on 62.5/125 µm MMF).

Q: Does the adapter use an LC connector and how many ports does it have?
A: Yes, it has one LC duplex port for Gigabit Ethernet over fibre.

Q: Are jumbo frames and VLAN tagging supported?
A: Yes. The adapter supports jumbo frames (up to 9 KB) and IEEE 802.1Q VLAN tagging to optimise throughput and segmentation.

Q: Is driver support available for Windows and Linux?
A: Yes. Drivers are available for major Windows and Linux distributions; check the vendor’s compatibility list for specific OS versions.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. Order directly from iptrading.com.au with fast nationwide shipping and expert pre‑sales support.
