HP 141J6AA | 1GbE LAN Flex Port Network Adapter, 2020 Model, RJ-45

Authorised HP Partner

SKU:141J6AA

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

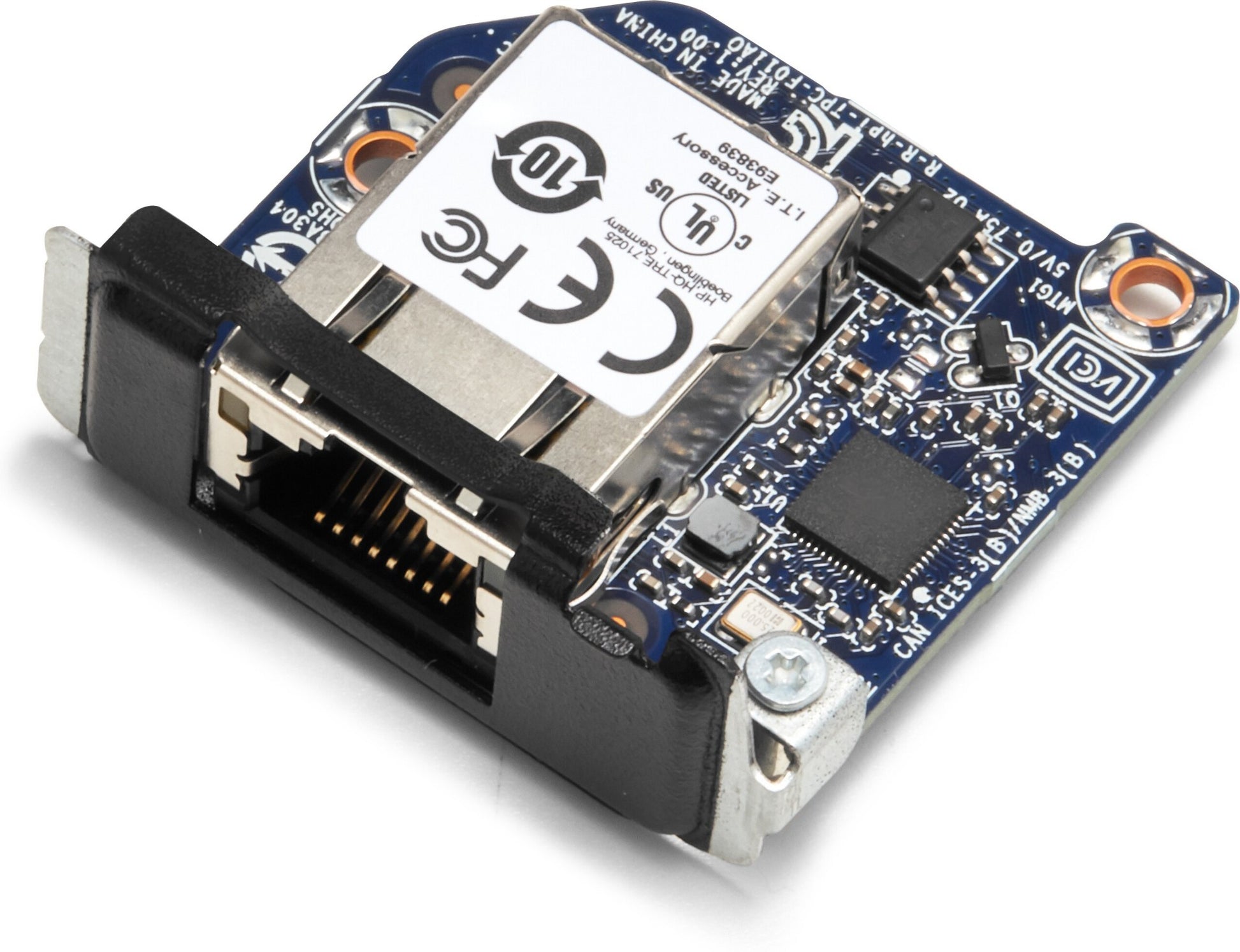

The HP 141J6AA 1GbE LAN Flex Port Network Adapter, 2020 Model, adds a single RJ-45 Gigabit Ethernet port to compatible HP workstations and desktops through the system Flex IO port. Built around a Realtek RTL8153 10/100/1000 controller, it suits deployments that need a second wired network connection for segregated networks, management traffic or higher availability.

The module supports Energy Efficient Ethernet, IEEE 802.1Q VLAN tagging and Wake-on-LAN, and runs over Category 5e or better cabling at distances up to 100 m. It is designed for HP workstations such as the Z2 Mini G9 and communicates with the host system using the USB protocol over the Flex IO connector.

Features

- Supports IEEE 802.3az-2010 Energy Efficient Ethernet (EEE)
- Compliant with Microsoft NDIS5/NDIS6 checksum features
- Supports IEEE 802.1Q VLAN and 802 layer 2 priority encoding
- Wake-on-LAN (WOL) support through the Flex IO port
- Designed for HP workstations such as the Z2 Mini G9

Warranty

HP offers a limited hardware warranty on its products, with coverage periods varying by product line. For example, many HP laptops and desktops come with a 1-year warranty, while certain business-class devices may offer longer durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HP products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RJ-45 1GbE port (10/100/1000)
- Realtek RTL8153 10/100/1000 Ethernet controller
- System interface: Flex IO (communicates via USB protocol)
- Cabling: Category 5e or better, up to 100 m
- 1000Base-T twisted pair

FAQs

Q: What does the HP 141J6AA add to a workstation?
A: It adds a single RJ-45 Gigabit Ethernet port (10/100/1000) to a compatible HP workstation or desktop via the Flex IO port.

Q: Which network controller does this module use?
A: It uses a Realtek RTL8153 10/100/1000 Ethernet controller.

Q: What cabling is required?
A: Category 5e or better twisted pair cabling, with 1000Base-T runs up to 100 m.

Q: Does it support Wake-on-LAN and VLANs?
A: Yes. It supports Wake-on-LAN through the Flex IO port, as well as IEEE 802.1Q VLAN and layer 2 priority encoding.

Q: Which HP systems is it designed for?
A: It is designed for HP workstations with a Flex IO port, such as the Z2 Mini G9. Confirm your model has a compatible Flex IO port before ordering.

Q: Does it support Energy Efficient Ethernet?
A: Yes, it supports IEEE 802.3az-2010 Energy Efficient Ethernet (EEE) to reduce power use during low link activity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
