Honeywell VM3A-L0N-1B3A20E | Thor VM3A 12.1in Vehicle Mount Computer, Outdoor 900 Nit, 4GB/32GB

Name: Honeywell VM3A-L0N-1B3A20E | Thor VM3A 12.1in Vehicle Mount Computer, Outdoor 900 Nit, 4GB/32GB
Brand: Honeywell
SKU: VM3A-L0N-1B3A20E
Price: 10884.06 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:VM3A-L0N-1B3A20E

Stock Status: Enquire

$10,884.06 inc. GST

$9,894.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

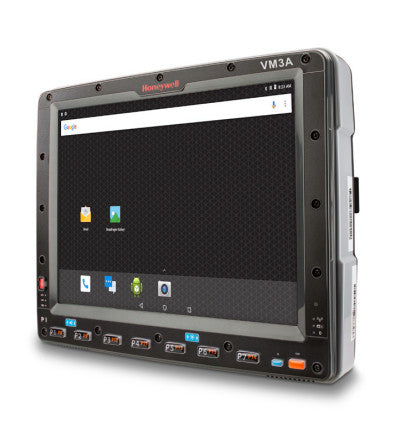

The Honeywell Thor VM3A is a 12.1 inch rugged Android vehicle mount computer built for distribution centres, manufacturing and freight operations. This outdoor configuration pairs a 900 nit XGA display with a resistive touch panel, 4GB RAM and 32GB flash, and ships with the Enhanced (Extended) dock and Google Mobile Services (GMS).

Powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor, the VM3A includes 802.11 a/b/g/n/ac 2x2 MIMO WLAN, Bluetooth 5.0 BLE and NFC, plus seven programmable keypad keys. IP66 sealing, a 10 to 60V DC isolated power input and an integrated Li-Ion maintenance UPS make it suited to forklifts and other industrial vehicles in demanding indoor and outdoor environments.

Features

- Smart Dock allows the computer to be mounted and removed in seconds without disturbing cabling
- Field-replaceable front panel lets on-site staff service the touchscreen or keypad
- Mobility Edge platform with extended security update support
- Upgradable to Android 13
- Large 12 inch display readable indoors and outdoors
- Integrated keyboard with seven programmable keys
- 2x2 MIMO WLAN for reliable roaming coverage
- Integrated Li-Ion maintenance UPS keeps the unit running through short power interruptions

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12.1 in XGA (1024 x 768) LED backlit display, 900 nit outdoor-readable
- Industrial resistive touch panel, finger and standard stylus support
- Seven programmable multi-function keypad keys
- Processor: 2.2 GHz Qualcomm Snapdragon 660 octa-core
- Memory: 4 GB RAM, 32 GB flash
- Storage expansion: user-accessible microSD up to 512 GB (SDXC/SDHC)
- Operating system: Android with GMS, guaranteed support through Android 13
- WLAN: 802.11 a/b/g/n/ac/d/e/h/i/k/r/w, 2x2 MIMO, dual internal antennas, 2x SMA external antenna connectors
- Bluetooth Class 1.5 V5.0 and BLE, integrated NFC
- Enhanced dock I/O: 2x powered RS-232 COM, 1x USB 2.0 powered host Type A, 3 additional USB 2.0 powered host ports, 1x USB 2.0 Client, 1x Ethernet RJ45, headset port, DC power input, ignition control input
- Audio: integrated stereo speakers, integrated microphone, headset port
- Sensors: ambient light sensor, accelerometer, gyroscope, magnetometer
- Power: 10 to 60V DC isolated input with integrated Li-Ion maintenance UPS
- Environmental sealing: IP66
- Operating temperature: -20 to +50 C, humidity 5% to 95% non-condensing
- Computer dimensions: 318 x 260 x 62 mm, weight 3.0 kg

FAQs

Q: Is the VM3A-L0N-1B3A20E suitable for outdoor use?
A: Yes. This configuration has a 900 nit outdoor-readable display and IP66 sealing, with an operating temperature range of -20 to +50 C.

Q: What touch technology does this model use?
A: It uses an industrial resistive touch panel that works with a finger or a standard stylus, including when gloves are worn.

Q: What ports does the Enhanced dock provide?
A: The Enhanced dock provides 2x powered RS-232 COM ports, four USB 2.0 powered host ports, 1x USB 2.0 Client, 1x Ethernet RJ45, a headset port, DC power input and ignition control input.

Q: What power input does the VM3A accept?
A: It accepts a 10 to 60V DC isolated input. Optional external AC (90-240V AC) and extended range DC (60-150V DC) converters are available separately.

Q: Does this unit include Google Mobile Services?
A: Yes. This SKU runs Android with GMS and is upgradable to Android 13.

Q: Can storage be expanded?
A: Yes. A user-accessible microSD slot supports cards up to 512 GB in addition to the 32 GB internal flash.
