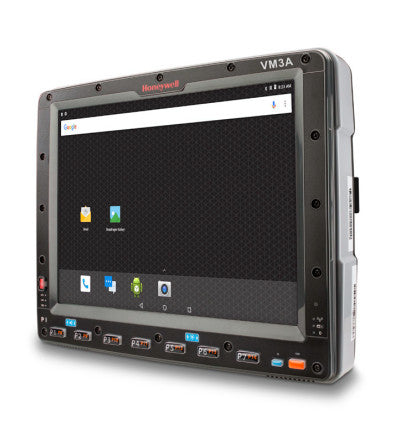

Honeywell VM3A-L0N-1A1A20E | Thor VM3A Vehicle Mount Computer, 12.1in Indoor Resistive, 4GB/32GB

Name: Honeywell VM3A-L0N-1A1A20E | Thor VM3A Vehicle Mount Computer, 12.1in Indoor Resistive, 4GB/32GB
Brand: Honeywell
SKU: VM3A-L0N-1A1A20E
Price: 10341.38 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:VM3A-L0N-1A1A20E

Stock Status: Enquire

$10,341.38 inc. GST

$9,401.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Honeywell Thor VM3A vehicle mount computer is a rugged Android 12.1 inch indoor resistive-touch terminal for distribution centres, manufacturing and freight operations. This Android ML GMS model with Device Client Pack combines a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor with 4GB RAM and 32GB flash, 802.11 a/b/g/n/ac WLAN with internal antennas and Bluetooth 5.0. It is the worldwide mode configuration with no scanner included.

Built on the Honeywell Mobility Edge platform, the VM3A is IP66 sealed and operates from -20°C to +50°C. The Smart Dock allows the computer to be mounted and removed in seconds without disturbing cabling, while the integrated seven-key keypad, headset audio and Li-Ion maintenance UPS suit forklifts and other industrial vehicles powered from a 10 to 60V DC supply.

Features

- Smart Dock lets the computer be mounted and removed in seconds without disturbing cabling
- Field-replaceable front panel lowers maintenance costs and spare-part investment
- Honeywell Mobility Edge platform for faster provisioning, certification and deployment
- Extended security update support for lower total cost of ownership
- Upgradable Android path, with Android 13 supported
- Large 12-inch display readable indoors
- 2x2 MIMO WLAN and integrated keyboard with seven programmable keys
- Integrated Li-Ion maintenance UPS keeps the unit running through short power interruptions

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12.1 in XGA (1024 x 768) indoor LED-backlit display, 400 nit
- Industrial resistive touch panel, finger and stylus support
- 2.2 GHz Qualcomm Snapdragon 660 octa-core processor
- 4 GB RAM / 32 GB Flash
- Android ML GMS (Device Client Pack)
- 802.11 a/b/g/n/ac/d/e/h/i/k/r/w WLAN with dual internal antennas
- Bluetooth 5.0 (Class 1.5) and BLE, integrated NFC
- User-accessible microSD slot up to 512 GB
- Seven programmable multi-function keys
- Headset audio, integrated stereo speakers and microphone
- Sensors: ambient light, accelerometer, gyroscope, magnetometer
- IP66 sealed, independently certified
- Operating temperature -20°C to +50°C, humidity 5% to 95% non-condensing
- 10 to 60V DC isolated input with integrated Li-Ion maintenance UPS
- Computer dimensions 318 x 260 x 62 mm, weight 3.0 kg
- No scanner included

FAQs

Q: Does the VM3A-L0N-1A1A20E include a barcode scanner?
A: No. This configuration is supplied with no scanner. External scanning devices can be connected through its USB, RS-232 or Bluetooth connectivity.

Q: What touch panel does this model use?
A: It uses an industrial resistive touch panel that works with a finger, gloved hand or standard stylus. Other touch options exist elsewhere in the Thor VM3A family, but this SKU is the resistive model.

Q: What operating system and memory does it have?
A: It runs Android ML GMS with the Device Client Pack on a 2.2 GHz Snapdragon 660 octa-core processor, with 4GB RAM and 32GB flash. Storage can be expanded with a microSD card up to 512 GB.

Q: What wireless connectivity is supported?
A: It supports 802.11 a/b/g/n/ac WLAN using internal antennas, Bluetooth 5.0 Class 1.5 with BLE, and integrated NFC. Two SMA connectors are available for optional external antennas.

Q: How is the VM3A powered in a vehicle?
A: It accepts 10 to 60V DC isolated input, with optional external converters for AC (90 to 240V) and extended-range DC (60 to 150V). An integrated Li-Ion maintenance UPS supports the unit through brief power interruptions.

Q: Is this model suitable for outdoor or cold storage use?
A: This SKU is the indoor display variant, rated for -20°C to +50°C operation and sealed to IP66. It suits warehouses, distribution centres and factory floors.
