Honeywell VM1A-L0N-1B1A20A | Thor VM1A Rugged Vehicle-Mount Computer, Android GMS, 4GB/32GB, Resistive

Name: Honeywell VM1A-L0N-1B1A20A | Thor VM1A Rugged Vehicle-Mount Computer, Android GMS, 4GB/32GB, Resistive
Brand: Honeywell
SKU: VM1A-L0N-1B1A20A
Price: 6856.3 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:VM1A-L0N-1B1A20A

Stock Status: Enquire

$6,856.30 inc. GST

$6,233.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

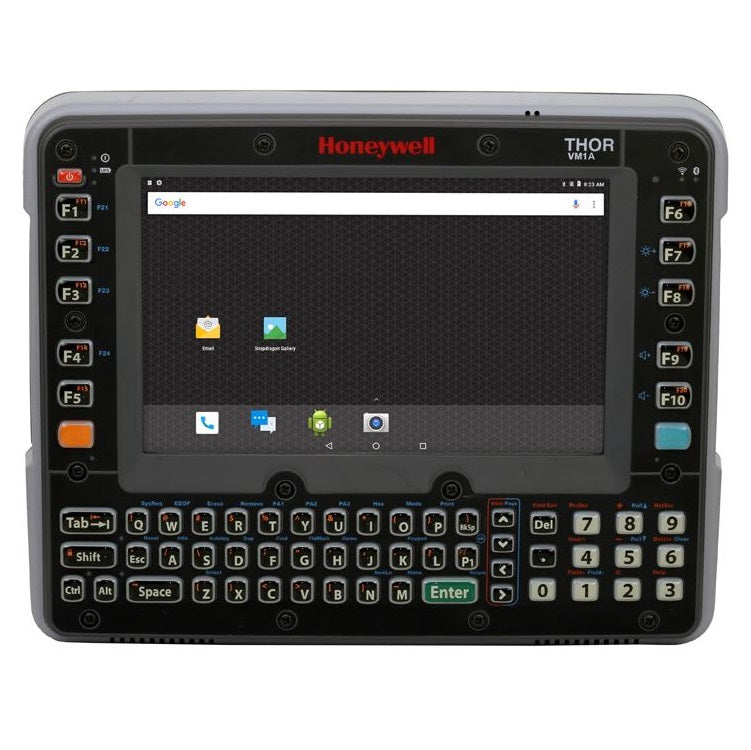

The Honeywell Thor VM1A is a rugged Android vehicle-mount computer for warehouses, ports, intermodal yards and manufacturing floors. This SKU is the indoor resistive touch configuration with 4GB RAM, 32GB flash, Android with GMS and external antenna connections, so it is clearly distinct from the capacitive, outdoor and cold-storage variants in the range. It is powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor and features an 8-inch WXGA 400 NIT display with a full backlit 64-key QWERTY keyboard.

Built on the Honeywell Mobility Edge platform, the VM1A is IP66 sealed, tested to MIL-STD-810F vibration, and accepts 10 to 60V DC isolated input with an integrated Li-Ion maintenance UPS. Dual-band 802.11 a/b/g/n/ac 2x2 MU-MIMO Wi-Fi, Bluetooth 5.0 and NFC keep operators connected, while the Smart Dock allows fast mounting and removal without disturbing vehicle cabling.

Features

- Smart Dock allows mounting and removal in seconds without affecting cabling
- Field-replaceable front panel for on-site touchscreen or keyboard servicing
- Mobility Edge platform with extended security update support
- Upgradable from Android 8 to Android 13
- Full backlit QWERTY keyboard for data-entry heavy workflows
- Integrated Li-Ion maintenance UPS rides through brief power interruptions
- Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, provisioning tools and Mobility SDKs supported
- Third-party MDM support for fleet management
- Compatible with the VM series of accessories

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 2.2 GHz Qualcomm Snapdragon 660 octa-core
- Memory: 4GB RAM, 32GB flash
- Operating system: Android with GMS, upgradable from Android 8 to Android 13
- Display: 8-inch WXGA (1280 x 768) LED backlit, 400 NIT indoor
- Touch panel: Indoor resistive, finger and standard stylus support
- Keyboard: Full 64-key backlit QWERTY with number pad and function keys
- Storage expansion: User-accessible microSD up to 512GB (SDXC/SDHC)
- Wireless: 802.11 a/b/g/n/ac 2x2 MU-MIMO Wi-Fi, Bluetooth 5.0 and BLE, NFC
- Antennas: 2x SMA connectors for external WLAN antennas
- Power input: 10 to 60V DC isolated with integrated Li-Ion maintenance UPS
- Sealing: IP66
- Vibration: MIL-STD-810F, shock SAE-J1455
- Operating temperature: -20 to +50 C
- Dimensions (computer): 268 x 214 x 43 mm, 2.1 kg
- Sensors: Ambient light, accelerometer, gyroscope, magnetometer

FAQs

Q: What touch panel and memory configuration does this VM1A SKU use?
A: This SKU is the indoor resistive touch model with 4GB RAM and 32GB flash, running Android with GMS and fitted for external antennas.

Q: What operating system does it run and can it be upgraded?
A: It ships with Android with GMS and is upgradable from Android 8 to Android 13.

Q: What power input does the VM1A accept?
A: It accepts a 10 to 60V DC isolated input. Optional external AC (90 to 240V AC) and extended-range DC (60 to 150V DC) converters are available for other power sources.

Q: Can the storage be expanded?
A: Yes. A user-accessible microSD slot supports cards up to 512GB (SDXC/SDHC).

Q: How rugged is the VM1A?
A: It is IP66 sealed, tested to MIL-STD-810F vibration and SAE-J1455 shock, and operates from -20 to +50 C.

Q: Can it be used in cold storage or outdoors?
A: This SKU is the indoor configuration with a 400 NIT display and resistive touch. Honeywell offers other VM1A options for 900 NIT outdoor displays and an integrated screen defroster for cold storage.
