Honeywell VM1A-L0N-1A1A20A | Thor VM1A 8in Industrial Tablet, Resistive, 4GB/32GB, GMS

Name: Honeywell VM1A-L0N-1A1A20A | Thor VM1A 8in Industrial Tablet, Resistive, 4GB/32GB, GMS
Brand: Honeywell
SKU: VM1A-L0N-1A1A20A
Price: 6856.3 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:VM1A-L0N-1A1A20A

Stock Status: Enquire

$6,856.30 inc. GST

$6,233.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

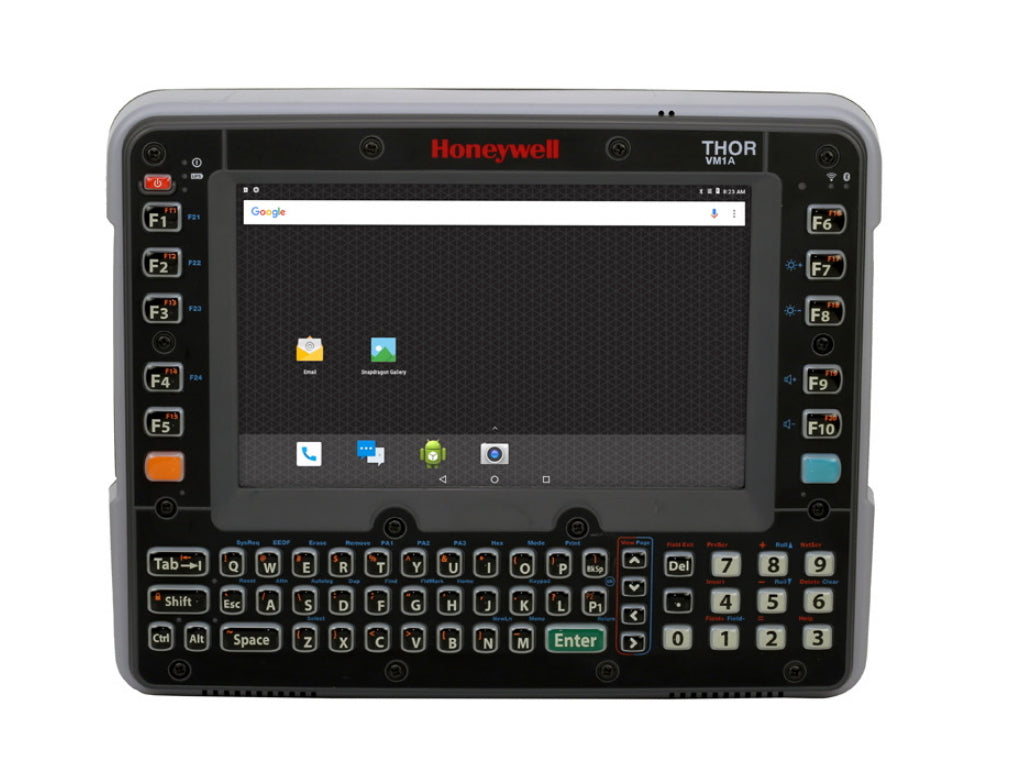

The Thor VM1A is an 8-inch rugged Android vehicle-mounted industrial tablet built on Honeywell's Mobility Edge platform for warehouses, ports, intermodal yards and manufacturing floors. This configuration pairs a 400 NIT indoor WXGA display with a resistive touch panel, 4GB RAM and 32GB flash, and ships with Android GMS, making it well suited to forklift and vehicle fleets that need gloved or stylus input and a built-in 64-key backlit QWERTY keyboard.

Powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor, the VM1A offers 802.11ac 2x2 MU-MIMO Wi-Fi, Bluetooth 5.0 and NFC, with IP66 sealing and an integrated Li-Ion maintenance UPS on a 10-60V DC input. The Smart Dock lets operators mount and remove the computer in seconds without disturbing vehicle cabling, and the platform supports upgrades through to Android 13 plus third-party MDM and Honeywell Mobility SDKs.

Features

- Built on the Mobility Edge platform for faster provisioning, application certification and deployment
- Upgradable from Android 8 to Android 13 with extended security update support
- Smart Dock allows mounting and removal in seconds without disturbing cabling
- Field-replaceable front panel reduces maintenance and spare-part costs
- Resistive touch panel suits glove and stylus use in demanding vehicle environments
- Integrated Li-Ion maintenance UPS keeps the unit running through brief power interruptions
- Full backlit QWERTY keyboard with mappable keys for data entry in low light
- Supports third-party MDM, Honeywell Mobility SDKs, Enterprise Browser and provisioning tools

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 2.2 GHz Qualcomm Snapdragon 660 octa-core
- Memory: 4 GB RAM, 32 GB Flash
- Storage expansion: user-accessible microSD up to 512 GB (SDXC/SDHC)
- Display: 8 in WXGA (1280 x 768) LED backlit, 400 NIT indoor
- Touch panel: industrial resistive, finger and standard stylus, supports swipe
- Operating system: Android 8 with Google Mobile Services, upgradable to Android 13
- Keypad: full 64-key backlit QWERTY with number pad and function keys
- Wireless: 802.11 a/b/g/n/ac 2x2 MU-MIMO, Bluetooth 5.0, NFC
- Antennas: dual internal, 2x SMA connectors for external WLAN antennas
- Sensors: ambient light, accelerometer, gyroscope, magnetometer
- Audio: integrated stereo speakers, microphone and headset audio
- Power: 10-60V DC isolated input with integrated Li-Ion maintenance UPS
- Sealing: IP66
- Operating temperature: -20°C to +50°C
- Vibration and shock: MIL-STD-810F, SAE-J1455
- Dimensions (computer): 268 x 214 x 43 mm, 2.1 kg

FAQs

Q: What touch panel and display does this VM1A configuration have?
A: This SKU has an 8-inch WXGA (1280 x 768) 400 NIT indoor display with an industrial resistive touch panel that works with a finger or standard stylus.

Q: Which operating system does it run?
A: It runs Android 8 with Google Mobile Services (GMS), and is upgradable to Android 13 with extended security update support.

Q: What memory and storage does it include?
A: It has 4GB RAM and 32GB flash, with a user-accessible microSD slot supporting cards up to 512GB.

Q: Can it be powered directly from a vehicle battery?
A: Yes. It accepts a 10-60V DC isolated input, and optional external converters are available for AC (90-240V) and extended DC (60-150V) supplies.

Q: Is it suitable for outdoor or dusty environments?
A: It is IP66 sealed and operates from -20°C to +50°C, and meets MIL-STD-810F vibration and SAE-J1455 shock standards. This configuration has a 400 NIT indoor display, so a 900 NIT outdoor display is a separate option.

Q: How is it mounted in a vehicle?
A: It uses the Smart Dock, which lets the computer be mounted and removed in seconds without disturbing cabling. The dock provides RS-232, USB, CAN-bus, headset, DC power and ignition control connections.
