Honeywell CK65-L0N-B8C214E | CK65 Mobile Computer, 4GB/32GB, Alphanumeric, 6803 Imager

Authorised Honeywell Partner

SKU:CK65-L0N-B8C214E

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

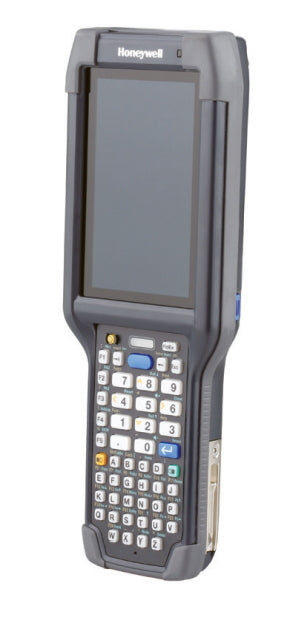

The Honeywell CK65-L0N-B8C214E is an ultra-rugged Android handheld mobile computer with a 4-inch 480 x 800 touchscreen, a 51-key alphanumeric keypad and a 6803 FlexRange 1D/2D imager. This 4GB RAM / 32GB flash configuration includes a 13 MP camera, Google Mobile Services (GMS), Standard Environment build and WW Mode, making it well suited to warehouse, logistics and field service data capture.

Built on Honeywell's Mobility Edge platform with a 2.2 GHz Qualcomm Snapdragon octa-core processor, the CK65 combines 802.11ac dual-band Wi-Fi, Bluetooth 5.0 and NFC with a 7,000 mAh smart battery. It is designed to survive 3 m drops to concrete and is sealed to IP65 and IP68, and the custom I/O connector is compatible with CK3 accessories.

Features

- Ultra-rugged design that survives multiple 3 m drops and repeated tumbles
- IP65 and IP68 sealing against dust and water
- Support for several Android generations, with Honeywell Sentinel security updates
- Alphanumeric keypad suits legacy applications and touch workflows
- 6803 FlexRange imager scans 1D/2D barcodes at short, mid and long range, including direct part marking
- Custom I/O connector compatible with CK3 accessories
- Supports PTT, VoIP and Bluetooth headsets
- Built on the Mobility Edge platform for faster provisioning and lower TCO

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 2.2 GHz Qualcomm 64-bit Snapdragon octa-core
- Memory: 4GB RAM / 32GB Flash (DDR4)
- Display: 4 in (10.16 cm) 480 x 800 colour LCD, Corning Gorilla Glass 5, multi-touch capacitive
- Keypad: 51-key alphanumeric
- Scanner: Honeywell 6803 FlexRange (N6803) 1D/2D imager
- Camera: 13 MP autofocus colour camera with flash LED
- Weight: 498 g (17.6 oz) with battery
- Battery: 7,000 mAh Li-Ion smart battery, up to 28 hours of operation
- WLAN: 802.11 a/b/g/n/ac, 2x2 MIMO
- Bluetooth: 5.0 with BLE
- NFC: integrated
- Storage expansion: microSD up to 512 GB (SDXC/SDHC)
- Durability: 3 m (10 ft) drops to concrete, IP65 and IP68 sealing
- Operating system: Android with Google Mobile Services (GMS)

FAQs

Q: What keypad and scanner does the CK65-L0N-B8C214E have?
A: This configuration has a 51-key alphanumeric keypad and a Honeywell 6803 FlexRange 1D/2D imager, along with a 13 MP autofocus camera.

Q: How much memory and storage does it have?
A: It has 4GB of RAM and 32GB of flash storage, expandable with a microSD card up to 512 GB.

Q: Is it suitable for harsh environments?
A: Yes. The CK65 is rated for 3 m drops to concrete and is sealed to IP65 and IP68 against dust and water ingress.

Q: Does it run Google Mobile Services?
A: Yes. This SKU runs Android with Google Mobile Services (GMS) and is a Standard Environment build in WW Mode.

Q: Which wireless standards are supported?
A: It supports 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO, Bluetooth 5.0 with BLE, and integrated NFC.

Q: Are CK3 accessories compatible?
A: The CK65 uses a custom I/O connector that is compatible with CK3 accessories, which helps preserve existing accessory investment.
