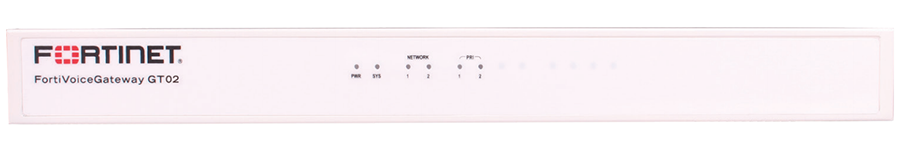

• Fortinet FortiVoice Gateway GT02 FVG-GT02 white device with ports and lights
1 1

Fortinet

Fortinet FVG-GT02 | FortiVoice Gateway GT02 Voice Gateway, 2x PRI (T1/E1)

Fortinet FVG-GT02 | FortiVoice Gateway GT02 Voice Gateway, 2x PRI (T1/E1)

Authorised Fortinet Partner

FVG-GT02

Stock Status: Enquire

$4,543.99 inc. GST
$4,130.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiVoice Gateway GT02 is a 1U rack-mount voice gateway with 2 x PRI (T1/E1) ports and dual 10/100/1000 network ports. It is designed to work with FortiVoice Enterprise phone systems (FVE-100E and larger), adding PRI trunk capacity so businesses can connect their telephony to the PSTN while managing everything centrally through the FortiVoice web interface.

The gateway supports PRI T1, PRI E1 and R2 protocols in single and dual port configurations, SRTP encrypted audio, SIP over TLS and T.38 fax over IP. Caller ID is supported in Bellcore, ETSI and DTMF formats. Its stackable design lets you add further gateways as call volumes grow, and it can be installed locally or remotely for on-premises or centralised deployments.

Features

- Compact design that allows additional devices to be connected on the network
- Dual LANs keep devices available if one network connection goes down
- Simple, centralised configuration through FortiVoice web management
- SRTP call encryption for secure audio
- Supports PRI T1, PRI E1 and R2 protocols in single and dual port configurations
- Caller ID support for Bellcore, ETSI and DTMF
- T.38 fax over IP
- Stackable design lets you add gateways as you grow
- Can be installed locally or remotely for on-premises or centralised deployments

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x PRI (T1/E1) ports
- 2 x 10/100/1000 RJ45 network ports
- 2 x USB ports
- 1 x Console port
- No analog FXS extensions or FXO telephone lines
- 1U rack-mount form factor
- Dimensions (H x W x D): 1.75 x 17 x 9.25 inches
- Weight: 4.5 kg (10 lbs)
- Protocols: PRI T1, PRI E1 and R2 in single and dual port configurations
- Security: SRTP encrypted audio, SIP over TLS
- T.38 fax over IP
- Caller ID: Bellcore, ETSI and DTMF
- Management: web interface and command line interface
- Compatible with FortiVoice Enterprise systems, FVE-100E and larger

FAQs

Q: What phone systems is the FVG-GT02 compatible with?
A: It works with FortiVoice Enterprise systems, FVE-100E and larger, where it adds PRI trunk capacity.

Q: How many PRI ports does the FortiVoice Gateway GT02 have?
A: It has 2 x PRI (T1/E1) ports, and supports PRI T1, PRI E1 and R2 protocols in single and dual port configurations.

Q: Does the GT02 support analog phones or traditional phone lines?
A: No. It has no FXS analog extension ports and no FXO telephone line ports. It is a PRI-only gateway.

Q: What network connectivity does it provide?
A: It has 2 x 10/100/1000 RJ45 network ports. The dual LANs keep devices available if one network connection goes down.

Q: Does it support encrypted calls and fax?
A: Yes. It supports SRTP encrypted audio, SIP over TLS and T.38 fax over IP.

Q: Can I add more gateways as my business grows?
A: Yes. The stackable design lets you add gateways as you grow, and units can be installed locally or remotely.
