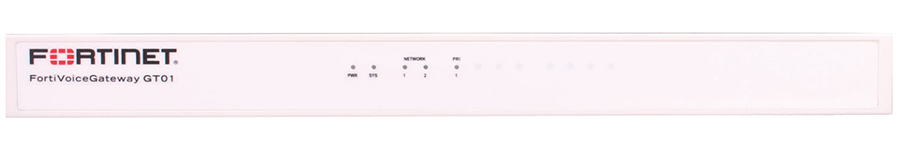

• White Fortinet FortiVoice Gateway GT01 with 2x1GbE ports and PRI T1/E1
1 1

Fortinet

Fortinet FVG-GT01 | FortiVoice Gateway GT01 Voice Gateway, 1x PRI T1/E1

Fortinet FVG-GT01 | FortiVoice Gateway GT01 Voice Gateway, 1x PRI T1/E1

Authorised Fortinet Partner

FVG-GT01

Stock Status: Enquire

$3,786.41 inc. GST
$3,442.19 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiVoice Gateway GT01 is a rack-mountable 1U digital voice gateway that adds a single PRI (T1/E1) trunk to a FortiVoice phone system. It is designed to work with FortiVoice Enterprise systems (FVE-100E and larger) and provides dual 10/100/1000 Ethernet ports for network connectivity and redundancy.

Configuration is handled centrally through FortiVoice web management. The gateway supports PRI T1, PRI E1 and R2 protocols, T.38 fax over IP and common Caller ID formats, with SRTP, TLS and SNMP security options. Its compact design allows additional gateways to be added to the network as trunk requirements grow.

Features

- Adds a PRI (T1/E1) trunk to a FortiVoice phone system
- Dual LAN connections provide network redundancy
- Simplified, centralised configuration through FortiVoice web management
- SRTP call encryption
- Supports PRI T1, PRI E1 and R2 protocols
- Supports Bellcore, ETSI and DTMF Caller ID formats
- Supports T.38 fax over IP
- Compact design allows additional gateways to be added to the network

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x PRI (T1/E1) port
- 2 x 10/100/1000 RJ-45 Ethernet ports
- 1 x RJ-45 console port (RS-232 serial)
- 2 x USB ports (1 x USB 2.0, 1 x USB 3.0, Type-A)
- No FXS analog extension or FXO telephone line ports
- Voice codecs: G.711 A-law, G.711 u-law, G.722, G.726, G.729A
- IEEE 802.1Q support and QoS
- Security: TLS, SNMP, SRTP
- 1U rack-mount form factor
- Dimensions: 44.4 mm H x 431.8 mm W x 234.9 mm D
- Weight: 4.5 kg
- Power input: 100-240V AC, 50-60Hz, 1.5A
- Ambient operating temperature: 0 to 40 C
- Included cables: AC power, LAN (RJ-45)

FAQs

Q: What phone system does the FVG-GT01 work with?
A: It works with a FortiVoice phone system, specifically FortiVoice Enterprise models FVE-100E and larger, to add a PRI (T1/E1) trunk.

Q: How many PRI ports does the GT01 provide?
A: The GT01 provides one PRI (T1/E1) port. It supports PRI T1, PRI E1 and R2 protocols.

Q: Does the GT01 include analog FXS or FXO ports?
A: No. It has no analog extension (FXS) or telephone line (FXO) ports. It is a digital PRI gateway only.

Q: How is the gateway configured and managed?
A: Configuration is done centrally through FortiVoice web management. A console port (RJ-45, RS-232) is also provided.

Q: What network connectivity does it offer?
A: It has two 10/100/1000 RJ-45 Ethernet ports, and the dual LAN connections provide network redundancy.

Q: Is it rack-mountable and what is included?
A: Yes, it is a 1U rack-mount unit measuring 431.8 mm wide. The AC power cable and an RJ-45 LAN cable are included.
