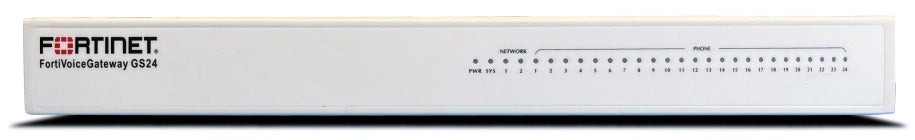

Fortinet FVG-GS24 | FortiVoice Gateway 24-Port FXS Analog Gateway, RJ-21, 1U

Fortinet FVG-GS24 | FortiVoice Gateway 24-Port FXS Analog Gateway, RJ-21, 1U

Authorised Fortinet Partner

FVG-GS24

Stock Status: Enquire

$3,634.89 inc. GST
$3,304.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FVG-GS24 is a FortiVoice Gateway FXS analog voice gateway that adds 24 analog extensions to a FortiVoice phone system through a single RJ-21 connector. Built in a 1U rack-mount chassis, it suits offices that need to keep analog phones, fax machines and other legacy devices running alongside an IP telephony deployment. Dual 10/100 network ports provide connection resilience.

The gateway is managed centrally through the FortiVoice web interface and supports Voice QoS, 802.1Q VLAN, SIP over TLS, SRTP encryption, SNMP and fax over VoIP with T.38. It is supported on FortiVoice Enterprise systems FVE-100E and larger, and its stackable design lets you add more gateways locally or remotely as extension requirements grow.

Features

- Adds 24 analog extensions to a FortiVoice phone system
- Supported on FortiVoice Enterprise systems FVE-100E and larger
- Dual LAN connections for resilience if one connection goes down
- Standard RJ-11 connections for analog devices via the RJ-21 interface
- Simplified, centralised configuration through FortiVoice web management
- SRTP encrypts calls for secure audio
- Fax over VoIP with T.38 support
- Voice QoS, 802.1Q VLAN, SIP over TLS and SNMP support
- Stackable design allows more gateways to be added locally or remotely

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x Analog Extension (FXS) ports
- 1 x RJ-21 interface for FXS 1 to 24
- 2 x 10/100 RJ45 network ports
- 1 x USB port
- 1 x Console port
- Nominal loop current: 30mA
- Interface wire impedance: 600 ohm / 900 ohm (TBR21, AU, NZ, UK)
- Codecs: G.711 u-law/A-law, G.729a, G.722, G.726
- DTMF: Inband, RFC2883, SIP info
- Form factor: Rack mount (1U)
- Operating power: 50W
- Maximum operating temperature: 50°C
- Dimensions (H x W x L): 44.4 x 234.9 x 431.8 mm
- Weight: 4.5 kg

FAQs

Q: How many analog devices can the FVG-GS24 connect?
A: It provides 24 FXS analog extension ports, delivered through a single RJ-21 interface, for analog phones, fax machines and similar devices.

Q: Which FortiVoice systems is the FVG-GS24 compatible with?
A: It is supported on FortiVoice Enterprise systems FVE-100E and larger, where it expands the system with additional analog extensions.

Q: Does the gateway support fax?
A: Yes. It supports fax over VoIP with T.38.

Q: How is the FVG-GS24 managed?
A: Configuration is handled centrally through the FortiVoice web interface, and SNMP is also supported.

Q: Can I add more gateways as extension needs grow?
A: Yes. The stackable design allows as many gateways as needed to be installed, either locally or remotely.

Q: Does the FVG-GS24 have FXO or PRI ports for connecting to the phone network?
A: No. This model provides FXS analog extension ports only, with no FXO or PRI (T1/E1) interfaces.
