Fortinet

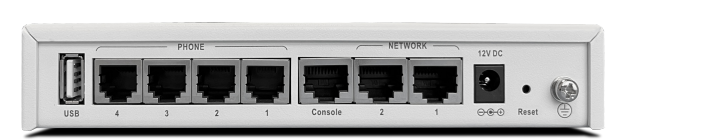

Fortinet FVG-GS04 | FortiVoice Gateway GS04 Analog Voice Gateway, 4x FXS

Fortinet FVG-GS04 | FortiVoice Gateway GS04 Analog Voice Gateway, 4x FXS

Authorised Fortinet Partner

FVG-GS04

Stock Status: Enquire

$1,362.14 inc. GST
$1,238.31 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiVoice Gateway GS04 is a compact desktop analog voice gateway with 4 x FXS (RJ-11) ports, designed to add analog extensions to a FortiVoice phone system. It suits offices that need to keep analog handsets, fax machines or door phones running alongside IP telephony, with two 10/100 Ethernet ports for network connectivity and redundancy.

The gateway is configured centrally through FortiVoice web management, simplifying deployment and ongoing administration. It supports SRTP encryption of calls for secure audio, and standard RJ-11 connections make it quick to plug in lines and cables. Console and USB ports are included for local access.

Features

- Compact desktop design for easy deployment
- Dual LAN connections for network redundancy
- Standard RJ-11 connections for simple plug-in of lines and cables
- Centralised configuration through FortiVoice web management
- SRTP encryption of calls for secure audio
- Works with a FortiVoice phone system to expand its resources

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x FXS (RJ-11) analog extension ports
- No FXO or PRI (T1/E1) interfaces
- 2 x 10/100 RJ-45 network ports
- 1 x USB port
- 1 x Console port
- Desktop form factor
- Dimensions (H x W x L): 1.13 x 4.52 x 6.7 in
- Ethernet technology: Fast Ethernet, 10/100Base-T

FAQs

Q: How many analog devices can the FVG-GS04 connect?
A: It provides 4 x FXS (RJ-11) ports, so it can connect up to four analog devices such as handsets or fax machines.

Q: Does the FVG-GS04 support traditional phone lines?
A: No. It has FXS analog extension ports only and does not include FXO or PRI (T1/E1) interfaces.

Q: How is the FVG-GS04 managed?
A: It is configured centrally through FortiVoice web management, and it also has a console port for local access.

Q: What network connections does it have?
A: It has 2 x 10/100 RJ-45 Ethernet ports, which provide dual LAN connectivity for network redundancy.

Q: Can calls through the gateway be encrypted?
A: Yes. It supports SRTP encryption of calls for secure audio.

Q: What is the form factor of the FVG-GS04?
A: It is a compact desktop unit measuring 1.13 x 4.52 x 6.7 in (H x W x L).
