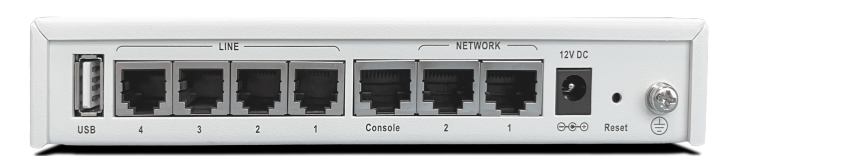

• Back of Fortinet FVG-GO04 white plastic switch with Ethernet ports, USB, 12V DC
1 1

Fortinet

Fortinet FVG-GO04 | FortiVoice Gateway GO04 Voice Gateway, 4x FXO, 2x 10/100

Fortinet FVG-GO04 | FortiVoice Gateway GO04 Voice Gateway, 4x FXO, 2x 10/100

Authorised Fortinet Partner

FVG-GO04

Stock Status: Enquire

$1,816.69 inc. GST
$1,651.54 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiVoice Gateway GO04 is a compact desktop FXO voice gateway that connects four traditional PSTN telephone lines to a FortiVoice Enterprise phone system. With 4x FXO ports and 2x 10/100 RJ45 network ports, it bridges analogue telephone lines into an IP telephony deployment through simple RJ-11 cabling.

The GO04 is managed centrally through FortiVoice web management, with SRTP, SIP over TLS, 802.1Q VLAN and T.38 fax over IP support. It is supported on FortiVoice Enterprise systems FVE-100E and larger, and multiple gateways can be stacked to add more lines as needed.

Features

- Compact desktop design
- Dual LAN connections for network redundancy
- Standard RJ-11 connections for easy cabling
- Simplified, centralised configuration via FortiVoice web management
- SRTP encrypts calls
- FXO supports standard incoming PSTN lines with regional and country dial plans
- Caller ID support for Bellcore, ETSI and DTMF formats
- T.38 fax over IP
- Stackable: add as many gateways as needed
- Supported on FortiVoice Enterprise systems FVE-100E and larger

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x traditional telephone lines (FXO)
- No analogue extensions (FXS) and no PRI (T1/E1)
- 2 x 10/100 RJ45 network ports
- 1 x USB port
- 1 x console port
- Desktop form factor
- Operating power: 4 W
- Voice codecs: G.711 u-law/A-law, G.729a, G.722, G.726
- DTMF: inband, RFC2883, SIP info
- Supports SRTP, SIP over TLS, 802.1Q VLAN, T.38 and voice QoS
- Management: web interface, command line interface and SNMP
- Maximum operating temperature: 50°C
- Dimensions (H x W x L): 35 x 115 x 170 mm
- Weight: 0.7 kg
- Compliance: FCC Part 15 Subpart B Class B, ICES-003 Issue 7 Class B

FAQs

Q: How many PSTN lines does the FortiVoice Gateway GO04 support?
A: The GO04 provides 4 x FXO ports, allowing four traditional PSTN telephone lines to connect to a FortiVoice Enterprise phone system.

Q: Does the GO04 provide analogue extension (FXS) ports?
A: No. The GO04 is an FXO-only gateway with 4 x FXO ports and no FXS or PRI interfaces.

Q: Which FortiVoice systems is the GO04 compatible with?
A: It is supported on FortiVoice Enterprise systems FVE-100E and larger.

Q: Can I add more lines if I need more than four?
A: Yes. The gateways are stackable, so additional gateways can be added as required.

Q: Does the GO04 support fax?
A: Yes. It supports fax over VoIP using T.38.

Q: How is the GO04 managed?
A: It is configured and managed centrally through FortiVoice web management, and also offers a command line interface and SNMP.
