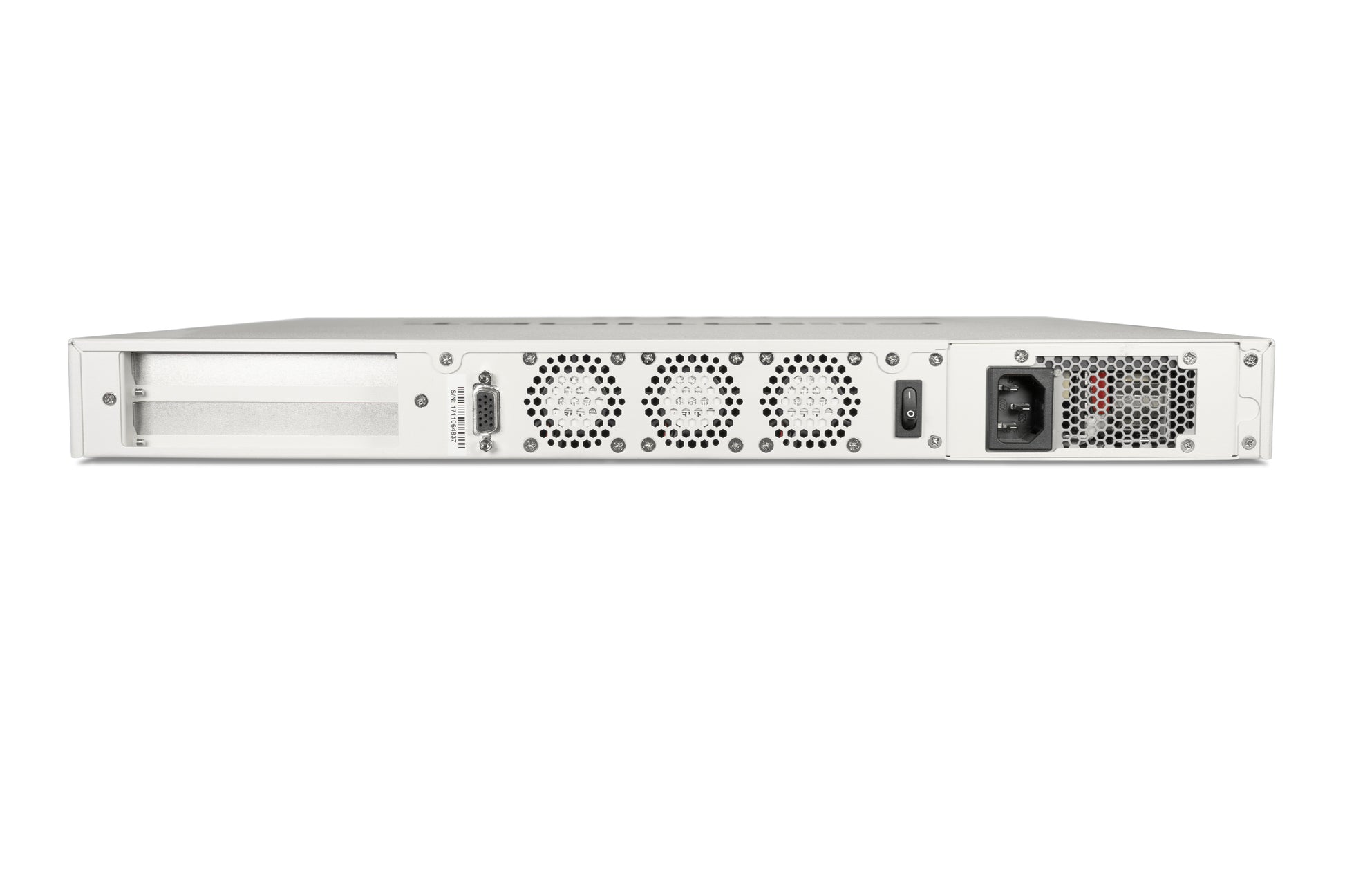

• Back of Fortinet FortiVoice-500F server rack with ventilation grilles

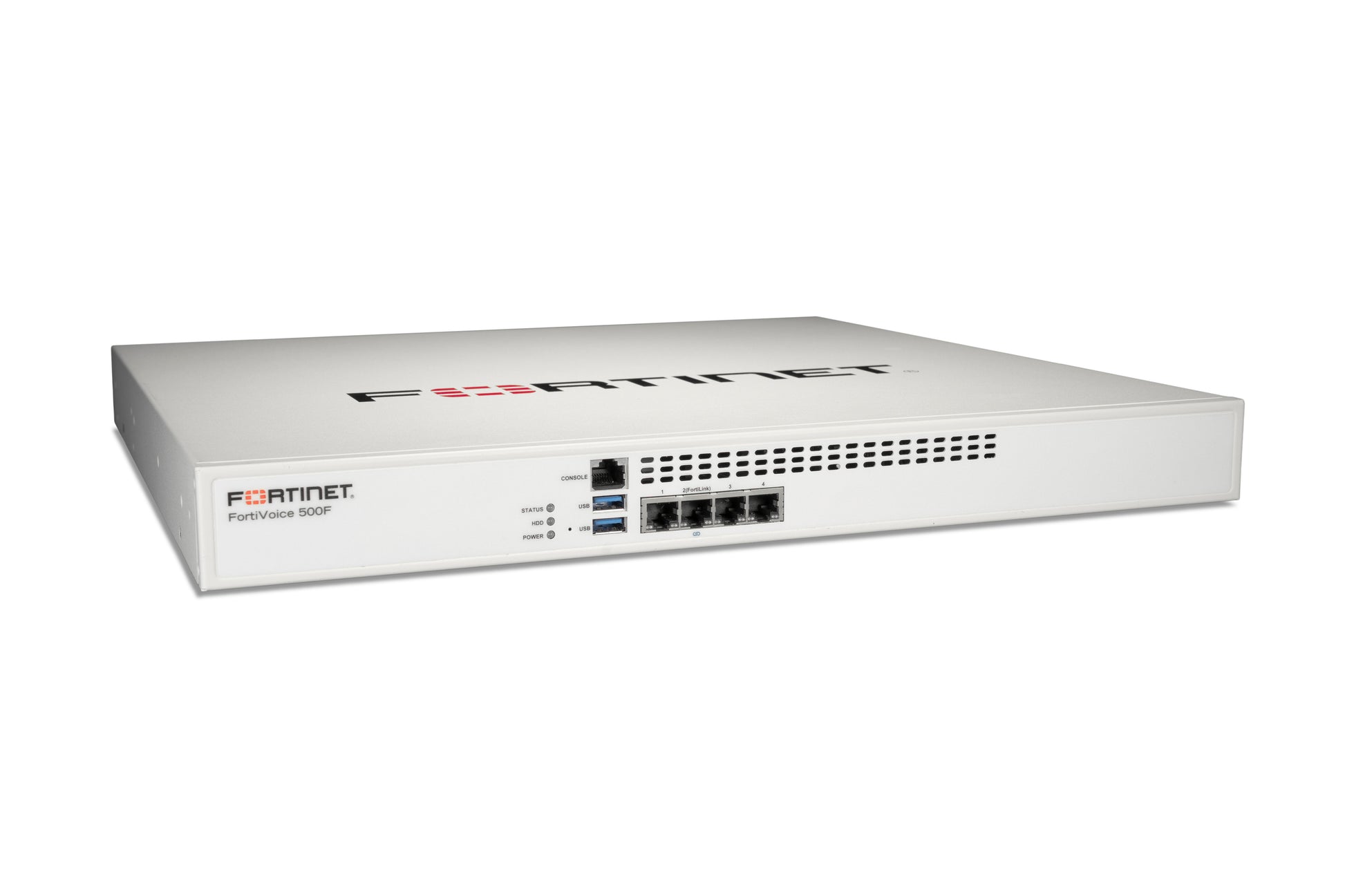

  • White Fortinet FortiVoice 500F with 4x 1GbE ports front view

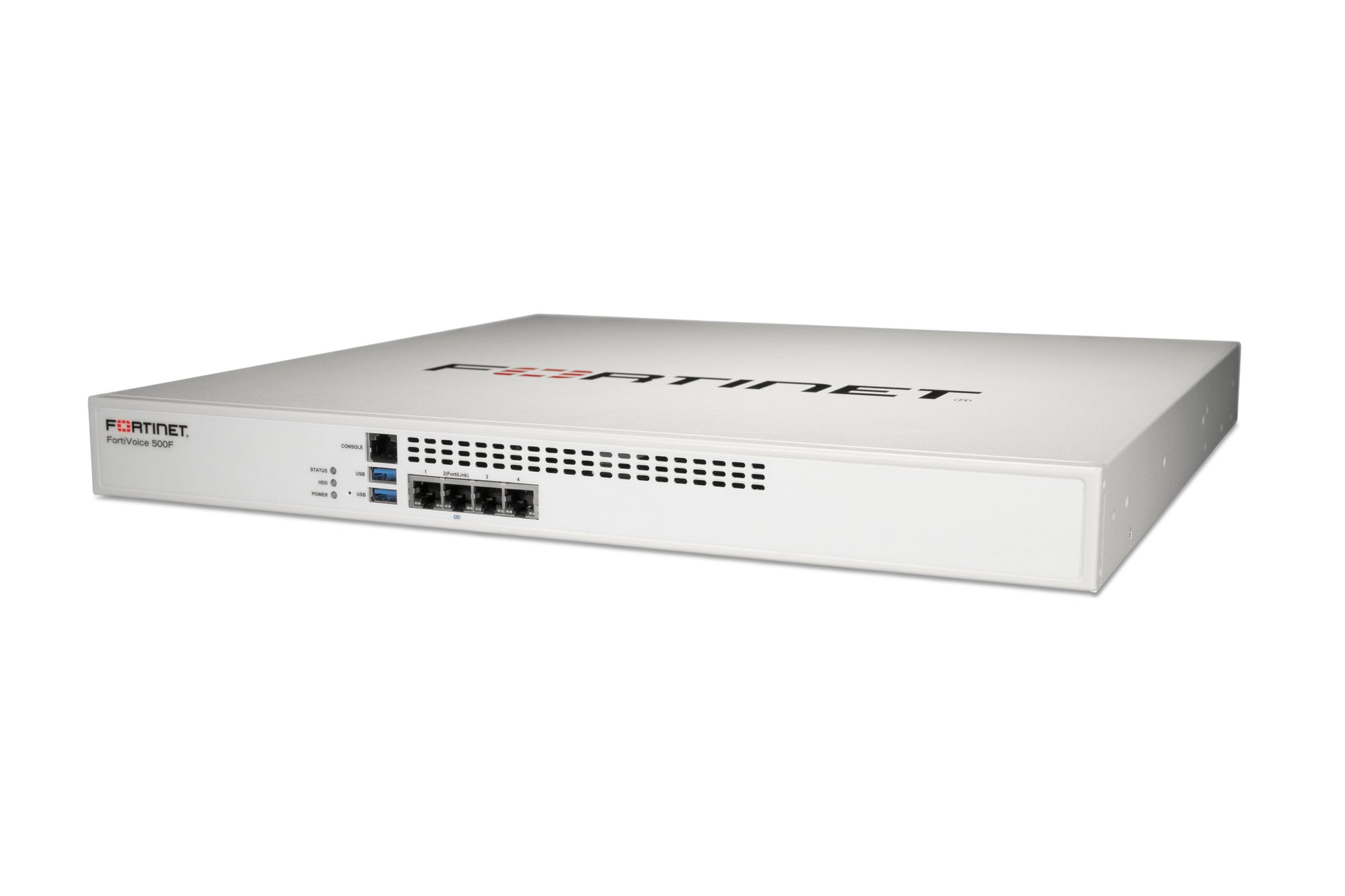

  • White Fortinet FortiVoice-500F FVE-500F with 4x 1GbE ports front view

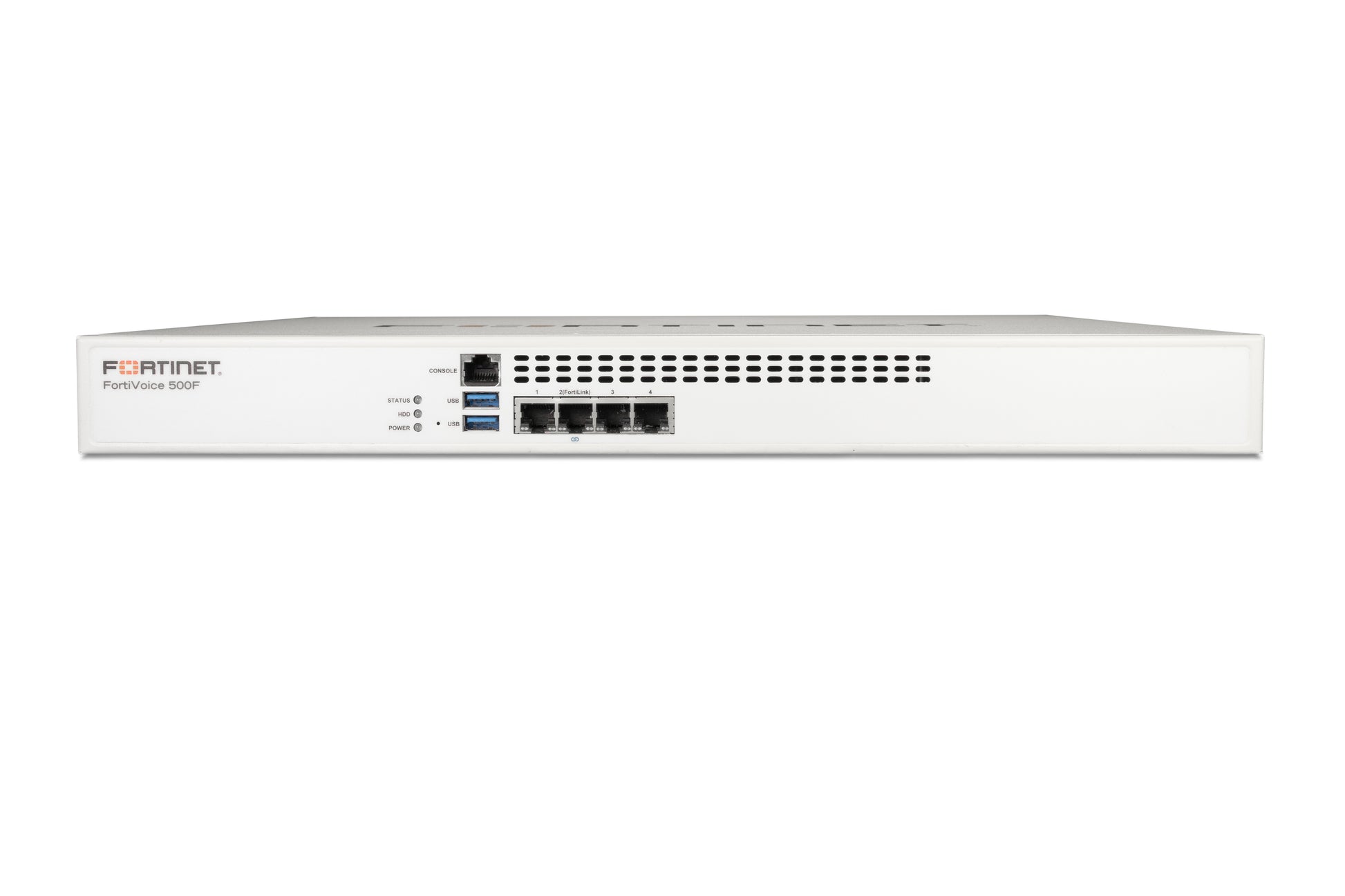

  • White Fortinet FortiGate-60D firewall with front ports, sleek design
1 4

Fortinet

Fortinet FVE-500F | FortiVoice 500F IP PBX, 500 Endpoints, 50 Trunks, 1TB

Fortinet FVE-500F | FortiVoice 500F IP PBX, 500 Endpoints, 50 Trunks, 1TB

Authorised Fortinet Partner

FVE-500F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiVoice 500F is a 1U rack-mount IP PBX phone system appliance for mid-sized organisations, supporting up to 500 endpoints and 50 VoIP trunks. It provides four 10/100/1000 RJ45 network ports, 1 TB of onboard storage and capacity for 75 concurrent calls, with Call Center and Hotel licences supported for specialised deployments.

Enterprise communication features such as auto attendants, ring groups, call queues, call barge and multi-location integration are built in with no additional licences or cards to install. Centralised management, a mobile soft client, integrated conferencing and fax, and high availability support make it suited to organisations consolidating voice onto a single platform.

Features

- Enterprise-class features built in, including auto attendants, auto-provisioning, ring groups, call queue, call barge and multi-location integration
- Centralised management console with call reports
- Mobile soft client for remote and roaming users
- Integrated voice, conferencing and fax
- High availability (HA), NAS, 802.1Q VLAN, SNMP and DHCP server support
- Advanced management with CLI, role-based management, scheduled backup, SMDR, remote logging and user portal
- Hotel/property management and call center available as licensed features
- Local survivability when used with FortiVoice Gateway

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 10/100/1000 RJ45 network ports
- 1 x 1 TB storage
- Up to 500 endpoints/extensions
- 50 VoIP trunks
- 75 concurrent calls
- 50 auto attendants
- 20 conference bridges with 20 attendees each
- Maximum 55 call center agents
- Audio codecs: G.711 u-law/A-law, G.729a, G.722, Opus
- Video codecs: H.263, H.264
- 1U rack mount with single power supply
- Dimensions (H x W x L): 44 x 432 x 270 mm
- Weight: 4.54 kg
- No PRI, FXO or FXS ports
- Call Center and Hotel licences supported

FAQs

Q: How many endpoints and trunks does the FortiVoice 500F support?
A: The FVE-500F supports up to 500 endpoints/extensions and 50 VoIP trunks, with capacity for 75 concurrent calls.

Q: Does the FVE-500F have analog or PRI ports?
A: No. It has no PRI, FXO or FXS ports. It has four 10/100/1000 RJ45 network ports, so analog or PSTN connectivity requires a separate FortiVoice Gateway.

Q: Can the FVE-500F be used for a call centre or hotel?
A: Yes. Call Center and Hotel licences are supported as licensed add-on features. The call center function supports a maximum of 55 agents.

Q: Does it support high availability?
A: Yes. The FortiVoice 500F supports high availability (HA), along with NAS, 802.1Q VLAN, SNMP and DHCP server functions.

Q: What storage and form factor does the appliance use?
A: It includes 1 TB of storage without RAID and is a 1U rack-mount unit with a single power supply.

Q: Which codecs does the FVE-500F support?
A: Audio codecs are G.711 u-law/A-law, G.729a, G.722 and Opus. Video codecs are H.263 and H.264.
