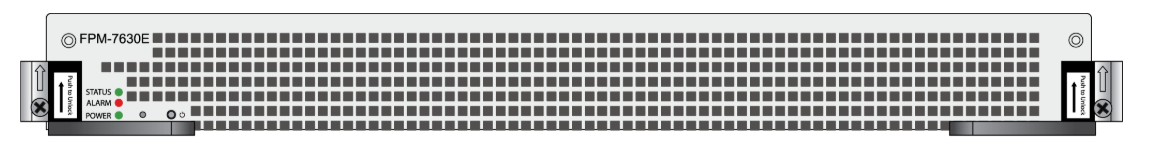

• Fortinet FPM-7630E 7000E series hot swappable processing module front panel
1 1

Fortinet

Fortinet FPM-7630E | FortiGate 7000E Processing Module, 4x NP6, 8x CP9

Fortinet FPM-7630E | FortiGate 7000E Processing Module, 4x NP6, 8x CP9

Authorised Fortinet Partner

FPM-7630E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FPM-7630E is a hot swappable FortiGate 7000E series processing module with a dual CPU configuration, four NP6 network processors and eight CP9 content processors. It is the newer-CPU update of the FPM-7620E and acts as a high-performance worker module, processing sessions load-balanced to it by the FIM interface modules over the chassis fabric backplane.

The module connects to the chassis through 2 x 80Gbps fabric backplane links and 2 x 1Gbps base backplane links, and installs in slots 3 and up of any FortiGate-7000 series chassis. It can be mixed with FPM-7620E modules in the same chassis, although HA clusters require identical FPMs in the same slots.

Features

- Hot swappable module design for in-service replacement and expansion
- Hardware-accelerated traffic via four NP6 processors, fast-path accelerated through the FIM switch fabric
- Content processing acceleration via eight CP9 processors
- NP6 processors can also offload IPsec VPN encryption and decryption
- Can be mixed with FPM-7620E modules in the same chassis
- Front-panel STATUS, ALARM and POWER LEDs

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Hot swappable processing module
- Dual CPU configuration
- Network processors: 4 x NP6
- Content processors: 8 x CP9
- Chassis fabric backplane connections: 2 x 80Gbps
- Base backplane connections: 2 x 1Gbps
- Installs in slots 3 and up of any FortiGate-7000 series chassis
- Power consumption: max 440W, average 340W
- Max current: 37A
- Heat dissipation: 1512 BTU/h
- Dimensions (H x W x L): 43 x 435 x 470 mm
- Weight: 6.4 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -35 to 70 C
- Relative humidity: 20% to 90% (non-condensing)

FAQs

Q: Which chassis does the FPM-7630E install in?
A: It installs in slots 3 and up of any FortiGate-7000 series chassis.

Q: How does the FPM-7630E differ from the FPM-7620E?
A: The FPM-7630E is the newer-CPU update of the FPM-7620E. It uses a dual CPU configuration with 4 x NP6 network processors and 8 x CP9 content processors.

Q: Can I mix FPM-7630E and FPM-7620E modules in one chassis?
A: Yes, they can be mixed in the same chassis. In HA clusters, the FPMs must be identical and installed in the same slots.

Q: How does the module connect to the chassis?
A: It has 2 x 80Gbps connections to the chassis fabric backplane and 2 x 1Gbps connections to the base backplane.

Q: What is the maximum power consumption?
A: The module draws a maximum of 440W, with an average of 340W and a maximum current of 37A.

Q: Is the FPM-7630E hot swappable?
A: Yes, it is a hot swappable processing module.
