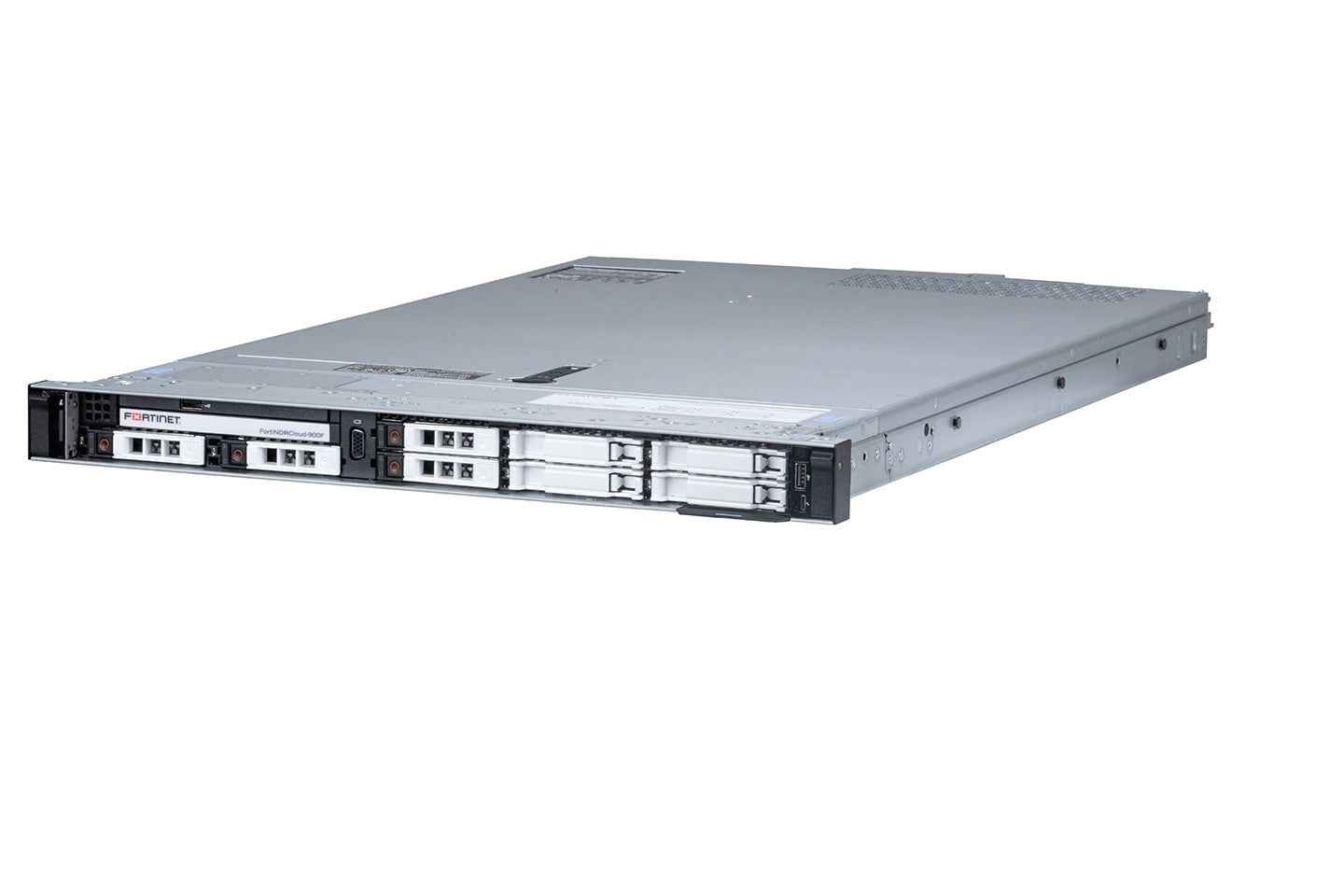

• Fortinet FNRC-900F 1U rack-mount server with silver finish and drive bays

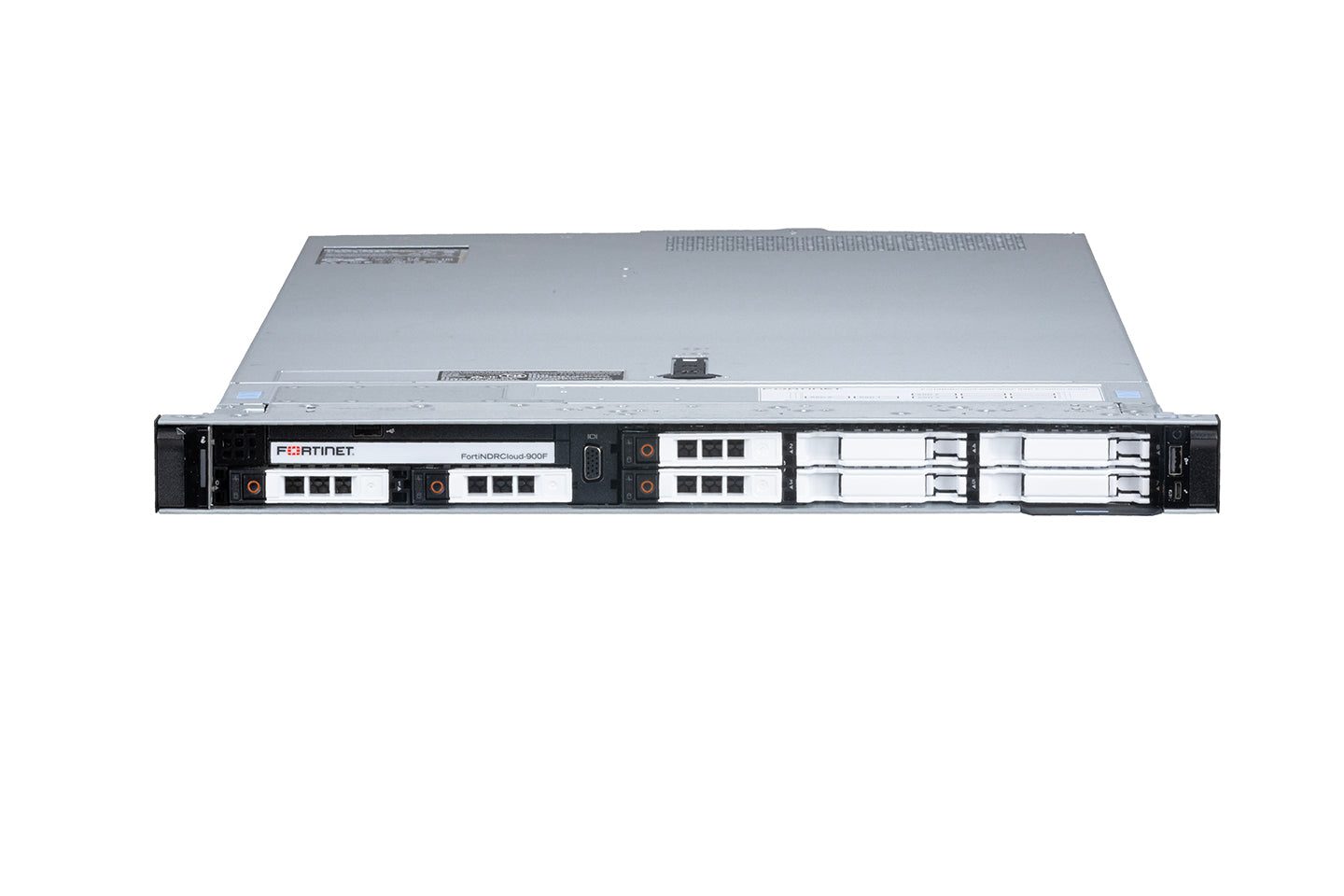

  • Fortinet FNRC-900F 1U rack server with silver Dell PowerEdge C630 chassis

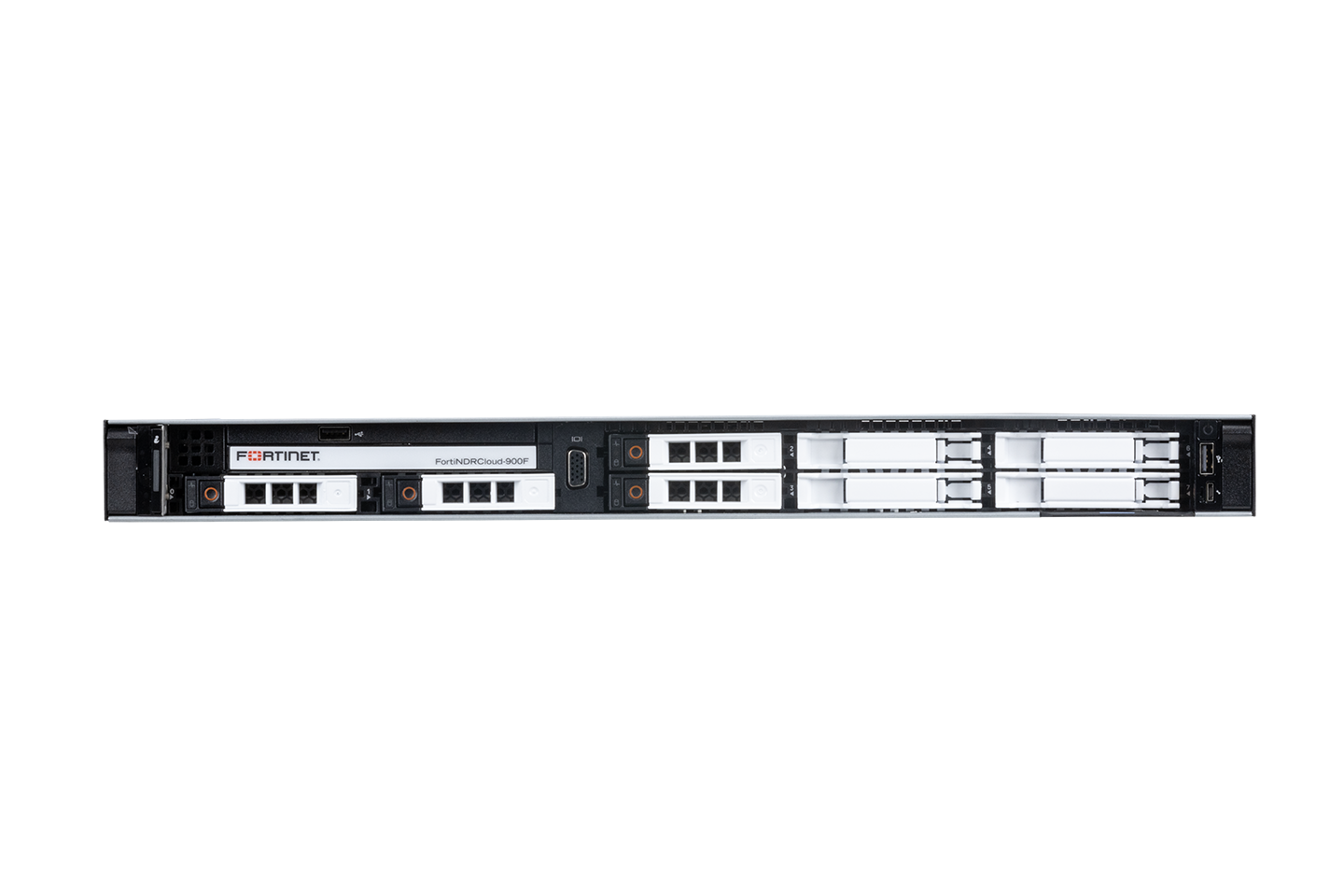

  • Fortinet FNRC-900F FortiNDRCloud 900F sensor rear with F5 BIG-IP LTM ports

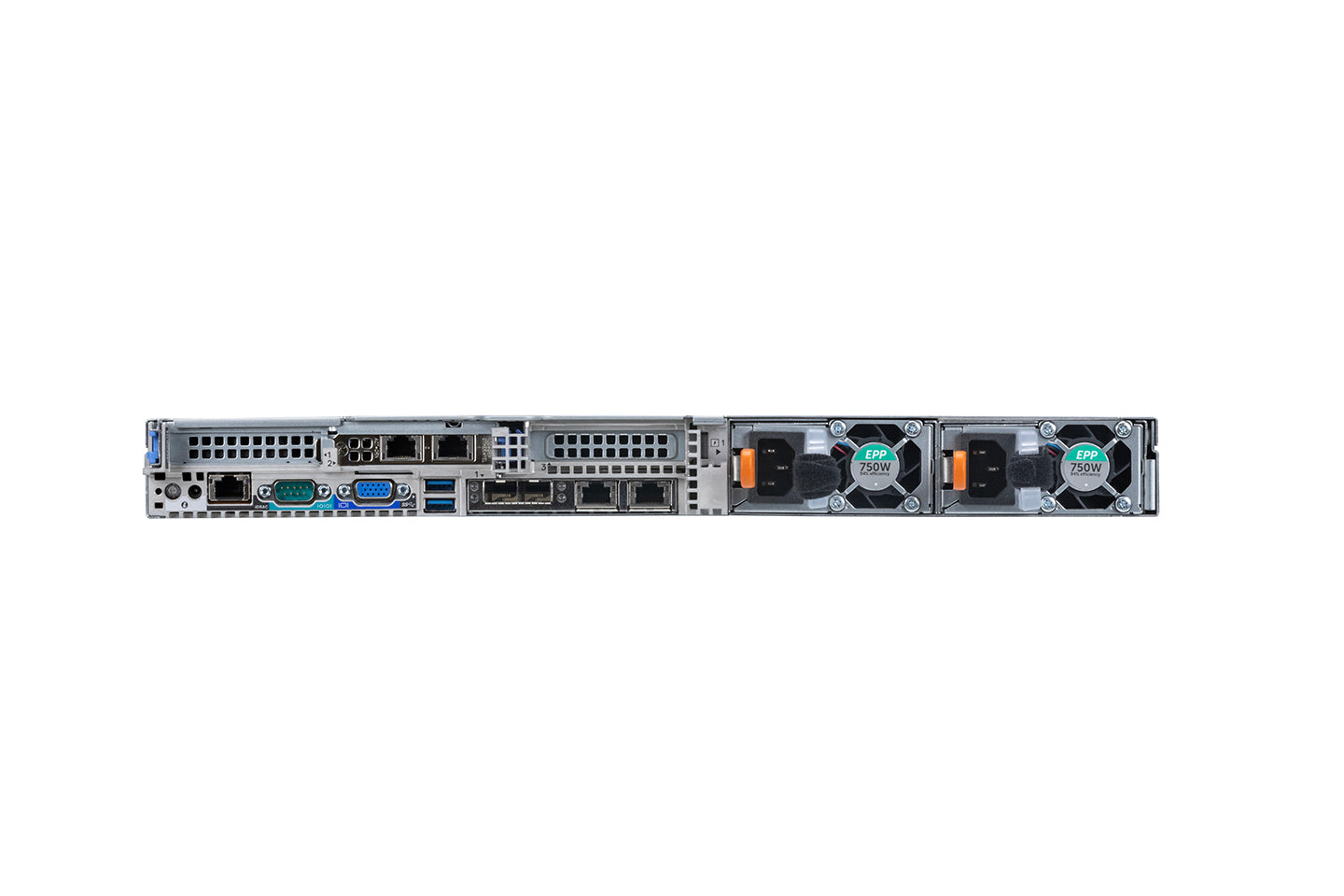

  • Fortinet FNRC-900F 1U server rack with silver chassis, copper ports, fiber SFP+ and cooling fans
1 4

Fortinet

Fortinet FNRC-900F | FortiNDR Cloud 900F Large NDR Sensor, 1U, 2x SFP+

Fortinet FNRC-900F | FortiNDR Cloud 900F Large NDR Sensor, 1U, 2x SFP+

Authorised Fortinet Partner

FNRC-900F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FNRC-900F is a large 1U hardware NDR sensor for FortiNDR Cloud, built to capture network traffic from a SPAN port or TAP device and deliver metadata to the FortiNDR Cloud SaaS platform. With 13 Gbps of NDR sniffer throughput, 2x copper and 2x SFP+ fibre monitoring ports, and 4x 10G multimode SFP+ transceivers included, it suits larger network segments where SOC teams need AI-driven breach detection.

This is the large-sensor tier above the FortiNDR Cloud 500F small sensor, supplied as hardware only. It is formerly known as ThreatINSIGHT infrastructure, and support must be purchased separately. The rack-mountable chassis includes dedicated 1GbE management and monitoring interfaces, plus a DB9 console port.

Features

- Delivers network data to the FortiNDR Cloud SaaS platform (formerly ThreatINSIGHT)
- Ingests traffic from a SPAN port or TAP device
- AI-driven breach detection for SOC teams
- Large-sensor tier above the FortiNDR Cloud 500F small sensor
- Mix of copper and SFP+ fibre monitoring ports for flexible deployment
- Includes 4x 10G multimode SFP+ transceivers

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack-mountable large sensor
- Interfaces: 2x 1G copper, 2x 10G copper, 2x 10G SFP+ (fibre)
- Monitoring and management: 1x 1GbE management, 1x 1GbE monitoring, 2x 10GbE copper monitoring, 2x 10G SFP+ monitoring
- NDR sniffer throughput: 13 Gbps (metadata processing) across all ports
- Includes 4x 10G multimode SFP+ transceivers
- Console: 1x DB9
- Dimensions (H x W x D): 42.8 mm x 434 mm x 743.91 mm (without bezel)
- Weight: 25.9 kg
- Heat dissipation: 2891 BTU/h
- Operating temperature: 10°C to 35°C, no direct sunlight
- Operating altitude: up to 3048 m
- Operating humidity: 10-80% RH
- Compliance: FCC, ISED, RCM, VCCI, BSMI Class A, UL/cUL, CB
- Hardware only; support purchased separately

FAQs

Q: What does the FNRC-900F do?
A: It is a physical network sensor that captures traffic from a SPAN port or TAP device and sends metadata to the FortiNDR Cloud SaaS platform for AI-driven threat detection.

Q: What throughput does the FNRC-900F support?
A: It provides 13 Gbps of NDR sniffer throughput for metadata processing across all ports.

Q: Are transceivers included?
A: Yes, the FNRC-900F ships with 4x 10G multimode SFP+ transceivers.

Q: What network interfaces does it have?
A: It has 2x 1G copper, 2x 10G copper and 2x 10G SFP+ fibre ports, including 1x 1GbE management and 1x 1GbE monitoring, 2x 10GbE copper monitoring and 2x 10G SFP+ monitoring interfaces.

Q: Is support or a subscription included with the FNRC-900F?
A: No, it is hardware only. Support must be purchased separately.

Q: How does it differ from the FortiNDR Cloud 500F?
A: The 900F is the large-sensor tier in a 1U chassis with higher capacity and SFP+ fibre monitoring ports, sitting above the 500F small sensor.
