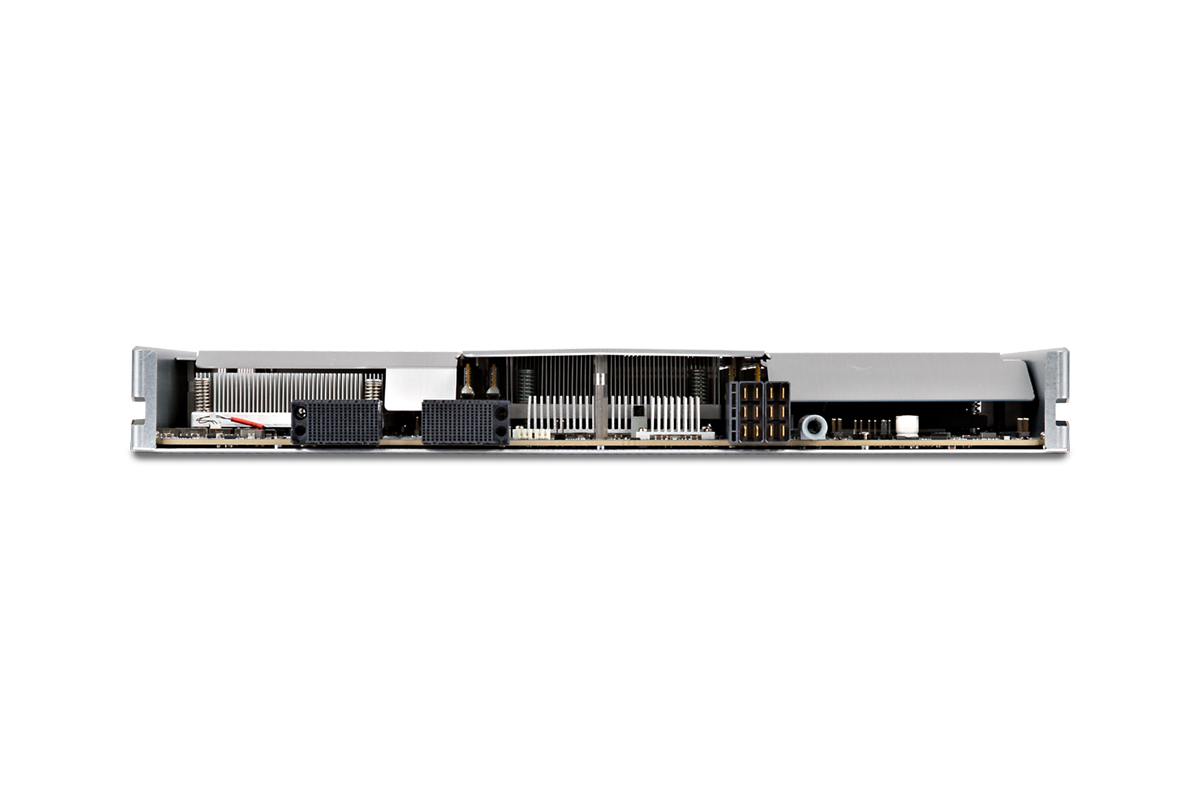

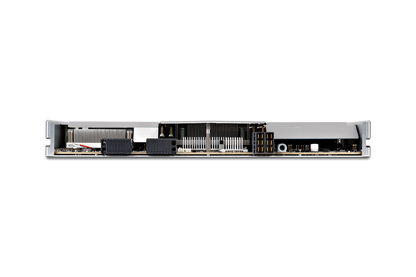

• Fortinet FIM-7901E motherboard with 4x GE RJ45 and 34x 10GE SFP+ slots

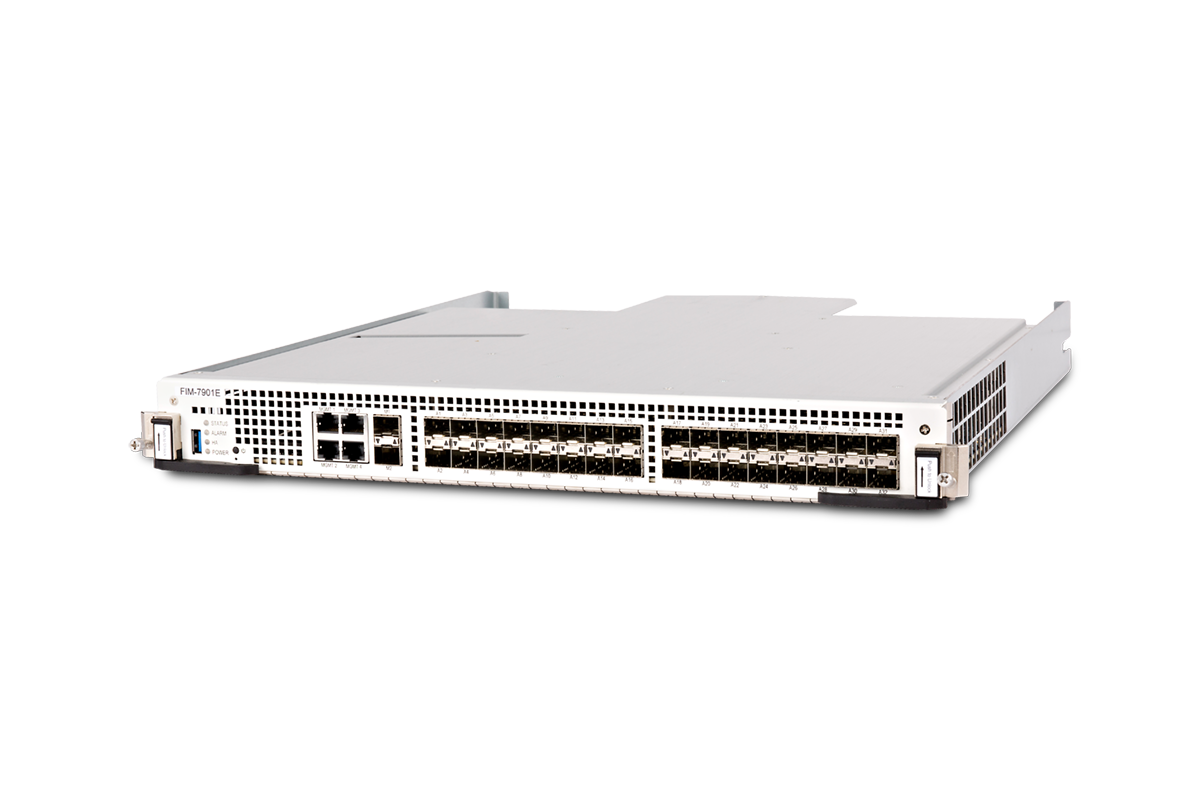

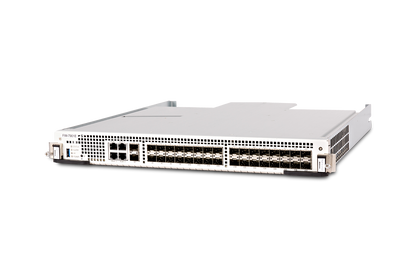

  • Fortinet FIM-7901E network switch with 4x GE RJ45 and 34x 10GE SFP+ ports
1 2

Fortinet

Fortinet FIM-7901E | Interface Module, 32x 10GE SFP+, 2x 10GE Base, 4x GE RJ45

Fortinet FIM-7901E | Interface Module, 32x 10GE SFP+, 2x 10GE Base, 4x GE RJ45

Authorised Fortinet Partner

FIM-7901E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FIM-7901E is a hot-swappable SPU DP2-accelerated interface module for the FortiGate 7000E series chassis, with 32x 10GE SFP+ fabric ports, 2x 10GE SFP+ base channel ports and 4x GE RJ45 out-of-band management ports. It suits high-throughput data centre and service provider firewall deployments that need dense 10GE connectivity on a modular platform.

An integrated switch fabric and DP2 processors load balance sessions across the chassis fabric backplane to the FPM processor modules. The front panel 10GE SFP+ interfaces can also run as Gigabit Ethernet with SFP transceivers, and link aggregation groups can include interfaces from both interface modules in a chassis. It installs in hub/switch slots 1 and 2 of the FortiGate 7030E, 7040E and 7060E, and 2x SFP+ SR transceivers are included.

Features

- Hot-swappable module providing data, management and session sync/heartbeat interfaces
- Integrated switch fabric and DP2 processors load balance millions of sessions over the chassis fabric backplane to FPM processor modules
- Base backplane switching and fabric backplane session-aware load balancing
- 10GE SFP+ front panel interfaces can also operate as Gigabit Ethernet using SFP transceivers
- Supports link aggregation groups (LAGs) including interfaces from both interface modules in a chassis
- Four 10/100/1000BASE-T out-of-band management interfaces

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32x GE/10GE SFP/SFP+ network interface slots (A1-A32)
- 2x 10GE SFP+ base channel ports (M1/M2), 34x 10GE SFP+ slots in total
- 4x GE RJ45 (10/100/1000BASE-T) management ports (MGMT1-MGMT4)
- 2x SFP+ SR transceivers included
- SPU DP2 accelerated networking blade
- Fabric backplane channel: 80 Gbps per FPM installed in the same chassis
- Hot swappable, installs in hub/switch slots 1 and 2 of the chassis
- Compatible chassis: FortiGate 7030E, 7040E, 7060E
- Power consumption: 260 W average, 450 W maximum
- Heat dissipation: 1531 BTU/h
- Operating temperature: 0-40°C (32-104°F)
- Storage temperature: -35-70°C (-31-158°F)
- Humidity: 20-90% non-condensing
- Certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

FAQs

Q: Which chassis is the FIM-7901E compatible with?
A: It is designed for the FortiGate 7000E series chassis, including the FortiGate 7030E, 7040E and 7060E.

Q: Which slots does the FIM-7901E install in?
A: It installs in hub/switch slots 1 and 2 of the FortiGate 7000E chassis.

Q: Are transceivers included?
A: Yes, 2x SFP+ SR transceivers are included. Additional optics can be fitted to the remaining SFP/SFP+ slots as required.

Q: Can the SFP+ ports run at Gigabit speeds?
A: Yes. The front panel 10GE SFP+ interfaces can also operate as Gigabit Ethernet when fitted with SFP transceivers.

Q: Is the module hot swappable?
A: Yes, the FIM-7901E is a hot-swappable I/O module.

Q: What is the power draw of the FIM-7901E?
A: It draws 260 W on average and 450 W at maximum, with heat dissipation of 1531 BTU/h.
