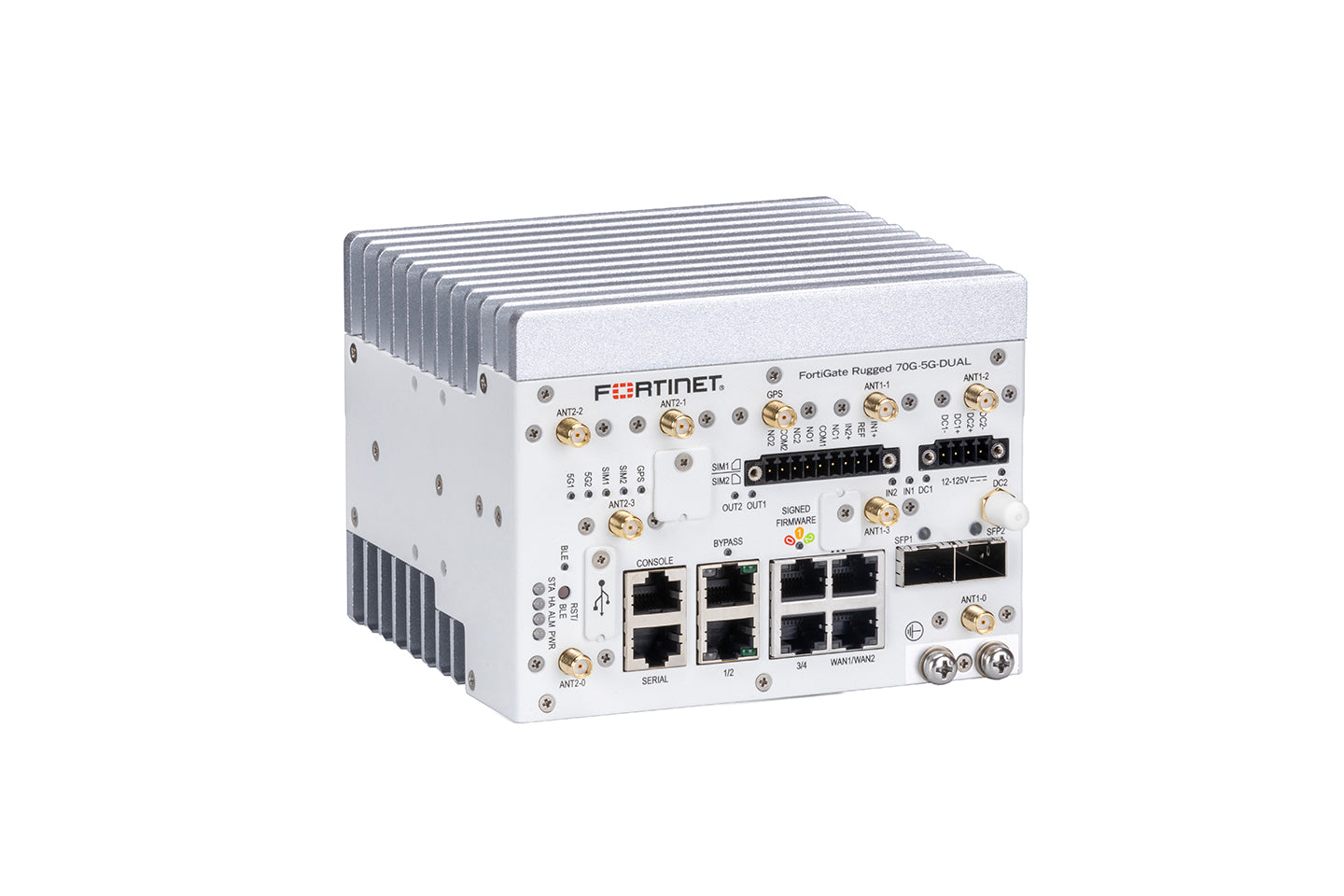

• Fortinet FGR-70G-5G-DUAL rugged 5G security appliance front view

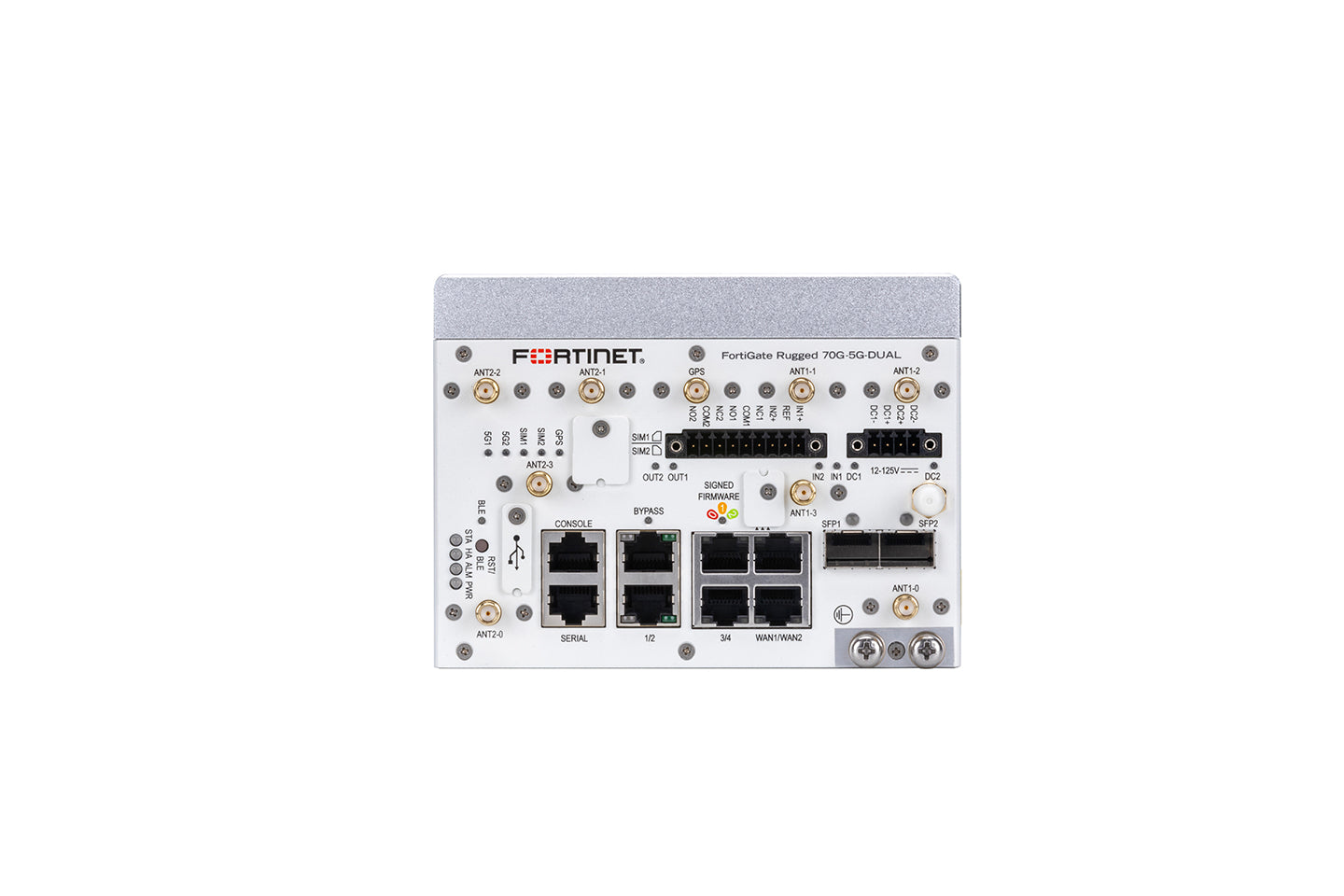

  • Fortinet FGR-70G-5G-DUAL ruggedized 5G security appliance front view

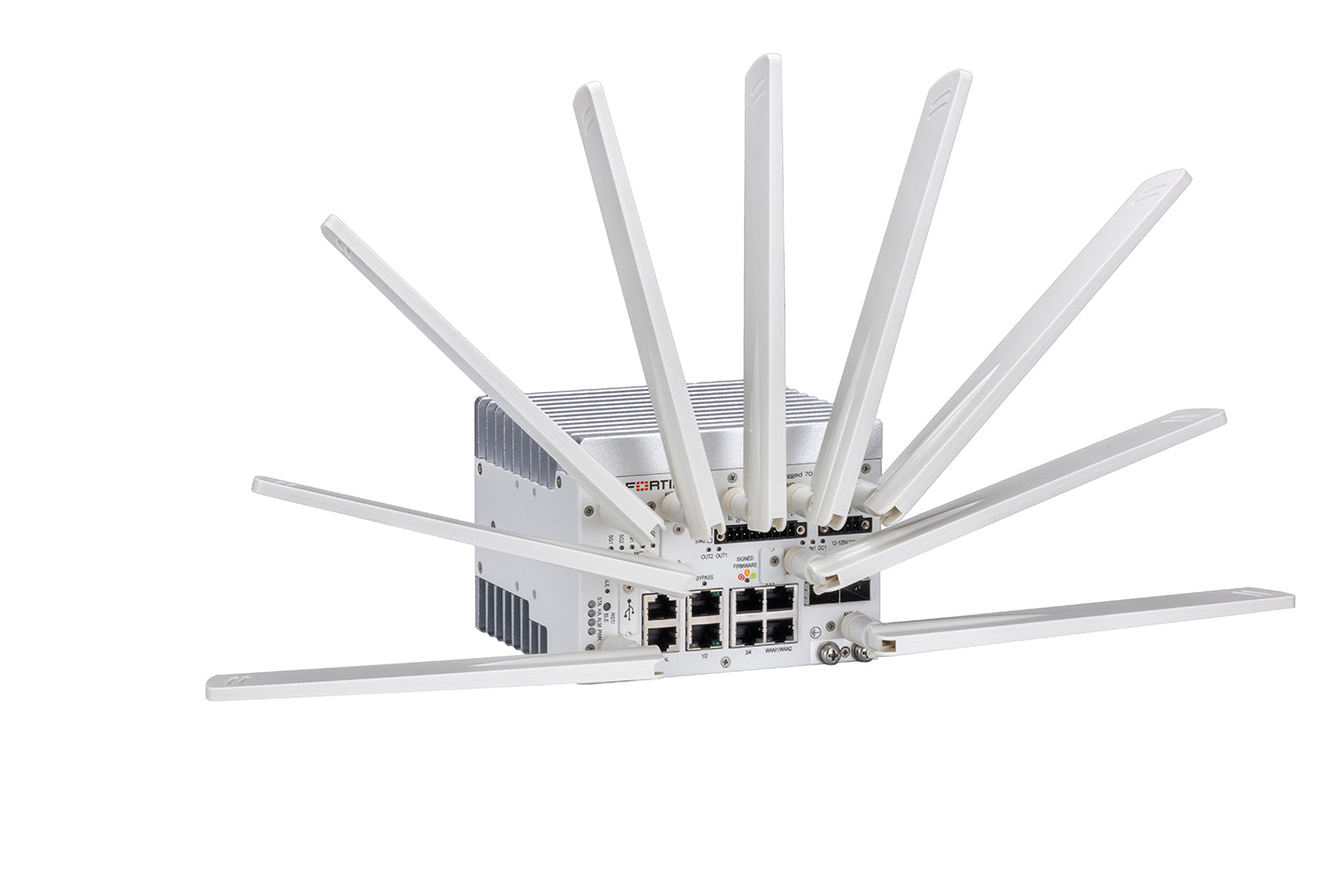

  • Fortinet FGR-70G-5G-DUAL rugged white 5G wireless router with antennas

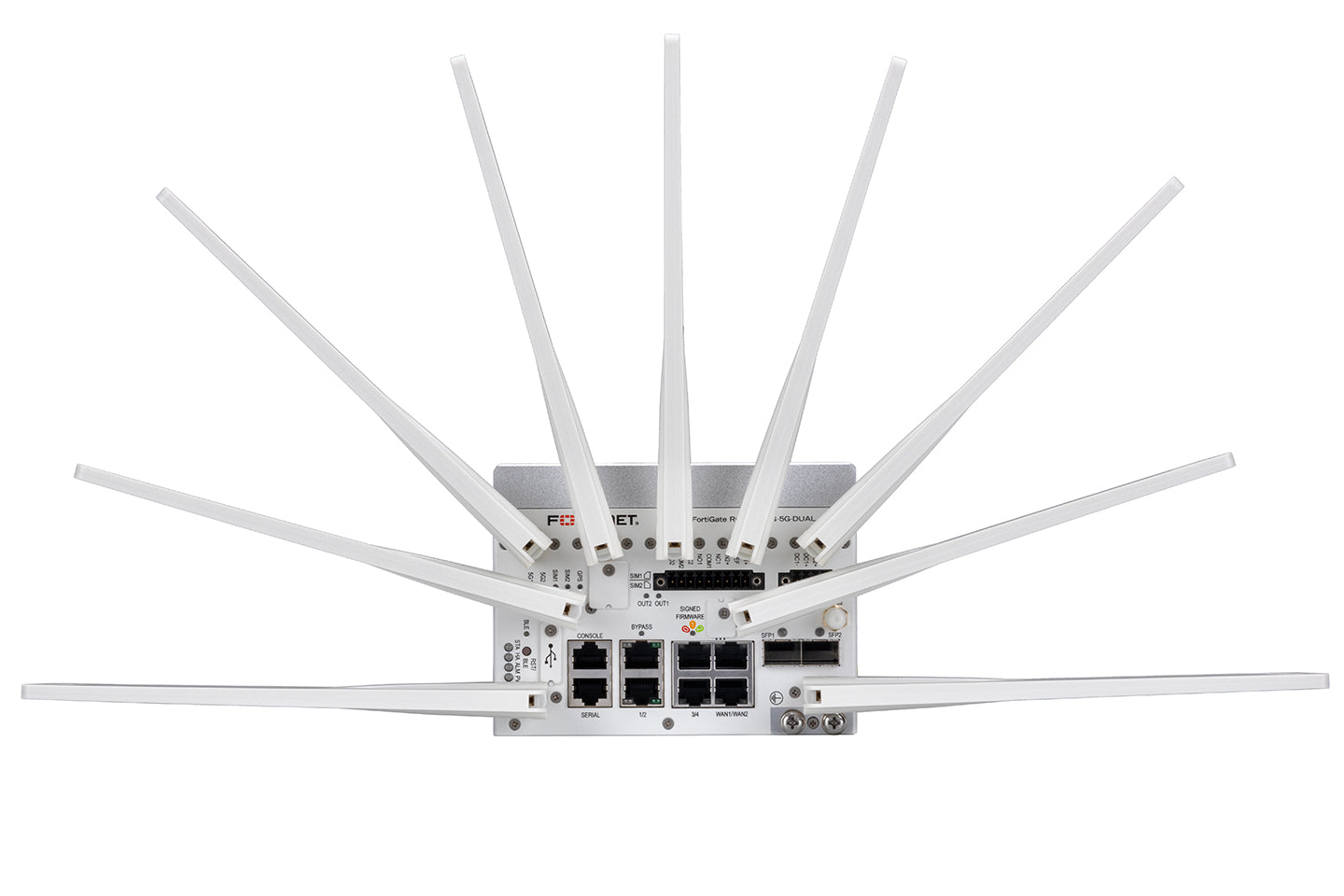

  • Fortinet FGR-70G-5G-DUAL rugged router with 8 antennas back view

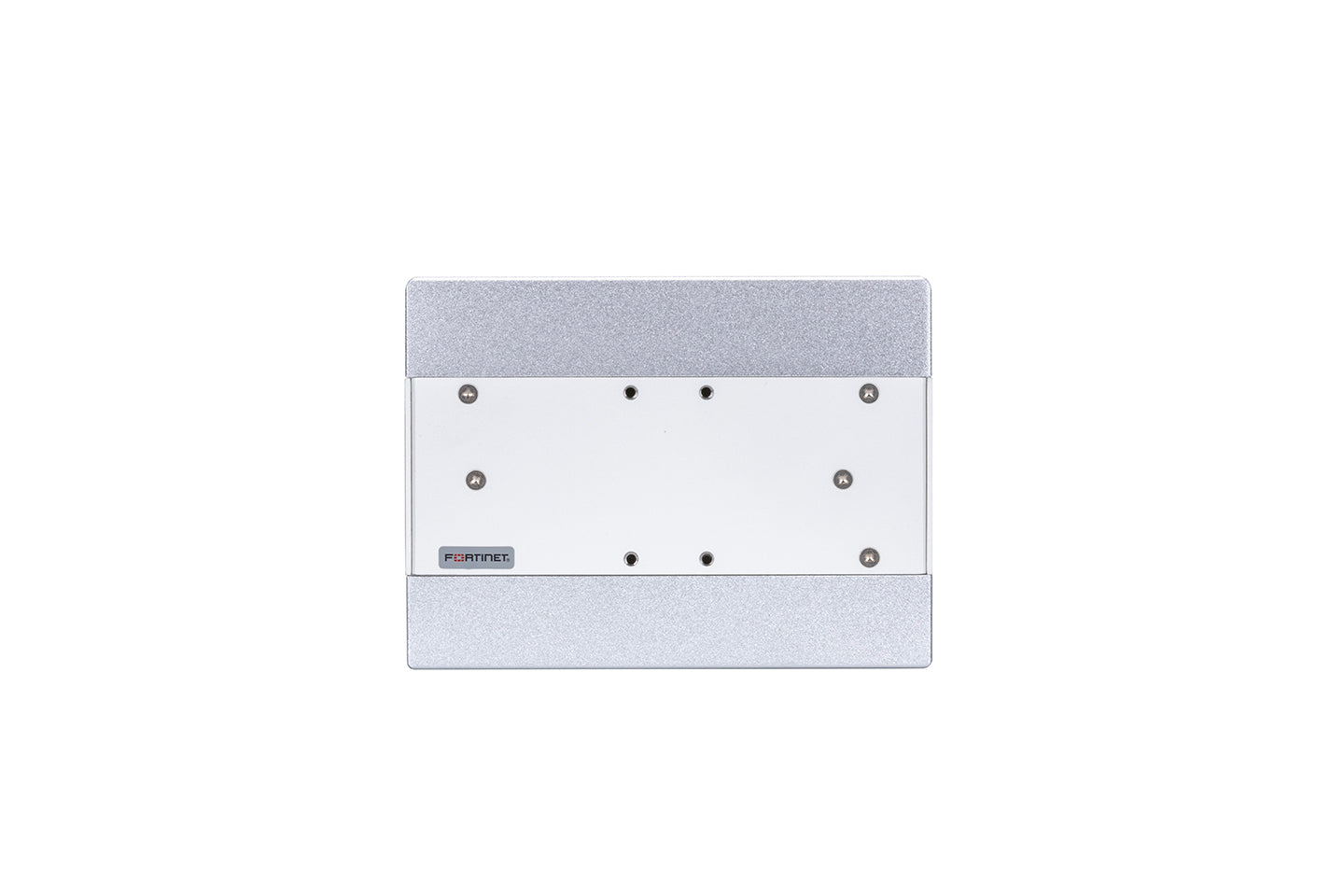

  • Fortinet FGR-70G-5G-DUAL ruggedized switchboard with white silver panels

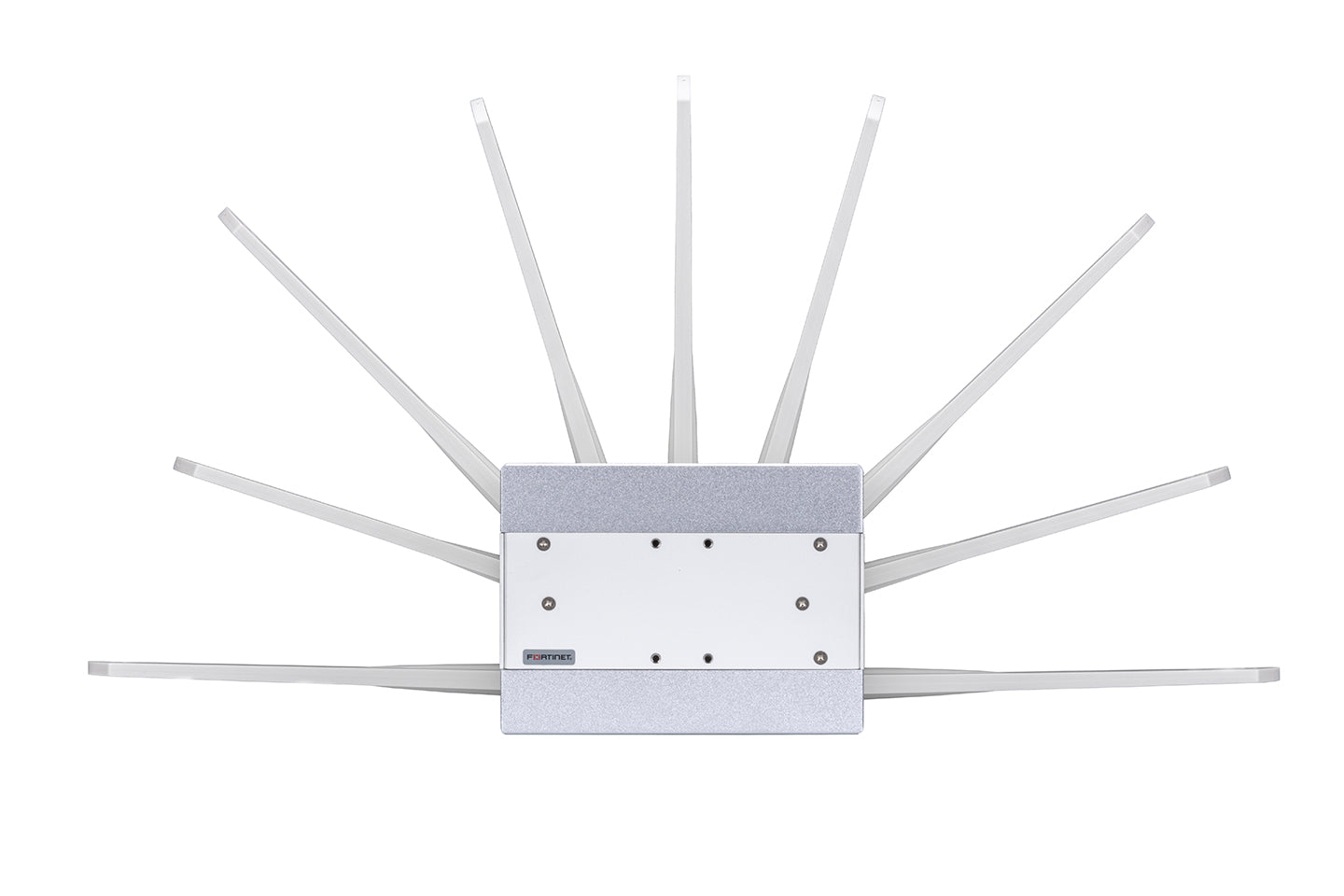

  • Fortinet FGR-70G-5G-DUAL white rectangular antenna with 8 radiating rods

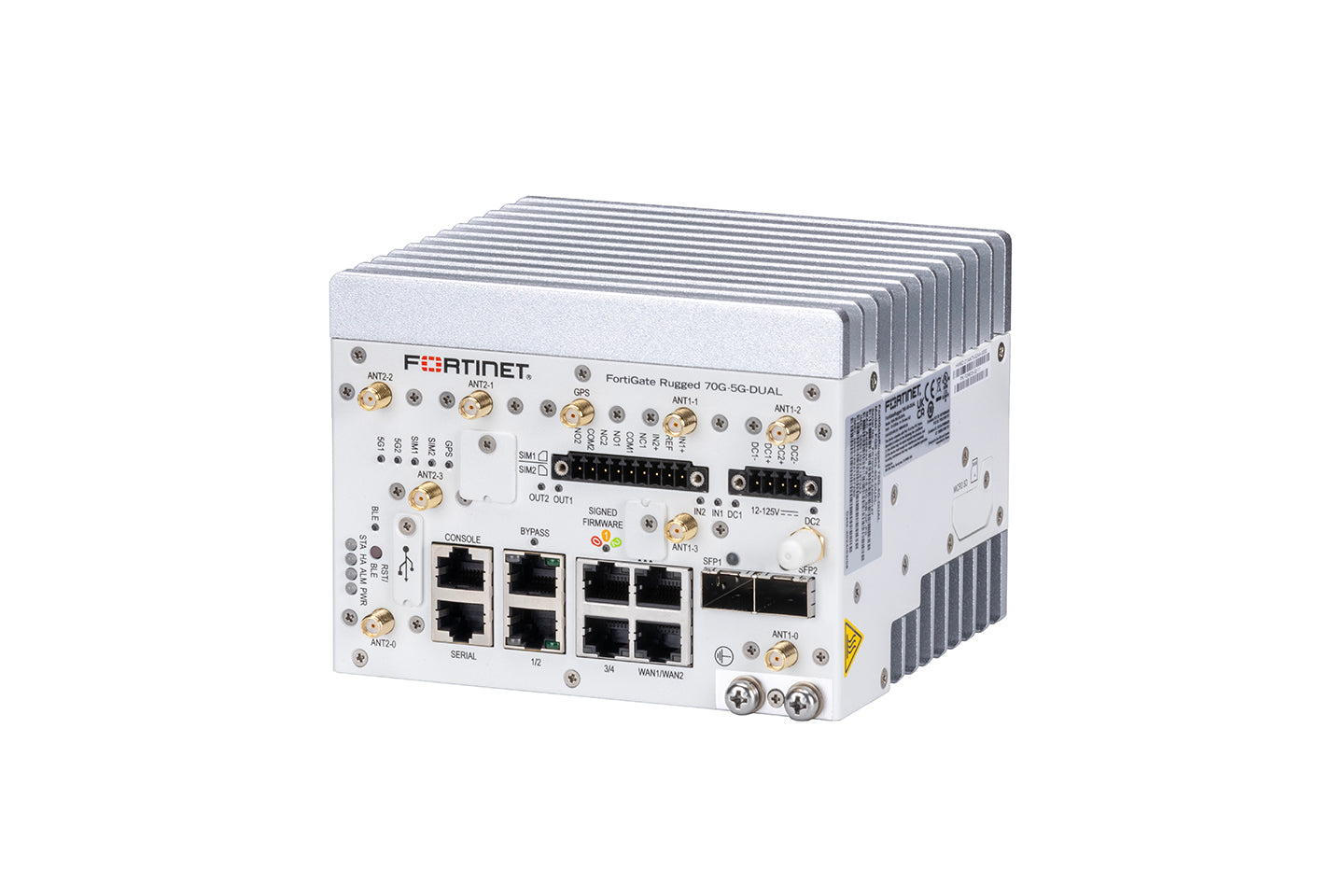

  • White Fortinet FGR-70G-5G-DUAL rugged firewall with ports and heat sink
1 7

Fortinet

Fortinet FGR-70G-5G-DUAL | Rugged 5G Firewall, Dual Modem, 6x GE, 2x SFP, Dual DC

Fortinet FGR-70G-5G-DUAL | Rugged 5G Firewall, Dual Modem, 6x GE, 2x SFP, Dual DC

Authorised Fortinet Partner

FGR-70G-5G-DUAL

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate Rugged 70G-5G-DUAL is a compact, DIN-rail, ruggedised indoor next-generation firewall for industrial and OT networks. It combines dual embedded 5G modems with GPS and two SIM slots (active/active), 6x GE RJ45 ports, 2x SFP slots and redundant 12-125V DC power inputs, all driven by the Fortinet FortiSP5 security processor.

Delivering 8 Gbps of firewall throughput, 1.5 Gbps NGFW and 1.3 Gbps threat protection, it suits remote substations, transport, utilities and other harsh deployments that need resilient cellular WAN failover. A wide -40°C to 75°C operating range, TPM support and OT-specific FortiGuard coverage make it a dependable security gateway at the industrial edge.

Features

- FortiSP5 processor for converged networking and security performance
- Dual 5G cellular modems with dual SIM (active/active) for resilient WAN connectivity
- SD-WAN, VPN, universal ZTNA and AI-based real-time threat protection
- OT Security Service with FortiGuard coverage for 75+ OT applications and protocols
- Centralised management, automation and OT-specific analytics via FortiGate and FortiManager
- Ruggedised design with wide operating temperature range and redundant DC power inputs

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 6x GE RJ45 ports, including 1 GE RJ45 bypass port pair (PORT1-PORT2)
- 2x GE SFP slots
- 1x RJ45 serial port (data), 1x RJ45 console port, 1x USB 2.0 port, 1x MicroSD card slot
- Embedded dual 5G modems with GPS, 2x SIM (active/active), Bluetooth Low Energy
- 8x external antennas
- Digital I/O module (DIO)
- Processor: Fortinet FortiSP5 security processor, TPM supported
- Firewall throughput (1518/512/64 byte UDP): 8/8/8 Gbps, 5.82 µs latency, 12 Mpps
- IPS throughput 2.5 Gbps, NGFW 1.5 Gbps, Threat Protection 1.3 Gbps
- IPsec VPN throughput (512 byte) 7.1 Gbps, SSL inspection throughput 1.4 Gbps, application control 3.6 Gbps
- 1.4 million concurrent sessions (TCP), 85,000 new sessions per second, 5,000 firewall policies
- IPsec VPN tunnels: 200 gateway-to-gateway, 500 client-to-gateway
- Virtual domains: 10 default / 10 maximum
- Managed FortiAPs: 96 total / 48 tunnel, managed FortiSwitches: 24
- Redundant dual 12V-125V DC power inputs, 25 W average / 26.2 W maximum consumption
- Operating temperature -40°C to 75°C, humidity 5-95% non-condensing, IP40
- Dimensions 139 x 104 x 122 mm (H x W x L), weight 2.1 kg

FAQs

Q: Does the FGR-70G-5G-DUAL include built-in 5G?
A: Yes. It has embedded dual 5G modems with GPS and two SIM slots operating active/active, so no external cellular modem is required.

Q: What power inputs does it support?
A: It has redundant dual DC inputs supporting 12V to 125V DC, with average consumption of 25 W and a maximum of 26.2 W.

Q: What operating temperature range does it handle?
A: It operates from -40°C to 75°C in 5-95% non-condensing humidity, suiting harsh industrial and outdoor-cabinet environments.

Q: What network ports are provided?
A: It provides 6x GE RJ45 ports (including a bypass port pair), 2x GE SFP slots, an RJ45 serial data port, an RJ45 console port, a USB 2.0 port and a MicroSD slot.

Q: What firewall performance can I expect?
A: It delivers 8 Gbps firewall throughput, 2.5 Gbps IPS, 1.5 Gbps NGFW and 1.3 Gbps threat protection, with 1.4 million concurrent sessions.

Q: Is it suitable for OT and industrial networks?
A: Yes. It is a ruggedised, DIN-rail design with OT Security Service coverage from FortiGuard for 75+ OT applications and protocols.
