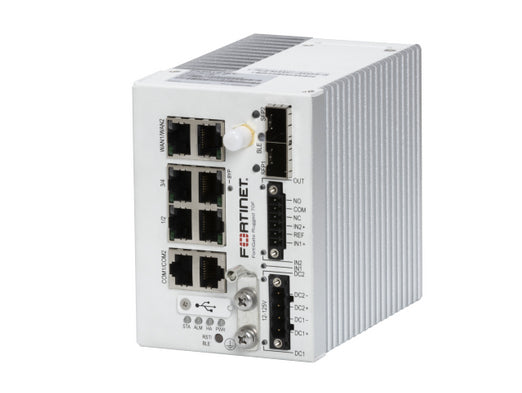

• Fortinet FGR-70F rugged firewall switch with Ethernet ports and ribbed casing
1 1

Fortinet

Fortinet FGR-70F | Rugged Next-Gen Firewall, 8 Gbps, 4x GE LAN, 2x SFP, IP40

Fortinet FGR-70F | Rugged Next-Gen Firewall, 8 Gbps, 4x GE LAN, 2x SFP, IP40

Authorised Fortinet Partner

FGR-70F

Stock Status: Enquire

$4,308.10 inc. GST
$3,916.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FGR-70F is a ruggedised indoor IP40 next-generation firewall appliance built for industrial and harsh environments. It delivers 8 Gbps firewall throughput with 4x GE RJ45 LAN ports, 2x GE RJ45 WAN ports and 2x SFP slots, giving flexible copper and fibre connectivity in a compact security appliance.

A GE RJ45 bypass port pair between PORT3 and PORT4 helps maintain network continuity, while dual serial ports (data and console), a USB port and a MicroSD card slot support straightforward deployment and management. As part of the FortiGate Rugged range, it suits utilities, transport, manufacturing and other operational technology networks that need dependable perimeter and segmentation security.

Features

- Ruggedised IP40 design for industrial and harsh indoor environments
- Combination of GE RJ45 and SFP ports for copper and fibre connectivity
- GE bypass port pair to help maintain connectivity
- Dedicated console and data serial ports for management and integration
- MicroSD card slot and USB port for expanded storage and deployment options
- FortiGate next-generation firewall security for operational technology networks

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ruggedised, indoor, IP40 chassis
- 8 Gbps firewall throughput
- 4x GE RJ45 LAN ports
- 2x GE RJ45 WAN ports
- 1x GE RJ45 bypass port pair (between PORT3 and PORT4)
- 2x SFP slots
- 1x RJ45 serial port (data)
- 1x RJ45 serial port (console)
- 1x USB port
- 1x MicroSD card slot

FAQs

Q: What environments is the FortiGate Rugged 70F designed for?
A: It is a ruggedised, indoor, IP40-rated appliance intended for industrial and harsh environments such as utilities, transport and manufacturing sites.

Q: What network interfaces does the FGR-70F provide?
A: It provides 4x GE RJ45 LAN ports, 2x GE RJ45 WAN ports, 1x GE RJ45 bypass port pair between PORT3 and PORT4, and 2x SFP slots.

Q: Does it have console and storage options?
A: Yes. It includes one RJ45 serial console port, one RJ45 serial data port, a USB port and a MicroSD card slot.

Q: Is the FGR-70F suitable for outdoor installation?
A: It is rated for indoor use at IP40. For outdoor deployments it should be installed within a suitable protective enclosure.

Q: What is the firewall throughput of the FGR-70F?
A: It is rated at 8 Gbps firewall throughput, suited to industrial network segments and perimeter protection.
