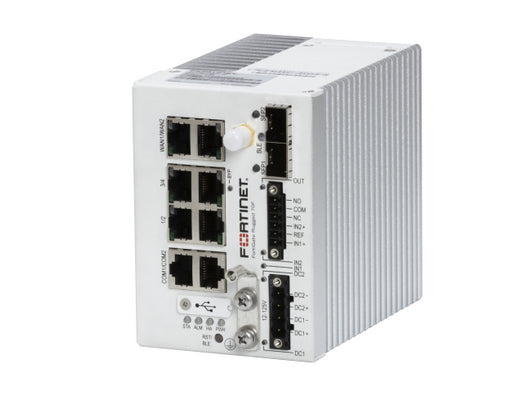

Fortinet FGR-70F-3G4G | Rugged IP40 Firewall, 3G/4G LTE GPS, 2x SFP, 6x GE

Fortinet FGR-70F-3G4G | Rugged IP40 Firewall, 3G/4G LTE GPS, 2x SFP, 6x GE

Authorised Fortinet Partner

FGR-70F-3G4G

Stock Status: Enquire

$5,933.70 inc. GST
$5,394.27 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGateRugged-70F-3G4G is a ruggedised IP40 DIN-rail next-generation firewall with an integrated 3G/4G LTE modem and GPS, built for industrial, OT and utility environments. It provides 6x GE RJ45 interfaces, 2x SFP slots and a GE bypass port pair, and delivers 8 Gbps firewall throughput, 975 Mbps IPS throughput and 6.5 Gbps IPsec VPN throughput on the FortiSoC4 processor.

A fanless design, redundant 12V to 125V DC power inputs and an operating range of -40 to 75 C suit substations, rolling stock and remote cabinets. The integrated Sierra Wireless EM7565 modem with dual Nano SIM slots adds wireless WAN connectivity, while built-in TPM, Bluetooth Low Energy, Digital I/O and a MicroSD slot support secure edge deployments. It runs FortiOS with Security Fabric integration and FortiGuard security services.

Features

- Ruggedised fanless DIN-rail design with IP40 rating for industrial and OT environments
- Wide operating temperature range of -40 to 75 C
- Redundant dual 12V to 125V DC power inputs
- Integrated 3G/4G LTE modem with GPS and dual Nano SIM slots for wireless WAN connectivity
- FortiSoC4 processor with hardware-accelerated security and SD-WAN
- GE bypass port pair for network continuity
- Certified for electric power, rolling stock and industrial cybersecurity requirements
- Built-in TPM, Bluetooth Low Energy, Digital I/O and MicroSD slot
- Runs FortiOS with Security Fabric integration and FortiGuard security services

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 6x GE RJ45 LAN/WAN interfaces (4x LAN, 2x WAN)
- 1x GE RJ45 bypass port pair (PORT3-PORT4)
- 2x SFP slots
- 1x RJ45 serial port, 1x RJ45 console port, 1x USB-A 2.0 port, MicroSD card slot
- Integrated 3G/4G LTE modem with GPS (Sierra Wireless EM7565), 2x Nano SIM slots
- Processor: FortiSoC4, with TPM, Bluetooth Low Energy and Digital I/O
- Firewall throughput: 8 Gbps (1518/512/64 byte UDP), 12 Mpps
- IPS throughput: 975 Mbps; NGFW throughput: 950 Mbps; Threat Protection throughput: 580 Mbps
- IPsec VPN throughput: 6.5 Gbps; 200 gateway-to-gateway and 500 client-to-gateway tunnels
- 1M concurrent sessions; 35,000 new sessions per second
- SSL inspection throughput: 500 Mbps
- Power: 12V to 125V DC redundant dual inputs; 18.3 W average, 19.9 W maximum
- IP40 DIN-rail form factor, 111 x 80.5 x 122 mm, 1.3 kg
- Operating temperature -40 to 75 C; humidity 5% to 95% non-condensing
- Compliance: IEC 61850-3, IEEE 1613, IEC 62443-4-2 SL4, EN 50155

FAQs

Q: Does the FortiGateRugged-70F-3G4G include a cellular modem?
A: Yes. It has an integrated 3G/4G LTE modem with GPS (Sierra Wireless EM7565) and two Nano SIM slots in an active/passive arrangement.

Q: What power input does it use?
A: It uses redundant dual 12V to 125V DC inputs on terminal blocks, with negative or positive ground. DC cables are not included.

Q: What environments is it designed for?
A: It is an IP40 fanless DIN-rail unit rated from -40 to 75 C. It is certified to IEC 61850-3, IEEE 1613, IEC 62443-4-2 SL4 and EN 50155, so it suits substations, rolling stock and industrial sites. Outdoor installation requires an industry-compliant cabinet.

Q: How many network ports does it provide?
A: It has 6x GE RJ45 interfaces (4x LAN and 2x WAN), a GE bypass port pair between PORT3 and PORT4, and 2x SFP slots. It also has RJ45 serial and console ports and a USB port.

Q: What throughput can it deliver?
A: It delivers 8 Gbps firewall throughput, 975 Mbps IPS, 950 Mbps NGFW, 580 Mbps threat protection and 6.5 Gbps IPsec VPN throughput.

Q: Does it support high availability?
A: Yes. It supports active-active, active-passive and clustering high availability configurations.
