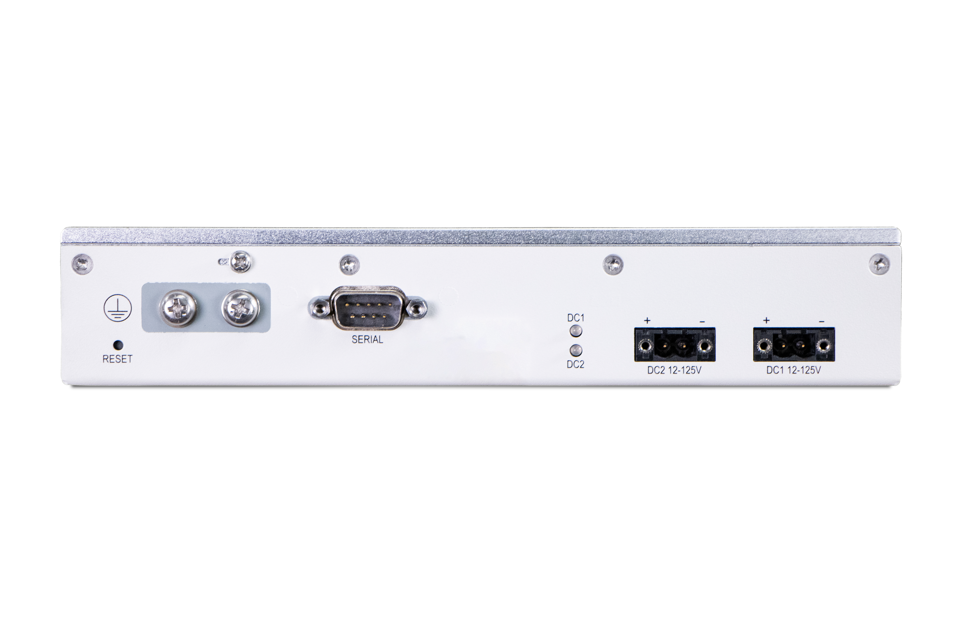

• Back of Fortinet FortiGate Rugged-60F with DC1 DC2 ports, serial port

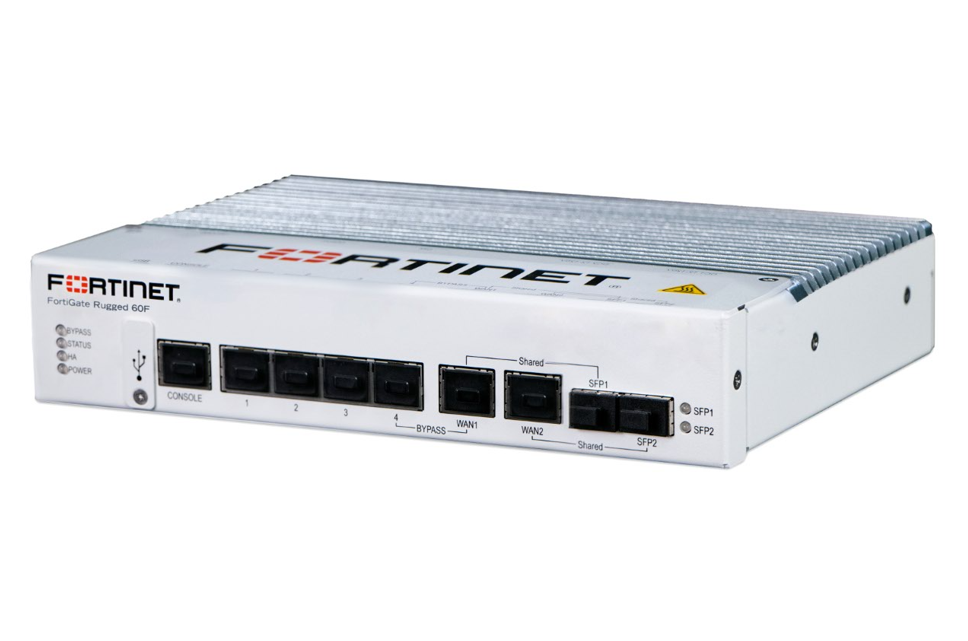

  • Fortinet FortiGate Rugged-60F white 6GF appliance with silver heatsink and ports

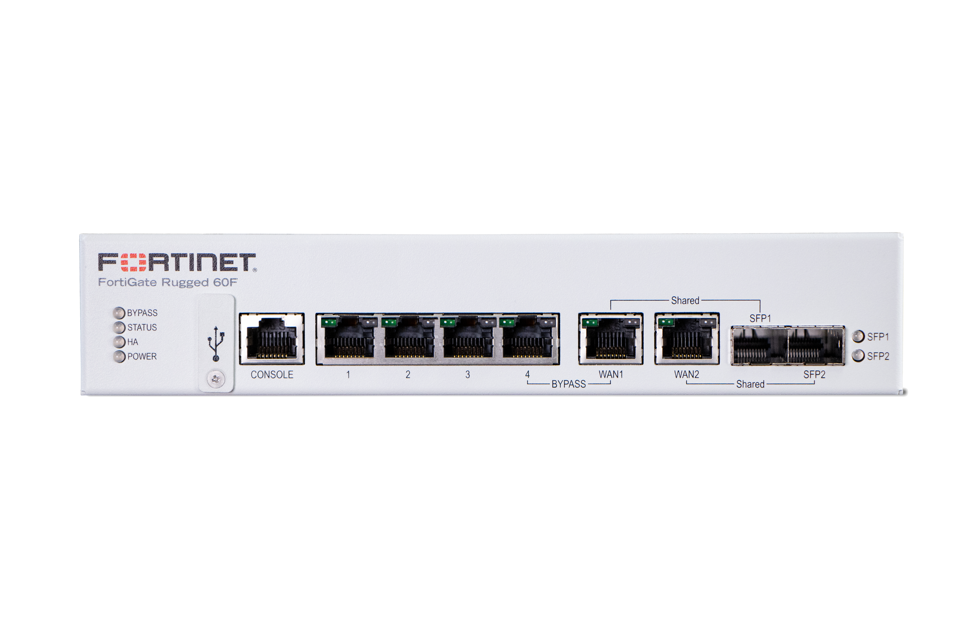

  • White Fortinet FortiGate Rugged 60F with Ethernet ports and lights
1 3

Fortinet

Fortinet FGR-60F | Rugged 60F Industrial Firewall, 4x GE RJ45, 2x SFP, Bypass

Fortinet FGR-60F | Rugged 60F Industrial Firewall, 4x GE RJ45, 2x SFP, Bypass

Authorised Fortinet Partner

FGR-60F

Stock Status: Enquire

$4,616.72 inc. GST
$4,197.02 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate Rugged 60F is a ruggedised industrial next-generation firewall for operational technology and industrial control system networks. It provides 4x GE RJ45 switch ports, 2x shared RJ45/SFP media pairs and a GE RJ45 bypass port pair between WAN1 and PORT4, with firewall throughput of up to 6 Gbps and IPS throughput of 950 Mbps. This model has no 3G/4G modem.

Powered by the Fortinet SoC4 processor, the FGR-60F supports IPS and application control for OT/ICS protocols and is managed through FortiOS with Security Fabric integration. Redundant dual 12V to 125V DC power inputs and fanless operation from -40 to 75 C suit it to substations, factory floors and other harsh sites, with desktop, DIN-rail and wall mounting options.

Features

- Ruggedised design for operational technology and industrial control system environments
- Wide DC input range (12V to 125V) with redundant dual power inputs
- Fanless operation across an extended -40 to 75 C temperature range
- Fortinet SoC4 processor accelerates security and networking performance
- IPS and application control support for OT/ICS protocols
- GE RJ45 bypass port pair between WAN1 and PORT4
- Managed through FortiOS with Security Fabric integration

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x GE RJ45 switch ports
- 2 x shared media pairs (2 x GE RJ45 or 2 x SFP slots)
- 1 x GE RJ45 bypass port pair (WAN1 and PORT4)
- 1 x RJ45 console port, 1 x DB9 serial port and 1 x USB port
- Firewall throughput: 6 / 6 / 5.95 Gbps (1518 / 512 / 64 byte UDP)
- IPS throughput: 950 Mbps
- NGFW throughput: 550 Mbps
- Threat protection throughput: 500 Mbps
- SSL inspection throughput: 460 Mbps
- IPsec VPN throughput: 3.5 Gbps (512 byte)
- Concurrent sessions: 600,000 (TCP)
- Processor: Fortinet SoC4 with Trusted Platform Module
- Power: 12V to 125V DC, redundant dual inputs
- Power consumption: 15 W average, 21 W maximum
- Operating temperature: -40 to 75 C
- Dimensions: 42.7 x 216 x 170 mm, 1.75 kg
- Mounting: desktop, DIN-rail or wall mount, IP20

FAQs

Q: Does the FGR-60F include a 3G/4G modem?
A: No. This model has no built-in cellular modem. It provides 4x GE RJ45 switch ports, 2x shared RJ45/SFP media pairs and a GE RJ45 bypass port pair.

Q: What is the bypass port pair used for?
A: A GE RJ45 bypass pair can be set up between WAN1 and PORT4 so traffic can continue to pass between those two ports if the unit loses power or fails.

Q: Can I use fibre uplinks with the FGR-60F?
A: Yes. It has 2 shared media pairs, each providing either a GE RJ45 port or an SFP slot, so you can use SFP modules for fibre connections.

Q: What power input does it use?
A: It accepts 12V to 125V DC on redundant dual inputs, with negative or positive ground. Average consumption is 15 W and maximum is 21 W.

Q: What temperatures can it operate in?
A: It is fanless and rated for operation from -40 to 75 C with 5% to 95% non-condensing humidity, making it suited to unconditioned industrial enclosures.

Q: How can it be mounted?
A: It supports desktop, DIN-rail and wall mounting. The chassis is IP20 rated, so install it in a suitable enclosure where dust or moisture ingress is a concern.
