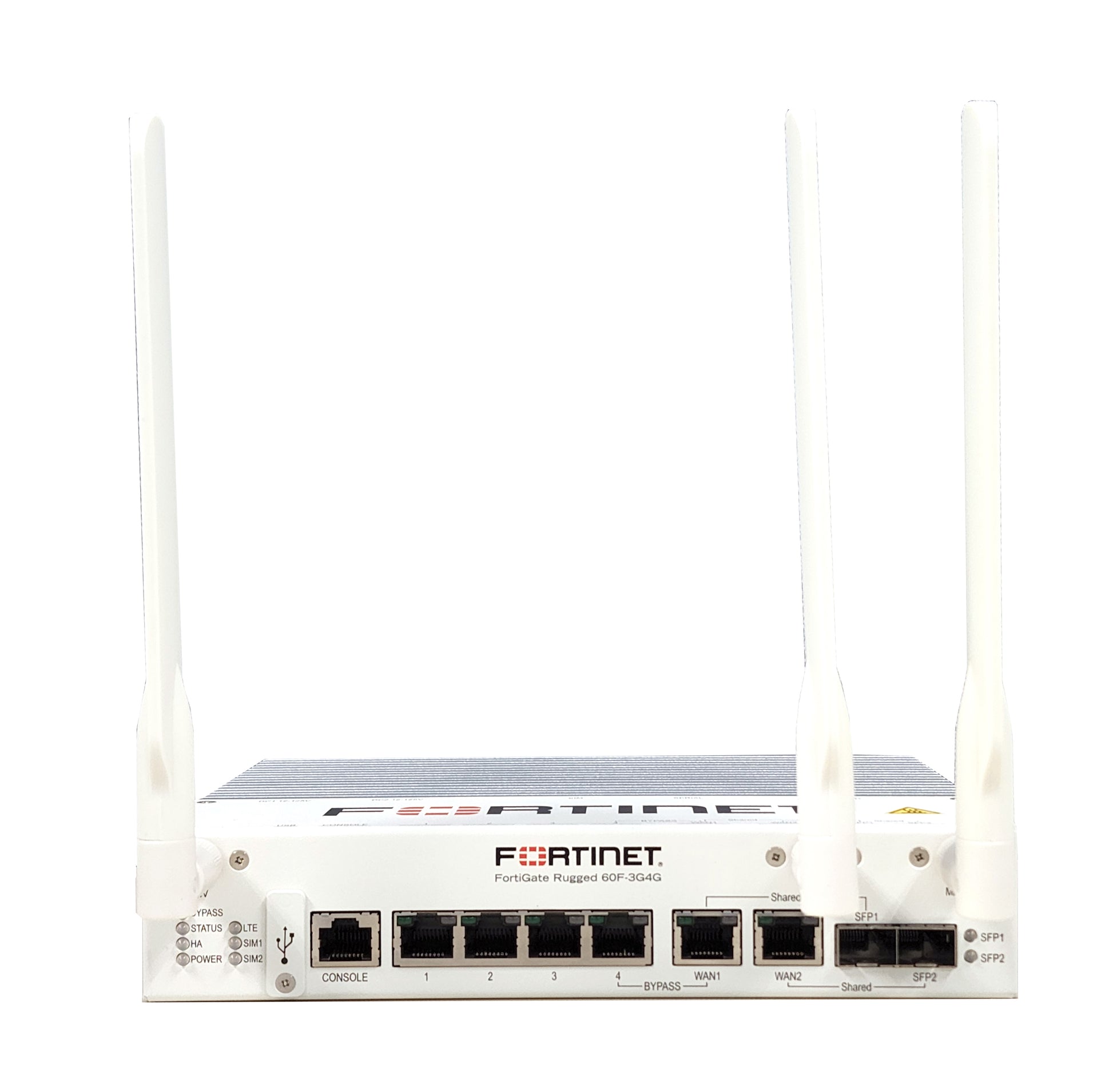

• White Fortinet FortiGate Rugged 60F-3G4G with 4 antennas and ports

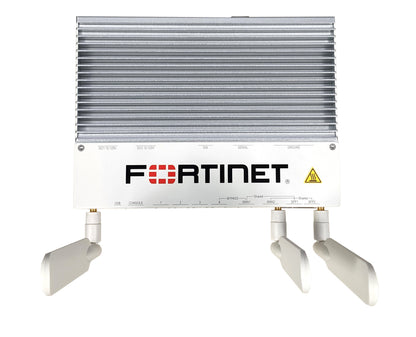

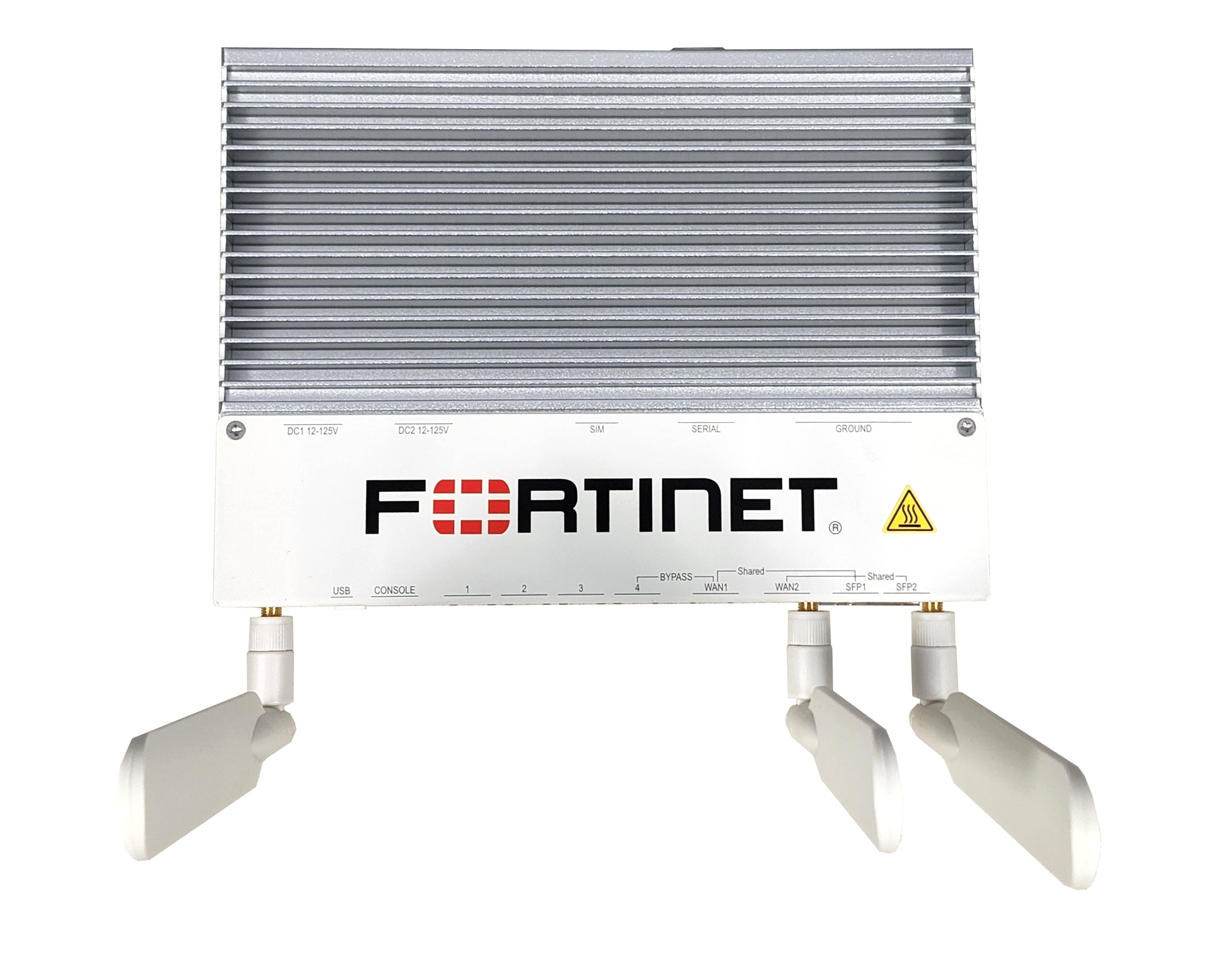

  • Fortinet FortiGate Rugged-60F silver appliance with ribbed heat sink, antennas

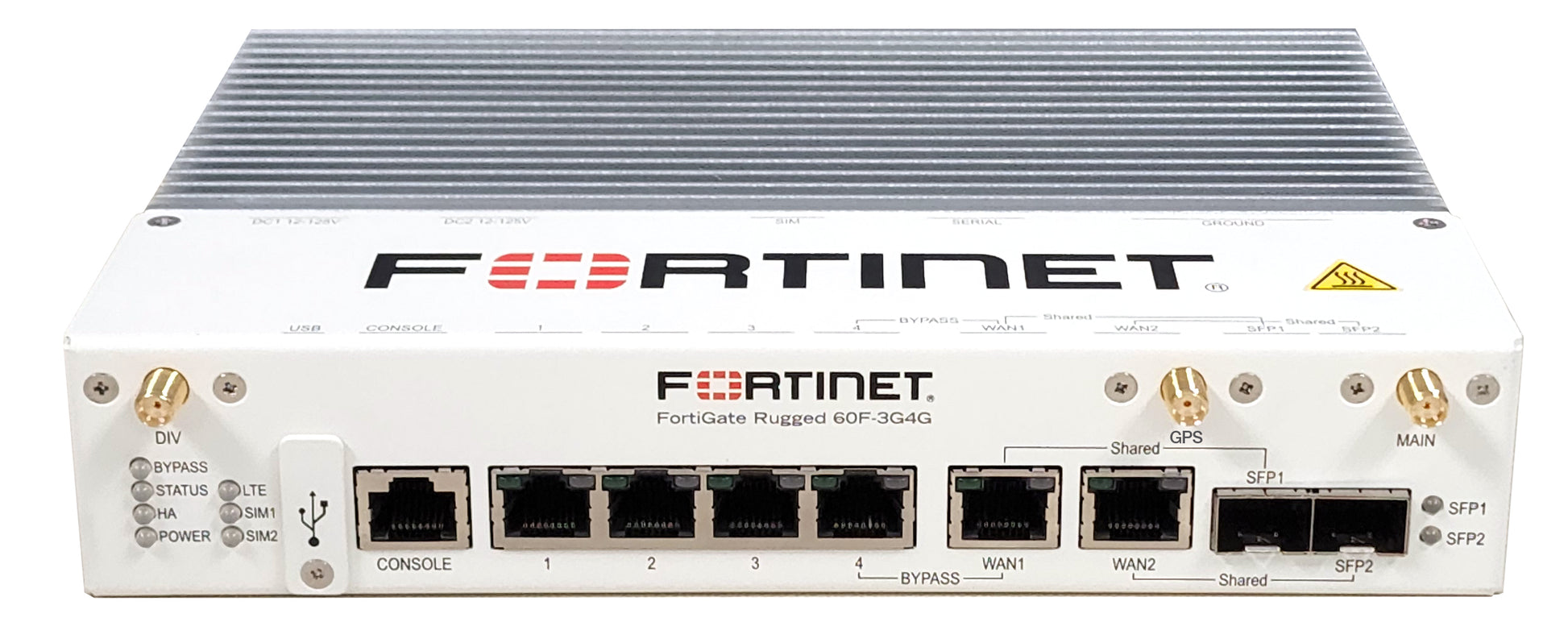

  • Fortinet FortiGate Rugged 60F-3G4G with ports, antennas, heatsink

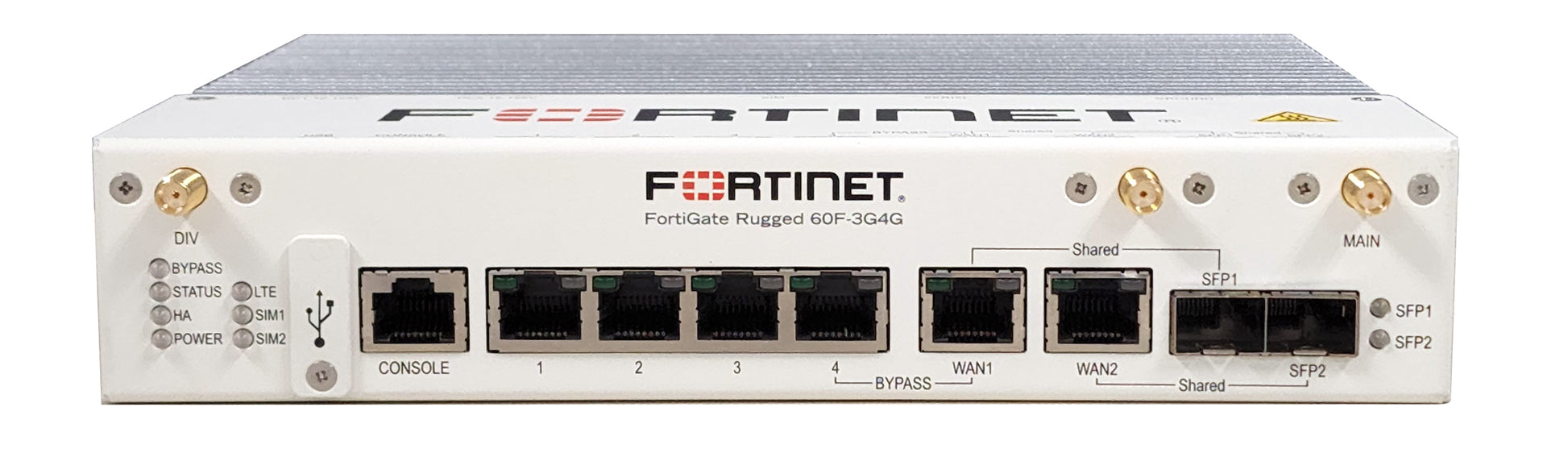

  • White Fortinet FortiGate Rugged 60F-3G4G with Ethernet ports and antennas

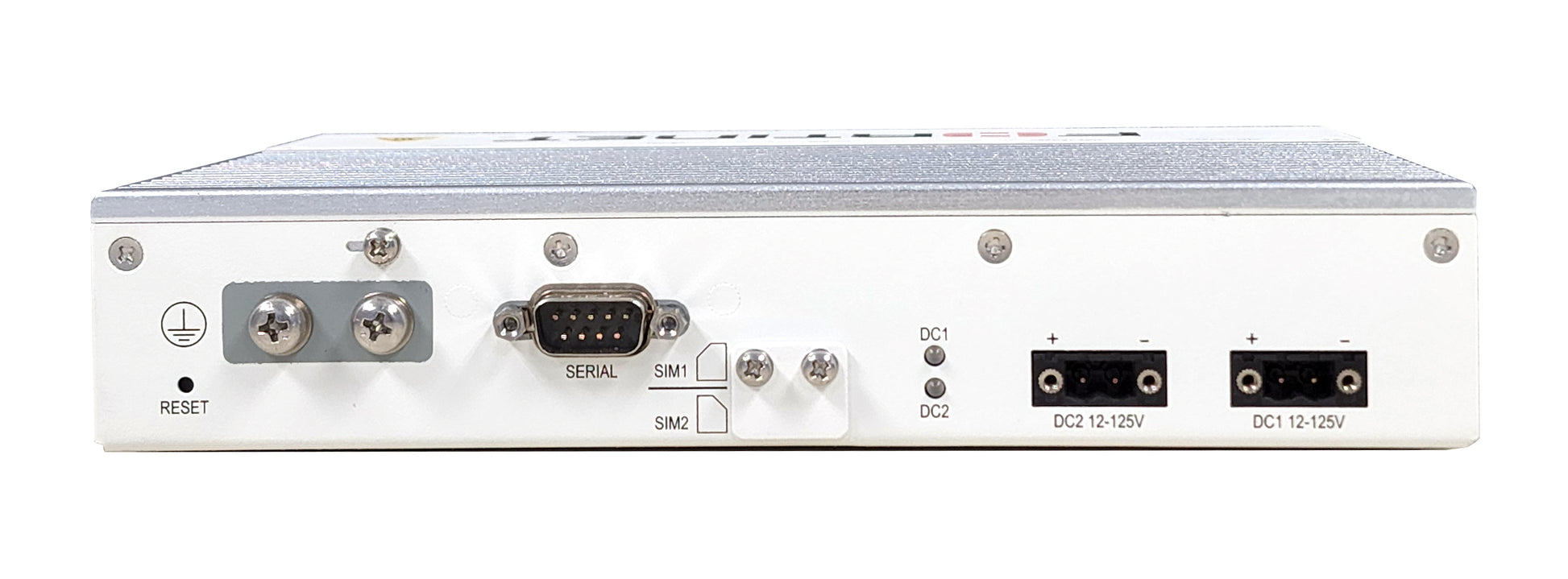

  • Back of Fortinet FortiGate Rugged-60F with DC jacks, serial port, SIM slots
1 5

Fortinet

Fortinet FGR-60F-3G4G | Rugged Firewall, 3G/4G LTE + GPS, 2x SIM, 6 Gbps

Fortinet FGR-60F-3G4G | Rugged Firewall, 3G/4G LTE + GPS, 2x SIM, 6 Gbps

Authorised Fortinet Partner

FGR-60F-3G4G

In stock:105

$6,516.74 inc. GST
$5,924.31 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate Rugged 60F-3G4G is a fanless, ruggedised next-generation firewall with an integrated 3G/4G LTE modem and GPS (Sierra Wireless EM7565), dual Nano SIM slots and external antennas. Built for industrial and OT edge sites, it delivers 6 Gbps of firewall throughput on the FortiSoC4 and operates from -40 to 75 C, making it well suited to substations, transport, utilities and remote cabinets where wired WAN links are unreliable.

Four GE RJ45 LAN ports, two shared RJ45/SFP WAN pairs and an RJ45 bypass pair between PORT4 and WAN1 give flexible connectivity, while redundant 12V to 125V DC inputs keep the unit powered in harsh environments. It can be mounted on a DIN rail, wall or desktop, and runs FortiOS with Security Fabric integration, IPS, application control and industrial protocol visibility.

Features

- Fanless ruggedised design for harsh industrial environments
- FortiSoC4 SPU-powered security processing
- Integrated 3G/4G LTE modem with GPS and dual SIM for cellular WAN failover
- RJ45 bypass pair between WAN1 and PORT4
- Redundant 12V to 125V DC power inputs
- Industrial and OT protocol visibility with IPS and application control
- Integrated TPM for hardware-based security
- Runs FortiOS with consolidated security and Security Fabric integration

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x GE RJ45 LAN ports
- 2 x GE RJ45/SFP shared media pairs
- 1 x GE RJ45 bypass pair (PORT4-WAN1)
- Integrated 3G/4G LTE modem + GPS (Sierra Wireless EM7565), 2 x Nano SIM (active/passive)
- 1 x DB9 serial, 1 x RJ45 console, 1 x USB-A 2.0
- Processor: FortiSoC4, with integrated TPM
- Firewall throughput: 6 / 6 / 5.95 Gbps (1518/512/64 byte UDP)
- IPS throughput 950 Mbps, NGFW 550 Mbps, Threat Protection 500 Mbps
- IPsec VPN throughput 3.5 Gbps (512 byte)
- Concurrent sessions 600,000, new sessions per second 19,000
- Power: 12V to 125V DC redundant dual inputs, 16 W average / 24 W maximum, DC cables not included
- Operating temperature -40 to 75 C, storage -40 to 85 C, humidity 5% to 95% non-condensing
- Form factor: Desktop / DIN-rail / wall mount, IP20
- Dimensions 42.7 x 216 x 170 mm, weight 1.84 kg
- Certifications include FCC Part 15 Class A, CE, UL/cUL, IEC 61850-3, IEEE 1613, IEC 60945 and EN 50121

FAQs

Q: Does this model include a built-in cellular modem?
A: Yes. The FGR-60F-3G4G includes an integrated Sierra Wireless EM7565 3G/4G LTE modem with GPS, two Nano SIM slots (active/passive) and external antennas.

Q: What operating temperature range does it support?
A: It operates from -40 to 75 C and is fanless, so it suits industrial cabinets and remote sites. Outdoor installation requires an industry-compliant cabinet.

Q: How is the unit powered?
A: It uses redundant 12V to 125V DC dual inputs on terminal blocks, with negative or positive ground. DC cables are not included.

Q: How can it be mounted?
A: It supports desktop, DIN-rail and wall mounting.

Q: What WAN options are available?
A: WAN connectivity is available through the two shared RJ45/SFP media pairs and the integrated 3G/4G LTE modem, which can act as a failover link.

Q: Is SSL-VPN supported?
A: SSL-VPN throughput is rated at 400 Mbps, but SSL-VPN is not supported from FortiOS 7.6.0. IPsec VPN is rated at 3.5 Gbps.
