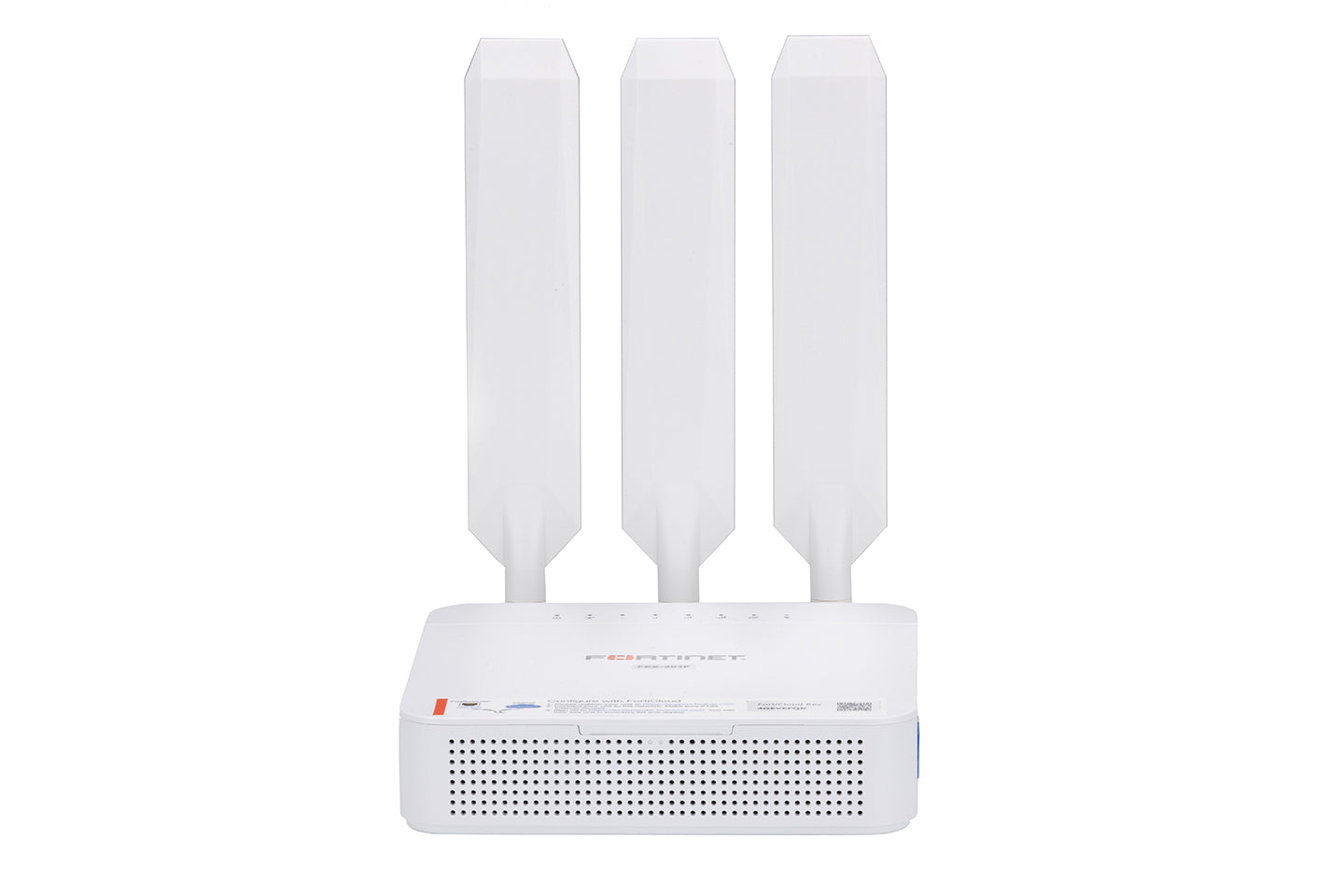

• Fortinet FEX-201F-EA white plastic wireless LTE CAT7 router with 3 antennas

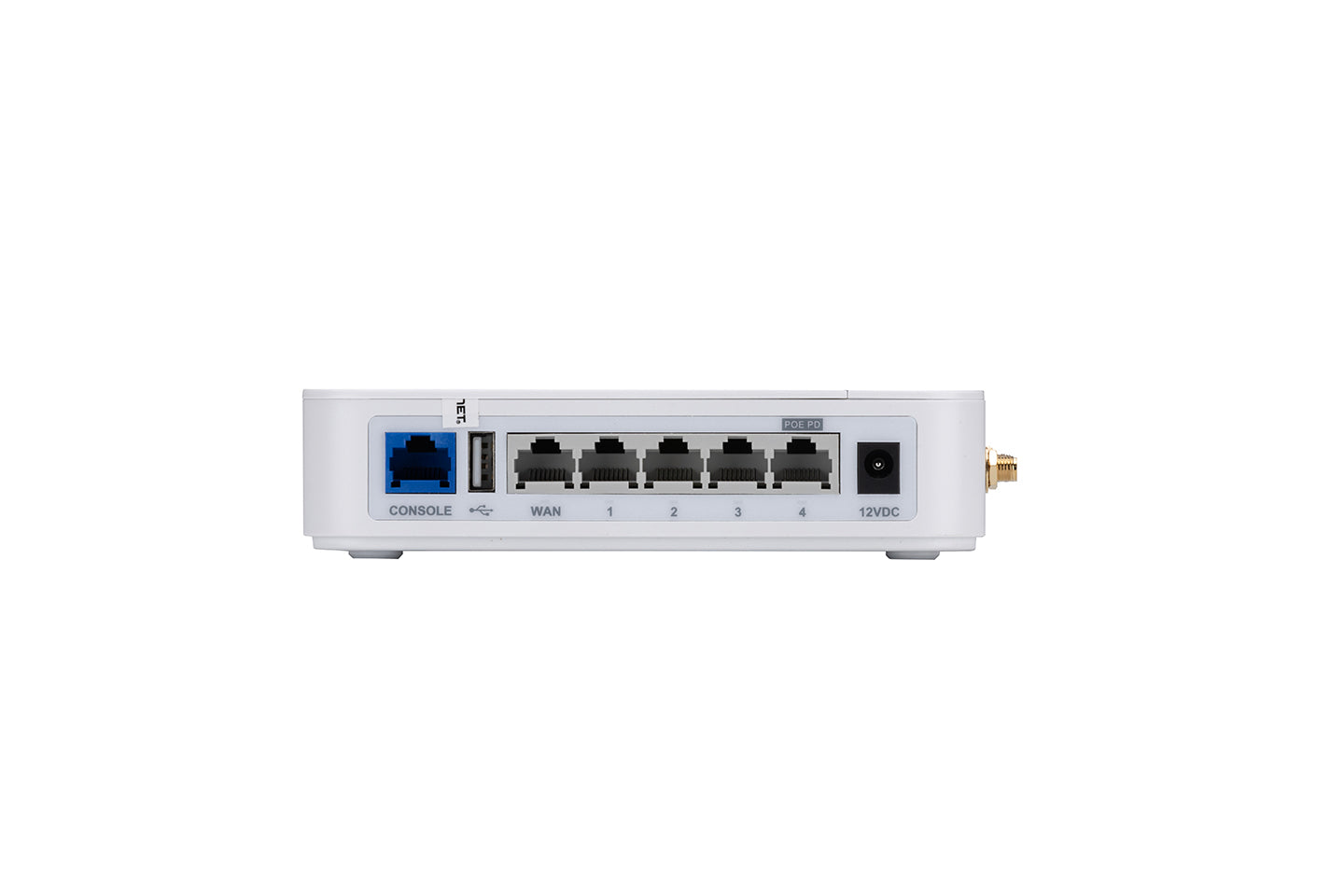

  • Back of Fortinet FEX-201F-EA FortiExtender 201F with ports and antenna connector

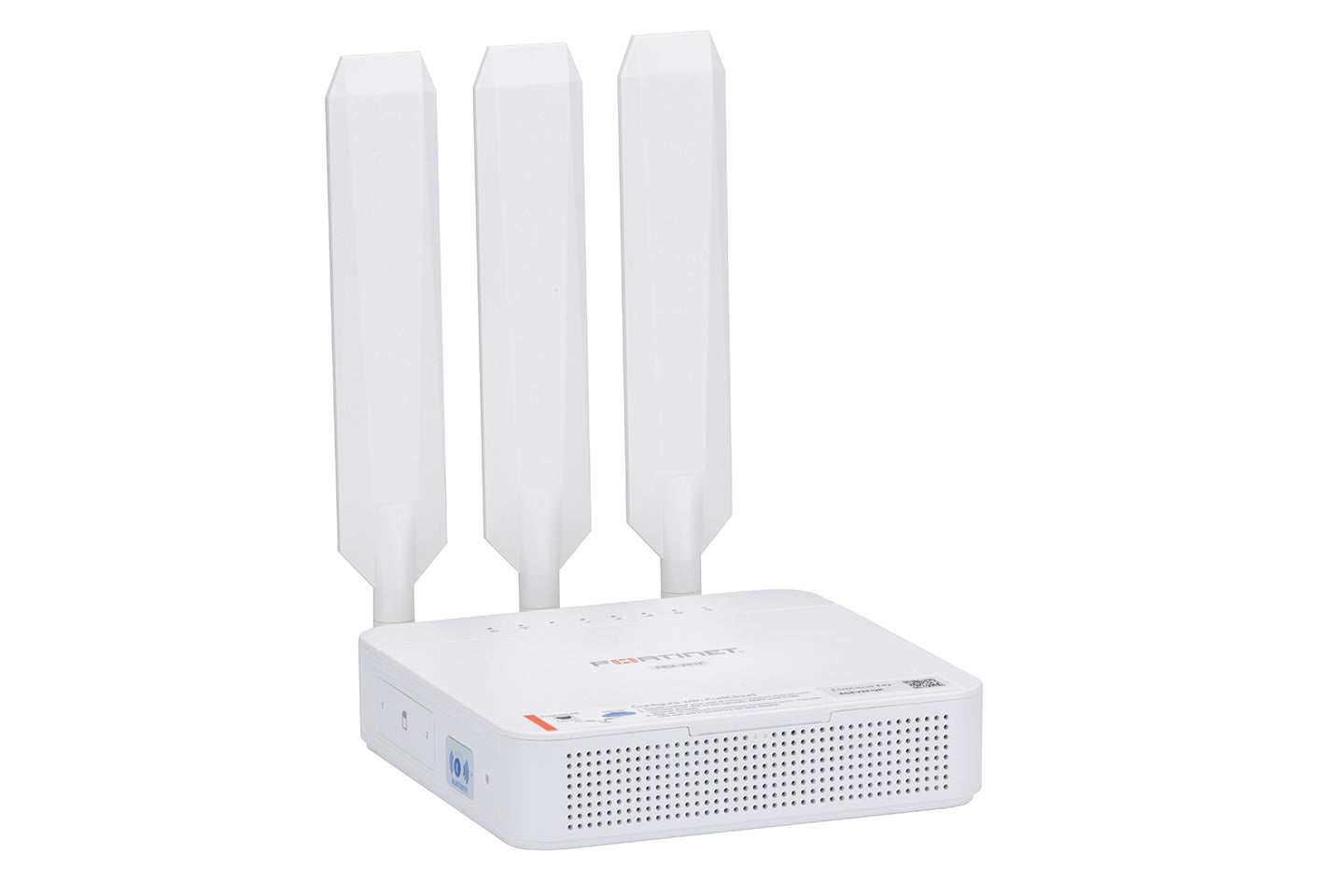

  • Fortinet FEX-201F-EA FortiExtender 201F white LTE CAT7 router with antennas

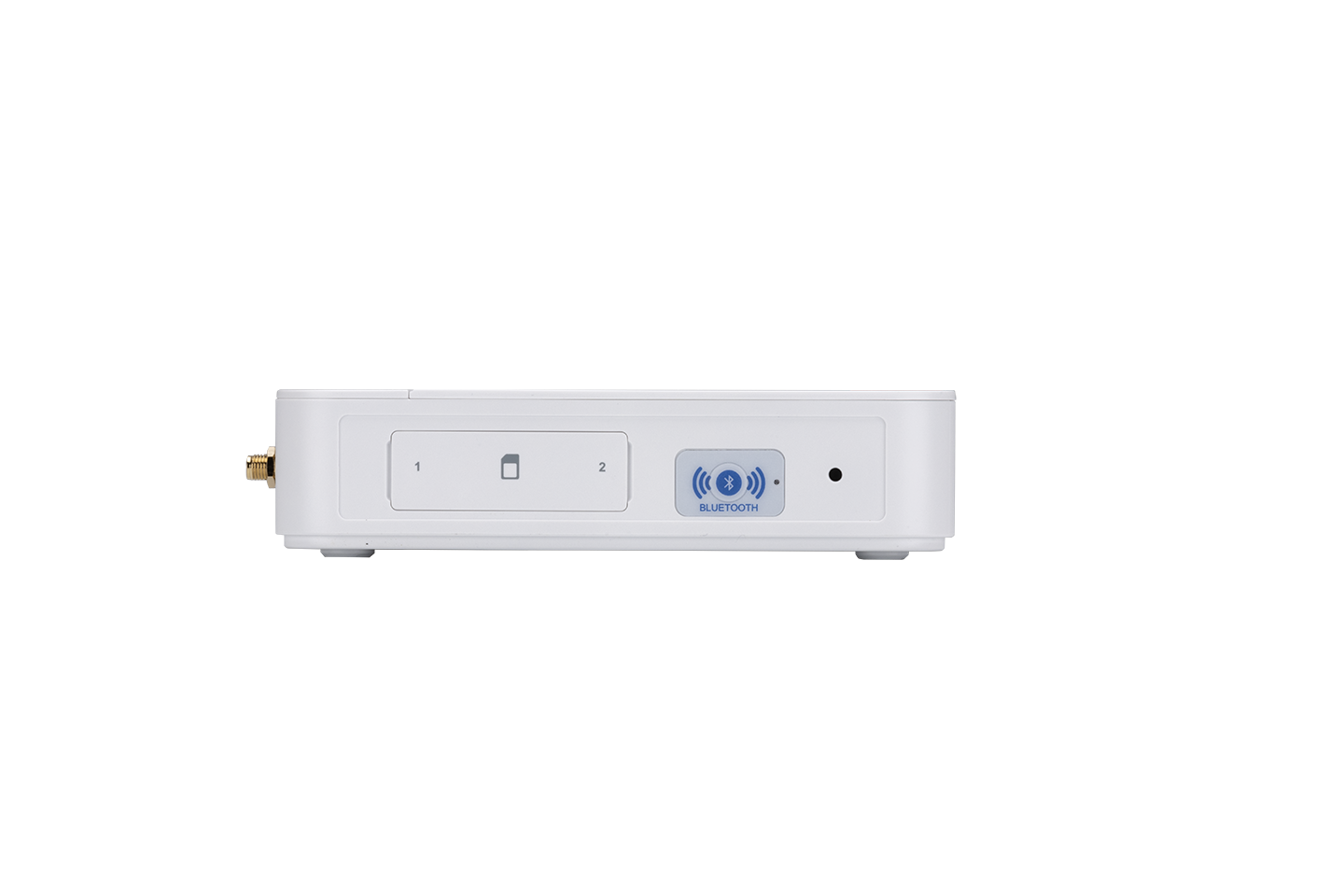

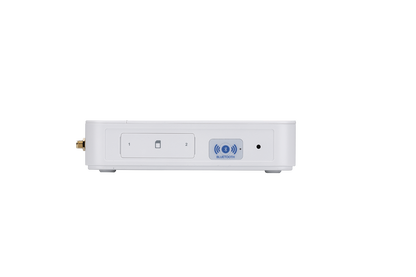

  • Fortinet FEX-201F-EA FortiExtender 201F white LTE CAT7 router with dual SIM slots
1 4

Fortinet

Fortinet FEX-201F-EA | FortiExtender 201F Indoor LTE CAT7 Router, Dual SIM, 5x GE, GPS

Fortinet FEX-201F-EA | FortiExtender 201F Indoor LTE CAT7 Router, Dual SIM, 5x GE, GPS

Authorised Fortinet Partner

FEX-201F-EA

Stock Status: Enquire

$1,154.57 inc. GST
$1,049.61 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FEX-201F-EA FortiExtender 201F is an indoor LTE CAT7 router that adds a dual-SIM 3G/4G wireless WAN link to branch and remote sites. Its internal M.2 modem delivers up to 300 Mbps download and 150 Mbps upload on EMEA, APAC and Brazil carriers (EA variant), with five configurable Gigabit Ethernet WAN/LAN ports, PoE PD power input on one port and a GPS/GNSS antenna port.

Dual Micro-SIM slots support carrier failover, while three external SMA antennas and 2x2 MIMO help maintain a stable cellular connection. The compact wall-mount or desktop chassis can be powered by a 12V adapter or 802.3af/at PoE, making it a practical option for secure LAN extension and SD-WAN connectivity alongside FortiGate firewalls.

Features

- Dual-SIM support with failover
- 2x2 MIMO
- Receiver diversity
- VLAN support
- CAPWAP support
- Network diagnostics
- GNSS bias
- Secure LAN extension for FortiGate SD-WAN and branch connectivity

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Internal modem: dual-SIM 3G/4G LTE CAT7 M.2 module, 300 Mbps download / 150 Mbps upload
- Regional variant: EMEA, APAC and Brazil carriers
- 5x Gigabit Ethernet RJ45 WAN/LAN configurable ports
- 1x port with 802.3af/at PoE PD
- 3x SMA external antennas
- GPS/GNSS antenna port
- Dual Micro-SIM (3FF) slots
- Bluetooth 2.4 GHz, max 10 dBm
- Power: 12V/3A external adapter or 802.3af/at PoE
- Power consumption: 6.5 W average, 8.5 W maximum
- Dimensions: 38 x 150 x 150 mm
- Weight: 0.37 kg
- Operating temperature: 0 to 40°C, humidity 5 to 95%
- Indoor installation, wall-mount or desktop

FAQs

Q: What LTE speeds does the FEX-201F-EA support?
A: The internal LTE CAT7 M.2 modem supports up to 300 Mbps download and 150 Mbps upload, depending on carrier and signal conditions.

Q: Which regions is the EA variant designed for?
A: The FEX-201F-EA is the variant for EMEA, APAC and Brazil carriers.

Q: Can the FortiExtender 201F be powered over Ethernet?
A: Yes. One of the five GE ports accepts 802.3af/at PoE as a powered device, or you can use the 12V/3A external power adapter.

Q: Does it support dual SIM failover?
A: Yes. It has two Micro-SIM (3FF) slots and supports dual-SIM failover between carriers.

Q: Is this unit suitable for outdoor use?
A: No. The FEX-201F-EA is an indoor unit rated for 0 to 40°C operation and can be wall-mounted or placed on a desktop.

Q: Does it include GPS?
A: It provides a GPS/GNSS antenna port for location-aware deployments.
