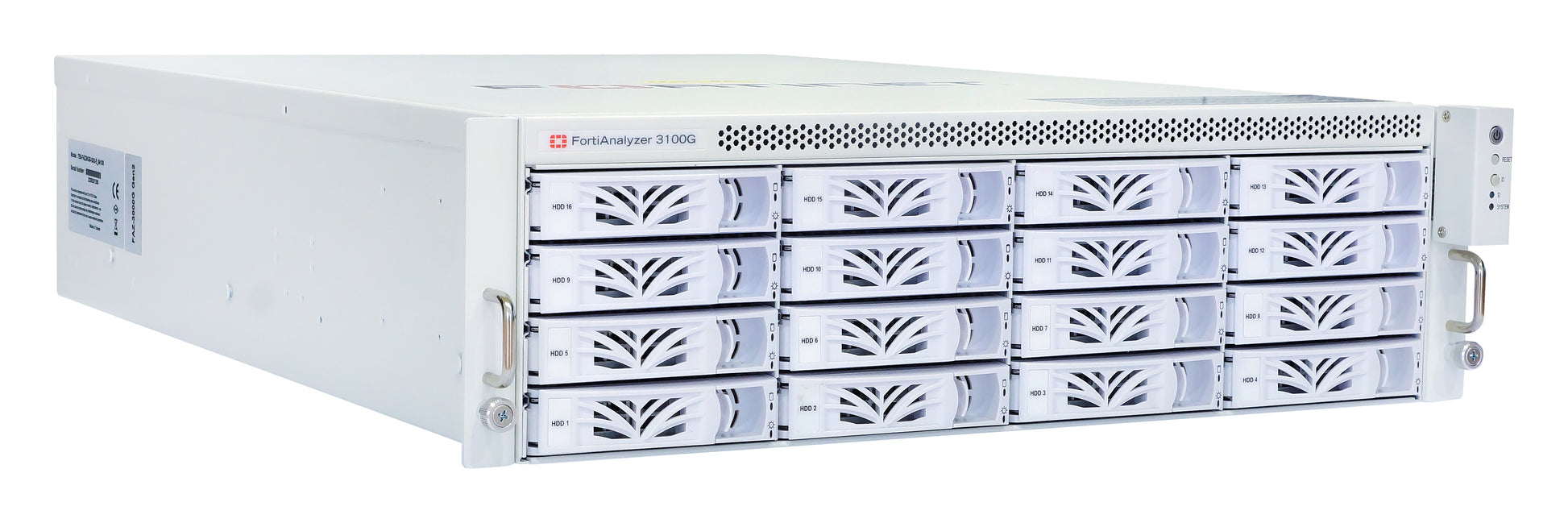

• Fortinet FortiAnalyzer-3100G white rack server with perforated panel and drive bays

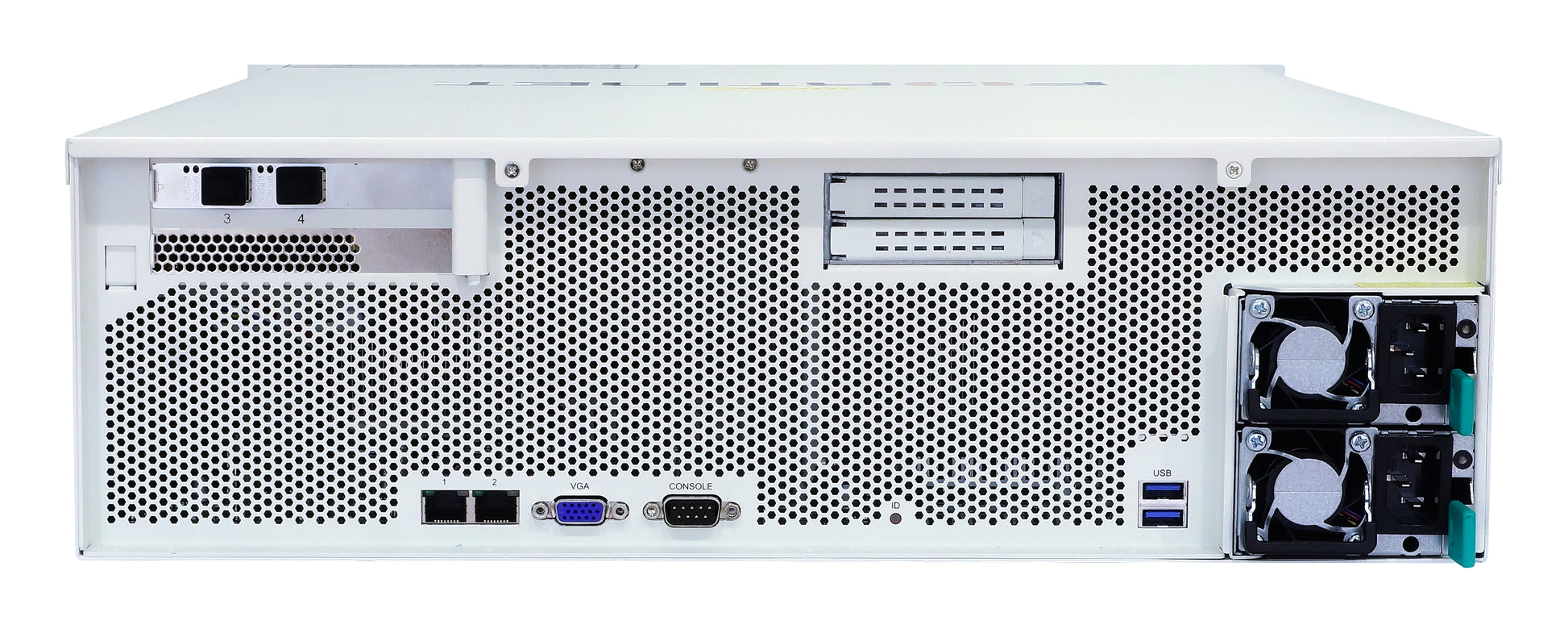

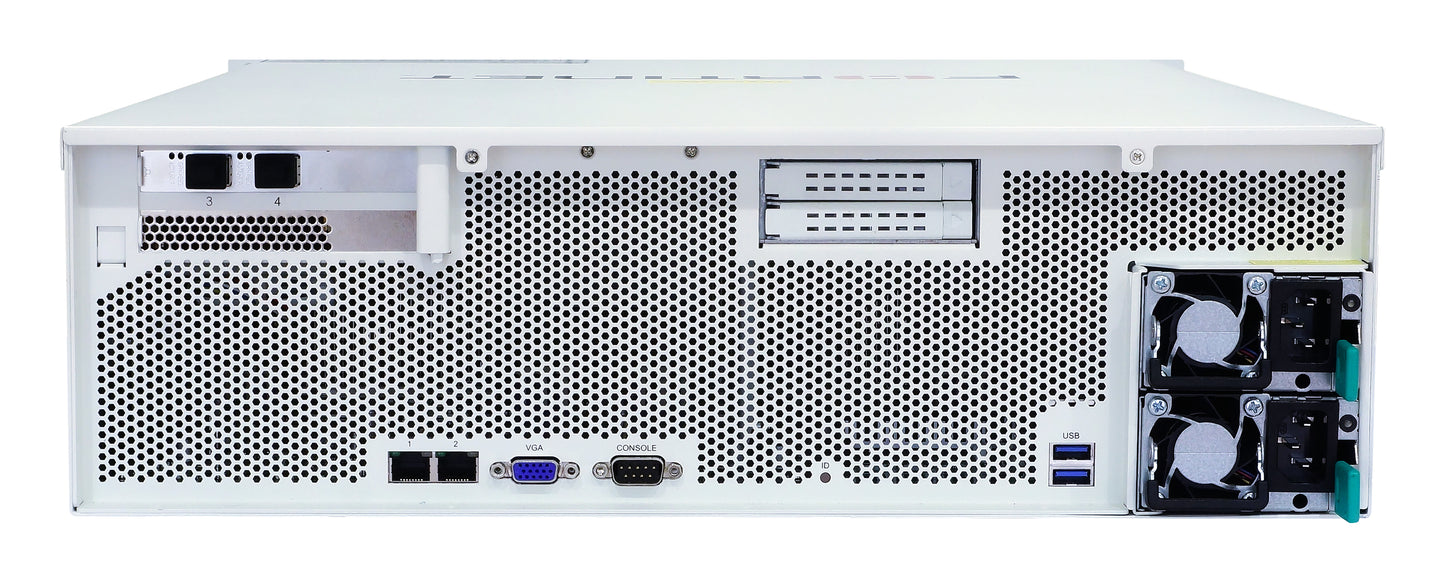

  • Rear view of Fortinet FortiAnalyzer-3100G FAZ-3100G server rack with ports and fans

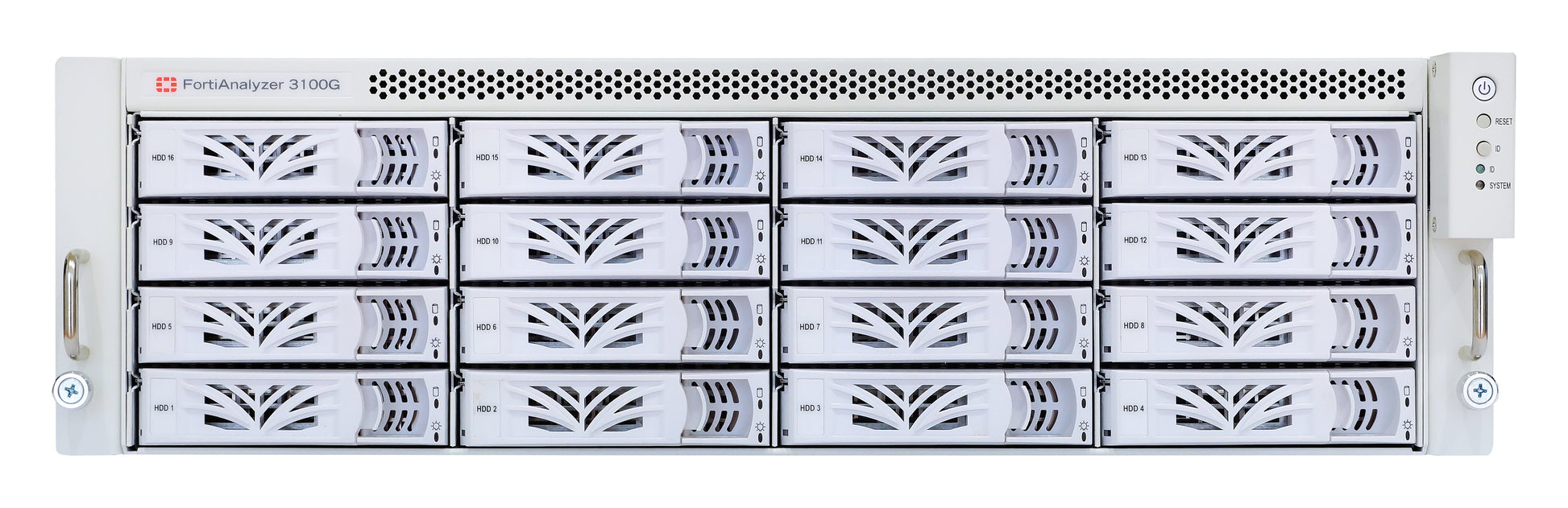

  • Fortinet FAZ-3100G FortiAnalyzer-3100G server rack with perforated front panel and 64TB drive bays
1 3

Fortinet

Fortinet FAZ-3100G | FortiAnalyzer 3100G Log Analysis Appliance, 3000 GB/Day

Fortinet FAZ-3100G | FortiAnalyzer 3100G Log Analysis Appliance, 3000 GB/Day

Authorised Fortinet Partner

FAZ-3100G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiAnalyzer 3100G is a 3 RU rackmount centralized log and analysis appliance that handles up to 3000 GB/day of logs for the Fortinet Security Fabric. It combines 64 TB of raw storage (56 TB usable after RAID) with 2x GE RJ45 and 2x 25GE SFP28 interfaces, and supports up to 4000 devices or VDOMs, making it suited to large enterprise and service provider logging, analytics and reporting.

Hardware RAID with hot-swappable self-encrypting drives, redundant hot-swap power supplies and a Trusted Platform Module support resilient, secure operation. The appliance sustains 42,000 logs/sec in analytic mode and 60,000 logs/sec in collector mode, and works with FortiGuard services including IOC and Outbreak Detection, Security Automation, OT Security and Security Rating and Compliance.

Features

- Centralized log collection, analytics and reporting for the Fortinet Security Fabric
- 25GE SFP28 connectivity for high-speed log ingestion
- Hardware RAID with hot-swappable self-encrypting (SED) drives
- Dual redundant hot-swap power supplies
- Trusted Platform Module (TPM) for hardware security
- Supports FortiGuard IOC and Outbreak Detection, Security Automation, OT Security, Security Rating and Compliance, Threat Intel Platform, FortiAI and SOCaaS services
- Enterprise Bundle and Hardware Bundle options available

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Up to 3000 GB/day of logs
- Interfaces: 2x GE RJ45, 2x 25GE SFP28
- Storage: 64TB raw (16x 4TB 3.5" SAS SED HDD) plus 3.84TB (2x 1.92TB 2.5" NVMe SSD)
- Usable storage after RAID: 56 TB
- RAID levels supported: 0/1/1s/5/5s/6/6s/10/50/60, default RAID 50
- Hardware RAID with hot-swappable removable drives
- Analytic sustained rate: 42,000 logs/sec
- Collector sustained rate: 60,000 logs/sec
- Devices/VDOMs (maximum): 4000
- Maximum days of analytics: 30
- Form factor: 3 RU rackmount
- Dimensions (H x W x L): 13.0 x 44.0 x 65.0 cm
- Weight: 31.57 kg
- Redundant hot-swap AC power supplies, 100-127V/10A or 200-240V/5A
- Power consumption: 395 W average, 510 W maximum
- Heat dissipation: 1740.19 BTU/h
- Operating temperature: 0 to 40 C
- Humidity: 5% to 95% non-condensing
- Airflow: front to back
- Trusted Platform Module (TPM)
- Certifications: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

FAQs

Q: How much log volume can the FAZ-3100G handle?
A: It supports up to 3000 GB/day of logs, with a sustained rate of 42,000 logs/sec in analytic mode and 60,000 logs/sec in collector mode.

Q: How much usable storage does it provide?
A: It has 64 TB of raw storage from sixteen 4TB 3.5" SAS SED drives, giving 56 TB usable after RAID, plus two 1.92TB NVMe SSDs. The default RAID level is 50.

Q: What network interfaces does it have?
A: Two GE RJ45 ports and two 25GE SFP28 ports. The SFP28 ports require compatible 25G optics or DAC cables.

Q: How many devices can it manage?
A: It supports up to 4000 devices or VDOMs.

Q: Does it have redundant power?
A: Yes. It includes redundant hot-swap power supplies, so a failed supply can be replaced without taking the appliance offline.

Q: What rack space does it require?
A: It is a 3 RU rackmount appliance, 44.0 cm wide and 65.0 cm deep, weighing 31.57 kg.

Q: Which FortiGuard services can it be used with?
A: It supports FortiGuard IOC and Outbreak Detection, Security Automation, OT Security, Security Rating and Compliance, Threat Intel Platform, FortiAI and SOCaaS Monitoring and Management services.
