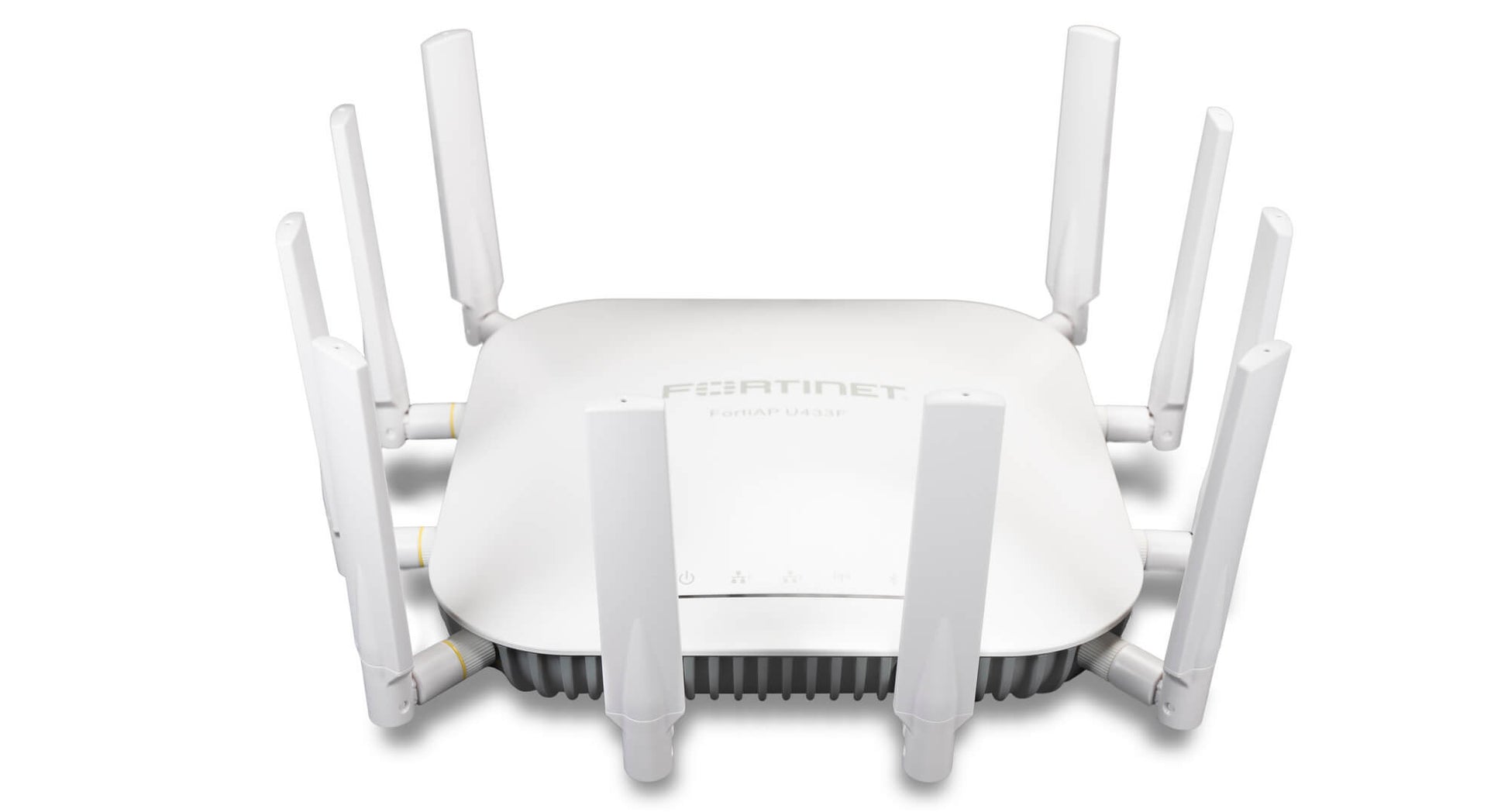

• White Fortinet FAP-U433F-N Wi-Fi router with eight antennas
1 1

Fortinet

Fortinet FAP-U433F-N | FortiAP U433F Tri-Radio Wi-Fi 6 Access Point, 4x4 MIMO, 10 External Antennas

Fortinet FAP-U433F-N | FortiAP U433F Tri-Radio Wi-Fi 6 Access Point, 4x4 MIMO, 10 External Antennas

Authorised Fortinet Partner

FAP-U433F-N

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiAP U433F (FAP-U433F-N) is an enterprise-class indoor Wi-Fi 6 (802.11ax) tri-radio access point with 4x4 MIMO, a combined radio data rate of around 9,908 Mbps and ten external RP-SMA dipole antennas. This N regional domain variant suits high-density offices, campuses and education environments that need flexible RF coverage and strong client throughput.

It pairs a 2.5GE port with a 1GE port for PoE diversity, and includes an integrated BLE radio for iBeacon and location applications. One radio can run dual 5 GHz or be dedicated to scanning while 2.4 GHz coverage is maintained. The access point is managed through a FortiGate integrated controller, FortiWLC or FortiAP Cloud.

Features

- OFDMA and MU-MIMO for improved client throughput and network efficiency
- Dual 5 GHz operation or dedicated scanning radio configuration
- Integrated BLE radio for beacons and location applications
- Dual redundant PoE Ethernet ports for cabling flexibility
- External detachable antennas for flexible RF coverage
- Managed via FortiGate integrated controller, FortiWLC or FortiAP Cloud

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Indoor access point, Wi-Fi 6 (802.11ax Wave 2), 3 radios plus Bluetooth/BLE
- Radio 1: 5 GHz a/n/ac/ax 4x4:4, up to 4,804 Mbps
- Radio 2: 2.4 GHz or 5 GHz (high band) a/b/g/n/ac/ax 4x4:4, up to 4,804 Mbps
- Radio 3: 2.4/5 GHz dual band b/g/n/ac 2x2:2, up to 300 Mbps
- Combined radio data rate approximately 9,908 Mbps
- Channel widths 20/40/80/160 MHz, 1024 QAM
- 10 external RP-SMA dipole antennas (4 dBi at 2.4 GHz, 5 dBi at 5 GHz) plus internal BT/BLE antenna
- 1 x 2.5GE RJ45 port and 1 x GE RJ45 port (PoE diversity)
- Power: 802.3at PoE (25 W) or 12V/3A DC input, approximately 23.6 W consumption
- Security: WPA/WPA2/WPA3 with 802.1X or PSK, captive portal
- N regional domain variant

FAQs

Q: What antennas does the FAP-U433F-N use?
A: It uses ten external RP-SMA dipole antennas (4 dBi at 2.4 GHz and 5 dBi at 5 GHz), plus an internal Bluetooth/BLE antenna.

Q: How is the FortiAP U433F powered?
A: It can be powered by 802.3at PoE (25 W) or a 12V/3A DC supply. Typical power consumption is approximately 23.6 W.

Q: Which network ports does it have?
A: It has one 2.5GE RJ45 port and one 1GE RJ45 port, giving PoE diversity for redundant cabling.

Q: How can the FortiAP U433F be managed?
A: It can be managed through a FortiGate integrated wireless controller, FortiWLC or FortiAP Cloud.

Q: Does it support Bluetooth Low Energy?
A: Yes. It has an integrated BLE radio that supports BLE scanning and iBeacon advertisement for location applications.

Q: What does the N in FAP-U433F-N mean?
A: The N suffix denotes the regional domain variant of the FortiAP U433F. Confirm that the regional domain suits your deployment location before ordering.
