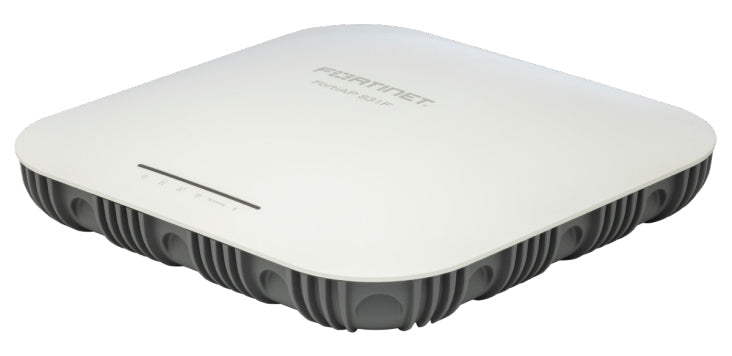

• White and gray Fortinet FAP-831F-N Wi-Fi 6 AP with ribbed sides
1 1

Fortinet

Fortinet FAP-831F-N | Wi-Fi 6 Tri-Radio Indoor Access Point, 8x8 5GHz, 5GbE PoE

Fortinet FAP-831F-N | Wi-Fi 6 Tri-Radio Indoor Access Point, 8x8 5GHz, 5GbE PoE

Authorised Fortinet Partner

FAP-831F-N

Stock Status: Enquire

$1,423.04 inc. GST
$1,293.67 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FAP-831F-N is a Wi-Fi 6 (802.11ax) tri-radio indoor access point built for high-density environments such as lecture halls, auditoriums and busy open-plan offices. It delivers 8x8 MU-MIMO on the 5 GHz band at up to 4,804 Mbps and 4x4 MU-MIMO on 2.4 GHz at up to 1,147 Mbps, with a 5 GbE RJ45 PoE input and a secondary 1 GbE RJ45 port.

A dedicated dual-band scanning radio supports continuous WIPS/WIDS and spectrum analysis without affecting client service, while the integrated BLE radio supports beacons and locationing. The access point is managed by FortiGate or from the cloud, and ceiling, T-rail and wall mounting is supported with the included kit.

Features

- OFDMA for uplink and downlink
- Spatial reuse with BSS colouring
- UL MU-MIMO in 802.11ax mode
- 24/7 WIPS/WIDS and spectrum scanning without affecting client service
- Integrated BLE radio for beacons and locationing
- Managed by FortiGate (FortiOS) or cloud
- Limited lifetime warranty

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 802.11ax (Wi-Fi 6) tri-radio design with 2.4 GHz, 5 GHz and dual-band scanning radios, plus BLE
- Radio 1: 2.4 GHz, 4x4 MU-MIMO, up to 1,147 Mbps
- Radio 2: 5 GHz, 8x8 MU-MIMO (mode 1) or 4x4+4x4 (mode 2), up to 4,804 Mbps
- Radio 3: dual-band 2.4/5 GHz scanning radio, 802.11 a/b/g/n/ac Wave 2, 2x2
- Internal antennas
- 1 x 100/1000/2500/5000 Base-T RJ45 (5 GbE, PoE input)
- 1 x 10/100/1000 Base-T RJ45 (PoE diversity)
- Console port (RJ45)
- Channel widths up to 160 MHz on 5 GHz, 1024-QAM
- Quad-core ARM Cortex-A53 2.2 GHz CPU, 1 GB RAM
- Ceiling, T-rail and wall mounting kit included

FAQs

Q: What Wi-Fi standard does the FAP-831F-N support?
A: It supports Wi-Fi 6 (802.11ax) with backward compatibility for 802.11 a/b/g/n/ac clients.

Q: How is the FAP-831F-N powered?
A: It is powered over Ethernet via the 1 x 100/1000/2500/5000 Base-T RJ45 port, which also provides up to 5 GbE uplink. The 1 GbE RJ45 port provides PoE diversity.

Q: What is the third radio used for?
A: The third radio is a dual-band 2.4/5 GHz scanning radio that handles WIPS/WIDS and spectrum analysis without affecting client service.

Q: How can this access point be managed?
A: It can be managed by a FortiGate using FortiOS or through the cloud.

Q: Where is this access point best deployed?
A: It suits high-density environments such as lecture halls, auditoriums and large open offices where many clients connect simultaneously.

Q: What mounting options are available?
A: Ceiling, T-rail and wall mounting are supported, and the mounting kit is included.
