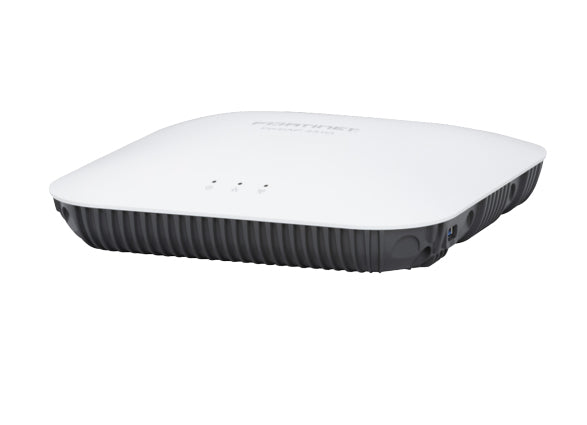

• Fortinet FAP-431G-N white black mesh Wi-Fi 6E router front view
1 1

Fortinet

Fortinet FAP-431G-N | FortiAP 431G Wi-Fi 6E Tri-Band Access Point, 2x 5G RJ45

Fortinet FAP-431G-N | FortiAP 431G Wi-Fi 6E Tri-Band Access Point, 2x 5G RJ45

Authorised Fortinet Partner

FAP-431G-N

Stock Status: Enquire

$1,567.54 inc. GST
$1,425.04 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FAP-431G-N is an indoor Wi-Fi 6E tri-band access point built for high-density enterprise wireless. Three radios cover the 2.4 GHz, 5 GHz and 6 GHz bands with 4x4 MU-MIMO and four spatial streams per radio, delivering up to 1148 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz and 4804 Mbps on 6 GHz. This N regional domain model uses internal antennas and includes 2x 5G RJ45 multi-gigabit ports and a USB Type-A port.

The FAP-431G-N is managed by the built-in WLAN controller on a FortiGate or by FortiEdge and FortiLAN Cloud, bringing wireless into the Fortinet Security Fabric. Integrated BLE and ZigBee support IoT and location services, while rogue AP scanning and WIDS/WIPS add wireless security. It is powered by 802.3at PoE or a 12 Vdc input and mounts to a ceiling, T-rail or wall. Availability of the 6 GHz band depends on local regulatory requirements.

Features

- OFDMA, BSS Coloring (spatial reuse) and Target Wake Time
- Managed by FortiGate integrated WLAN controller or FortiEdge/FortiLAN Cloud
- Built-in NAC functions and zero-trust foundation with unified management console
- Rogue scan and WIPS/WIDS (background or dedicated radio modes), packet sniffer and spectrum analyzer
- Integrated BLE/ZigBee for IoT and location services
- Ceiling, T-rail and wall mounting options

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Tri-radio Wi-Fi 6E (IEEE 802.11ax): 2.4 GHz, 5 GHz and 6 GHz, plus 1 BLE radio
- 4x4 MU-MIMO, 4 spatial streams per radio
- Up to 1148 Mbps (2.4 GHz), 2402 Mbps (5 GHz) and 4804 Mbps (6 GHz)
- Internal PIFA antennas (4x dual-band Wi-Fi, 4x tri-band Wi-Fi/scanning, 1x 2.4 GHz BLE/ZigBee)
- 2x 5G Base-T RJ45 ports (100M/1G/2.5G/5G)
- 1x USB Type-A port
- Channel widths up to 160 MHz on 5 GHz and 6 GHz radios
- Power: 802.3at PoE or 12 Vdc DC input, maximum consumption approx. 31.7 W
- Dimensions: 225 x 225 x 54 mm
- Operating temperature: 0 to 50 °C
- N regional domain; 6 GHz band availability depends on local regulations

FAQs

Q: How is the FAP-431G-N managed?
A: It can be managed by the integrated WLAN controller on a FortiGate or through FortiEdge/FortiLAN Cloud.

Q: What Wi-Fi bands does the FAP-431G-N support?
A: It is a tri-radio Wi-Fi 6E access point covering 2.4 GHz, 5 GHz and 6 GHz, with 4x4 MU-MIMO and up to 160 MHz channel widths on the 5 and 6 GHz radios.

Q: How is the FAP-431G-N powered?
A: It runs from 802.3at PoE or a 12 Vdc DC input, with maximum power consumption of approximately 31.7 W.

Q: Does it have internal or external antennas?
A: This model uses internal PIFA antennas, including a dedicated 2.4 GHz BLE/ZigBee antenna.

Q: What network ports does it include?
A: It has two 5G Base-T RJ45 ports supporting 100M, 1G, 2.5G and 5G speeds, plus one USB Type-A port.

Q: Is the 6 GHz band available in all regions?
A: No. 6 GHz operation depends on the regulatory domain and local authority rules. The -N suffix denotes the N regional domain variant.
