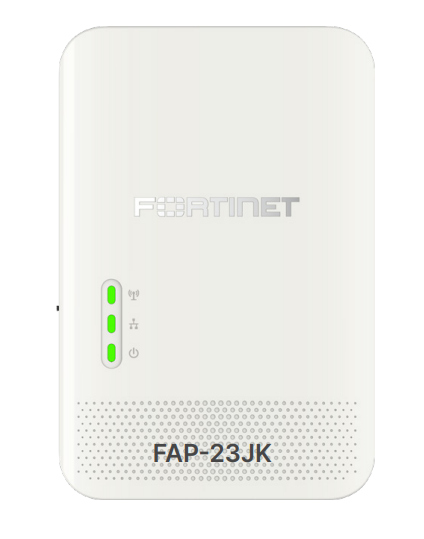

• Fortinet FAP-23JK-N Wi-Fi 7 wall plate AP with green LEDs and grille
1 1

Fortinet

Fortinet FAP-23JK-N | FortiAP-23JK Wi-Fi 7 Tri-Band Wall Plate Access Point, 10G, Region N

Fortinet FAP-23JK-N | FortiAP-23JK Wi-Fi 7 Tri-Band Wall Plate Access Point, 10G, Region N

Authorised Fortinet Partner

FAP-23JK-N

Stock Status: Enquire

$1,330.32 inc. GST
$1,209.38 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FAP-23JK-N is a FortiAP-23JK Wi-Fi 7 wall plate access point for indoor deployments such as hotel rooms, dormitories and private offices. It delivers tri-band 2.4, 5 and 6 GHz coverage with 2x2 MU-MIMO (2+2+2 streams) across three Wi-Fi radios plus an integrated BLE/ZigBee radio, and connects through a 10G multigigabit uplink. This -N region code variant includes the wall plate mounting kit, while the power adapter is ordered separately.

Three 10/100/1000 RJ45 LAN ports let you connect in-room devices, with one port providing 802.3af PoE out when the access point is powered by 802.3bt. A single-gang wall plate form factor fits a standard outlet box, and an RJ45 serial console port supports local management. The access point can be managed by a FortiGate built-in WLAN controller, FortiEdge Cloud or FortiSASE.

Features

- UTP capable with on-AP Application Control and Web Filtering
- 24/7 background scanning across all bands while serving clients
- Integrated BLE and ZigBee for beacons, locationing and IoT
- Managed by FortiGate built-in WLAN controller, FortiEdge Cloud or FortiSASE
- WPA3/WPA2, 802.1X, captive portal, rogue AP scan and WIPS/WIDS
- Fits a standard single-gang outlet box for hotel rooms, dorms and private offices

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 7 (802.11be) tri-band 2.4/5/6 GHz, 2x2 MU-MIMO (2+2+2 streams)
- 3 Wi-Fi radios plus 1 BLE/ZigBee radio (4 radios total)
- Internal antennas
- 1 x 10G multigigabit RJ45 WAN port (802.3bt PoE input)
- 3 x 10/100/1000 RJ45 LAN ports (LAN3 = 802.3af PSE out, 2 x non-PoE)
- 1 x RJ45 RS-232 serial console port
- Power: 802.3bt PoE input or SP-FAP23J-PA-10 DC adapter (ordered separately); PSE out requires 802.3bt input
- Dimensions: 180 x 120 x 40 mm, weight 0.52 kg
- Operating temperature: 0 to 45 °C
- Wall plate mounting kit included
- Region code N (-N)

FAQs

Q: Does the FAP-23JK-N include a power adapter?
A: No. The power adapter is ordered separately. The access point can be powered by 802.3bt PoE on the 10G port or by the SP-FAP23J-PA-10 DC adapter.

Q: Which Wi-Fi bands and streams does the FortiAP-23JK support?
A: It is a Wi-Fi 7 (802.11be) tri-band access point covering 2.4, 5 and 6 GHz with 2x2 MU-MIMO (2+2+2 streams) across three Wi-Fi radios, plus a BLE/ZigBee radio.

Q: Can it supply PoE to a downstream device?
A: Yes. LAN3 provides 802.3af PoE out, but this requires the access point to be powered by an 802.3bt input. The other two LAN ports are non-PoE.

Q: How is the FortiAP-23JK managed?
A: It can be managed by the built-in WLAN controller on a FortiGate, by FortiEdge Cloud, or through FortiSASE.

Q: How is it mounted?
A: It is a wall plate access point and the wall plate mounting kit is included. It fits a standard single-gang outlet box.

Q: What does the -N suffix on FAP-23JK-N mean?
A: The -N suffix is the region code for this SKU. Other region codes of the FortiAP-23JK exist, so confirm the correct code for your deployment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
