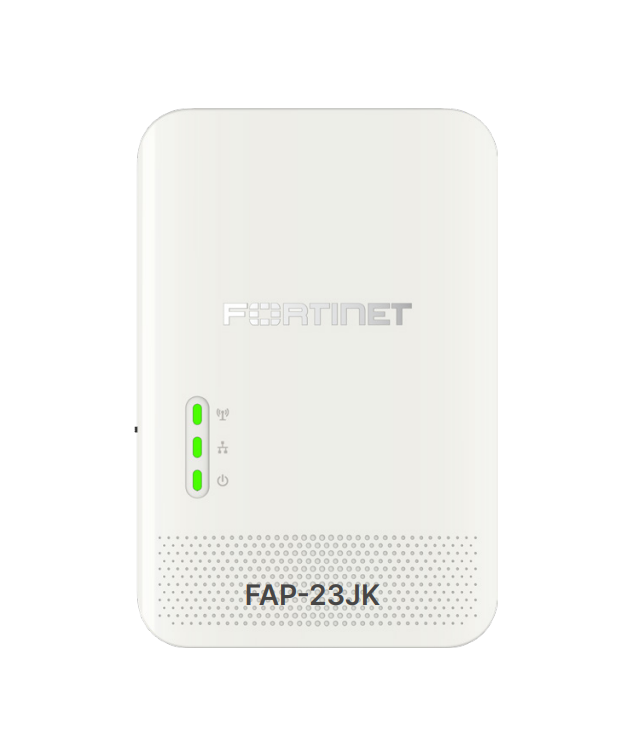

Fortinet FAP-23JK-H | Wi-Fi 7 Tri-Band Wall Plate AP, 2.4/5/6GHz, 1x 10G

The FortiAP-23JK is a Wi-Fi 7 tri-band wall plate access point designed for high-density enterprise deployments in hospitality, education, and corporate environments where a discreet, in-room network connection point is required. Operating across 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously with a 2+2+2 stream configuration and three dedicated radios, it delivers next-generation wireless performance with internal antennas for a clean aesthetic finish. A 1x 10G uplink port ensures backhaul capacity keeps pace with Wi-Fi 7 throughput demands, while Bluetooth and BLE support enables IoT and location-based services integration. The built-in 802.3af PoE PSE port allows a downstream device such as a VoIP handset or IP camera to be powered directly from the wall plate.

The FAP-23JK includes three RJ45 ports (one PoE PSE output and two non-PoE) alongside a serial RJ45 console port, making it a practical wired and wireless consolidation point for guest rooms and open-plan workspaces. It integrates seamlessly into the Fortinet Security Fabric, managed via FortiGate or FortiLAN Cloud for centralised policy enforcement, RF optimisation, and zero-trust network access. A wall plate mounting kit is included in the box for straightforward installation into standard single-gang wall boxes. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

- Wi-Fi 7 tri-band operation enables simultaneous 2.4/5/6 GHz coverage for maximum client capacity and spectral efficiency
- Three dedicated radios with 2+2+2 stream architecture eliminates band-steering bottlenecks in high-density environments
- Integrated 802.3af PoE PSE port powers downstream devices such as VoIP phones or IP cameras directly from the wall plate
- 1x 10G uplink ensures backhaul bandwidth matches Wi-Fi 7 aggregate throughput requirements
- Built-in BT/BLE radio supports IoT device onboarding, asset tracking, and location services
- Wall plate form factor with included mounting kit installs into standard single-gang wall boxes for a clean, professional finish
- Fully managed via FortiGate or FortiLAN Cloud for centralised RF planning, policy enforcement, and security fabric integration
- Zero-trust network access (ZTNA) and Fortinet Security Fabric integration for unified wired and wireless security posture
- RJ45 serial console port simplifies on-site diagnostics and out-of-band management

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
