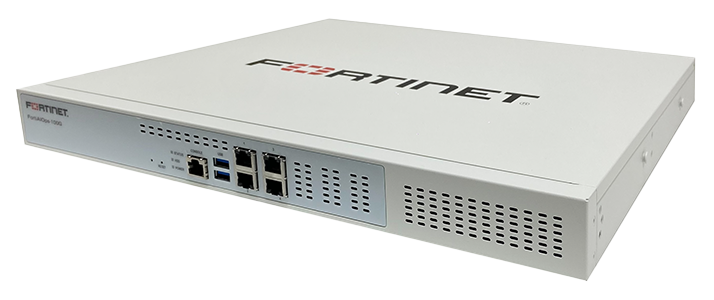

Fortinet FAO-100G | FortiAIOps-100G AIOps Appliance, 4x 2.5GE RJ45, 3.84TB SSD, 1 RU

Fortinet FAO-100G | FortiAIOps-100G AIOps Appliance, 4x 2.5GE RJ45, 3.84TB SSD, 1 RU

Authorised Fortinet Partner

FAO-100G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiAIOps-100G is a 1 RU rackmount AIOps appliance for AI/ML-driven monitoring, troubleshooting and management of FortiAP, FortiSwitch, FortiGate and FortiExtender networks. This 100G appliance model provides 4 x 2.5GE RJ45 interfaces, an RJ45 serial console and a 3.84TB M.2 SSD, keeping sensitive data and AI processing within your own private data centre.

FortiAIOps correlates events and data across the Fortinet Security Fabric, giving visibility across Wi-Fi, Ethernet, SD-WAN and 5G/LTE gateway, from Layer 1 diagnostics to Layer 7 application visibility. It supports up to 30 FortiGates, 90 FortiSwitches, 30 FortiExtenders, 180 FortiAPs and 3,000 stations in combined mode. The appliance ships without a licence, so a FortiAIOps subscription is purchased separately.

Features

- AI/ML-powered insights that correlate events and data across the Fortinet Security Fabric to identify issues quickly
- Monitoring and reporting across Wi-Fi, Ethernet, SD-WAN and 5G/LTE gateway, from Layer 1 diagnostics to Layer 7 application visibility
- FortiAI-Assist conversational GenAI interface for natural-language troubleshooting
- AI-driven ARRP for automated wireless channel optimisation across monitored APs
- AI/ML forecasting and dynamic baselining of SLA metrics (latency, jitter, packet loss) for SD-WAN and LAN
- Per-device health scoring (Good/Fair/Bad) based on triggered SLAs
- Built-in troubleshooting tools including cable test, wireless assurance and automated packet capture analysis
- Spectrum analyser to detect, classify and manage wireless interference
- Data sovereignty: sensitive data and AI processing stays within your private data centre
- Uses the logs FortiAnalyzer already collects, adding no extra network overhead

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1 RU rackmount
- Interfaces: 4 x 2.5GE RJ45
- Console: 1 x RJ45 serial console
- USB ports: 2 x USB 3.0
- Storage: 1 x 3.84TB M.2 SSD
- Trusted Platform Module (TPM) included
- RAID and removable drives: not supported
- Maximum managed devices (combined mode): 30 FortiGates, 90 FortiSwitches, 30 FortiExtenders, 180 FortiAPs, 3,000 stations
- Power supply: single AC, 100-240Vac, 50-60Hz, 6A max
- Power consumption: 98.5 W average, 123 W maximum
- Heat dissipation: 419.8 BTU/h maximum
- Dimensions (H x W x D): 44 x 438 x 420 mm
- Weight: 5.47 kg
- Operating temperature: 0 to 40 C
- Humidity: 5% to 95% relative humidity, non-condensing
- Airflow: front to back
- Compliance: FCC, ICES, CE, UKCA, RCM, VCCI, BSMI, UL, C-mark, CB

FAQs

Q: Does the FortiAIOps-100G include a software licence?
A: No. The appliance ships without any licence. A FortiAIOps subscription (Monitoring, AI Insights or SD-WAN) must be purchased separately, and FortiCare Premium support is available as an add-on.

Q: Which Fortinet devices can the FortiAIOps-100G manage?
A: It monitors and troubleshoots FortiAP, FortiSwitch, FortiGate and FortiExtender devices. In combined mode it supports up to 30 FortiGates, 90 FortiSwitches, 30 FortiExtenders, 180 FortiAPs and 3,000 stations.

Q: What network interfaces does this appliance have?
A: It has 4 x 2.5GE RJ45 interfaces, 1 x RJ45 serial console port and 2 x USB 3.0 ports.

Q: How much storage does the FortiAIOps-100G have and is it redundant?
A: It includes a single 3.84TB M.2 SSD. RAID and removable hard drives are not supported, and it has a single power supply rather than redundant hot-swap supplies.

Q: Is customer data sent to the cloud for AI processing?
A: No. The appliance keeps sensitive data and AI processing inside your private data centre, which supports data sovereignty requirements.

Q: What rack space does it need?
A: It is a 1 RU rackmount unit measuring 44 x 438 x 420 mm and weighing 5.47 kg, with front-to-back airflow.
