• Juniper compatible black silver SFP+ 10GBASE-T copper DAC cable
1 1

Blue Cable Co

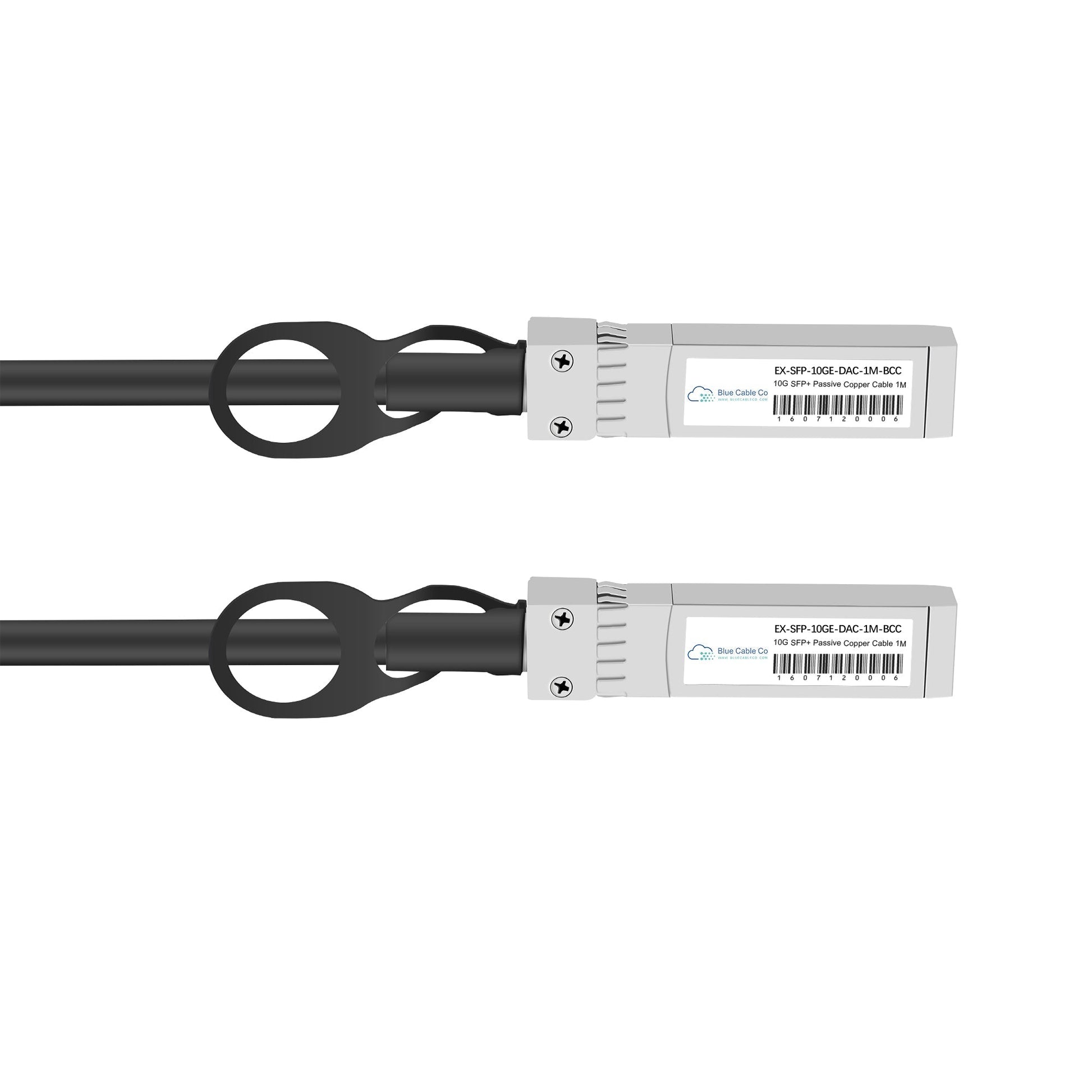

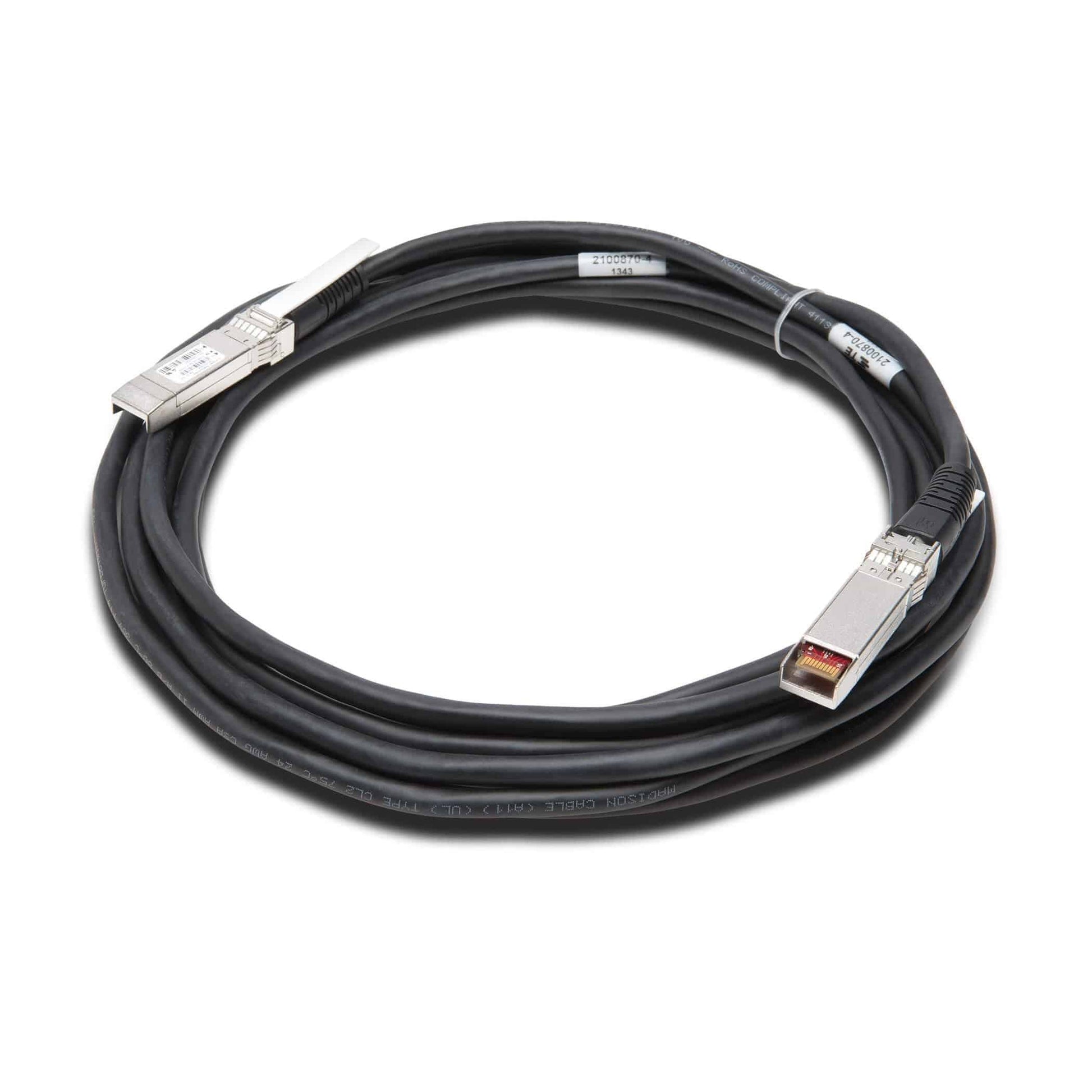

EX-SFP-10GE-DAC-xM-BCC | Juniper Compatible SFP+ to SFP+ DAC Cable, Passive, 10GB, 10GBASE-CU | 1 to 7M

EX-SFP-10GE-DAC-xM-BCC | Juniper Compatible SFP+ to SFP+ DAC Cable, Passive, 10GB, 10GBASE-CU | 1 to 7M

EX-SFP-10GE-DAC-1M-BCC

In stock:11

$35.75 AUD
$35.75 AUD
$35.75 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The EX-SFP-10GE-DAC-xM-BCC is a drop-in compatible replacement for the Juniper EX-SFP-10GE-DAC-1M. This passive twinax cable is plug-and-play with Juniper switches and routers equipped with SFP+ ports. - Complies with SFP+ MSA standards (SFF-8431, SFF-8432), guaranteeing interoperability with MSA-compliant devices - 10 Gbps data rate over passive copper twinax, 30 AWG, SFP+ to SFP+ connectors - 10GBASE-CU standard support for 10 Gigabit Ethernet, also compatible with 8G/4G/2G Fibre Channel applications - Hot-swappable design with latching SFP+ connectors for seamless installation and removal - Available in 1M, 3M, 5M, and 7M lengths to support flexible rack and cross-rack deployments - Low power consumption (typically less than 0.5W per end) and low latency for efficient data centre connectivity

Features

• SFP+ MSA compliance per SFF-8431 and SFF-8432 ensures compatibility across Juniper platforms and other MSA-compliant switches
• Passive copper design eliminates active electronics, delivering sub-microsecond latency and near-zero power draw per link
• Twinaxial copper construction with 30 AWG wire gauge and PVC jacket provides low insertion loss, 100-ohm impedance, and enhanced EMI shielding
• Hot-swappable with quick-release latching SFP+ connectors for live insertion and removal without disrupting adjacent ports
• Supports multiple protocols at data rates from 1.0625 Gbps (1G Fibre Channel) to 10.52 Gbps (10G Fibre Channel and 10G Ethernet)
• Four length options (1M, 3M, 5M, 7M) enable short intra-rack connections or longer cross-rack links without requiring separate transceiver modules
• Extended operating temperature range (0 to 70°C) suits enclosed rack environments and high-density data centre deployments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-10GE-DAC-xM-BCC
Compatible Replacement For: EX-SFP-10GE-DAC-1M
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+ to SFP+
Data Rate: 10 Gbps (supports 1.0625-10.52 Gbps)
Cable Type: Passive Direct Attach Copper (Twinax)
Connector Type: SFP+ (both ends)
Wire Gauge: 30 AWG
Standards: 10GBASE-CU, SFF-8431, SFF-8432, IEEE 802.3
Max Reach: 1M, 3M, 5M, or 7M (depending on length selected)
Power Consumption: Less than 0.5W per connector
Operating Temperature: 0 to 70°C
Available Lengths: 1M, 3M, 5M, 7M

Alternate Part Codes

740-030076, QFX-SFP-DAC-1M, SRX-SFP-10GE-DAC-1M, 40-030077, QFX-SFP-DAC-3M, SRX-SFP-10GE-DAC-3M, 740-031838, QFX-SFP-DAC-5M, 740-030429

FAQs

Q: Will this work in place of the Juniper EX-SFP-10GE-DAC-1M?
A: Yes. The EX-SFP-10GE-DAC-xM-BCC is fully compatible with the Juniper EX-SFP-10GE-DAC-1M. It conforms to the SFP+ MSA specification (SFF-8431, SFF-8432) and delivers 10 Gbps over passive copper. The cable is plug-and-play in Juniper switches and routers with SFP+ ports.

Q: Which Juniper platforms support this cable?
A: This cable works in any Juniper switch or router with SFP+ ports that accept 10GBASE-CU passive DAC connections. It is compatible with Juniper EX, QFX, and other platforms that support the EX-SFP-10GE-DAC series. Verify your equipment has SFP+ ports and accepts passive twinax DAC cables.

Q: What is the difference between passive and active DAC cables for 10G SFP+ links?
A: Passive DAC cables like this one use copper conductors without signal amplification, consuming less than 0.5W per end and supporting distances up to 7 metres. Active DAC cables include signal conditioning electronics and can reach longer distances (10-15 metres) but draw more power and add latency. For runs up to 7 metres, passive cables offer lower cost, lower power, and lower latency.

Q: Can I mix different cable lengths in the same switch or across a link?
A: Yes. Each cable is an independent electrical link between two SFP+ ports. You can deploy 1M cables for top-of-rack server connections and 5M or 7M cables for cross-rack switch uplinks in the same chassis without interference. The SFP+ MSA design and twinax shielding prevent crosstalk between adjacent cables.

Q: Does this cable require any specific switch configuration or EEPROM settings to operate?
A: No special configuration is required. The cable EEPROM is programmed to identify as a Juniper-compatible 10G passive DAC. Insert the cable into both SFP+ ports, and the switch will auto-negotiate the 10 Gbps link. No manual speed, duplex, or media-type settings are necessary for standard 10GBASE-CU operation.
