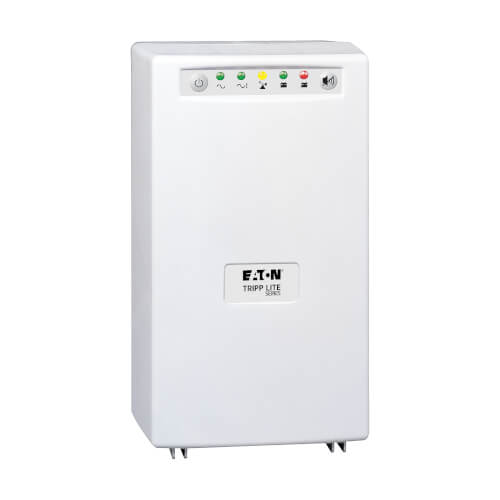

SMX700HG is a medical-grade, line-interactive UPS designed for 230V environments where low leakage current and isolation are required. It provides battery backup, automatic voltage regulation (AVR) and surge protection for connected equipment in patient-care vicinities (when connected to an appropriate hospital-grade outlet).

• Capacity: 700VA / 450W
• Runtime: up to 36 minutes at half load (225W), up to 14.5 minutes at full load (450W)

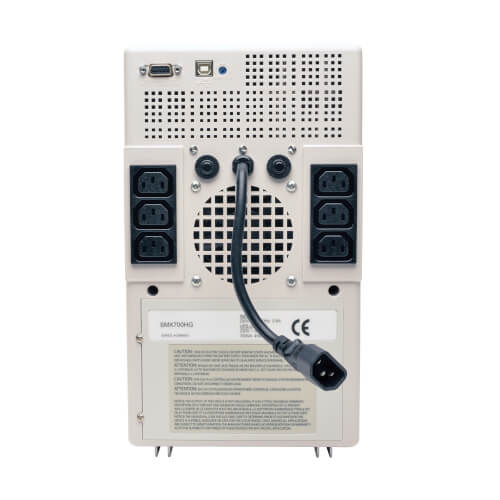

• Outlets: 6 x IEC C13 (hospital-grade), battery backup + surge protection on all outlets
• Input: IEC C14 inlet on short input lead
• Isolation: built-in isolation transformer with Faraday shield for full isolation and common-mode noise reduction
• Low leakage: cumulative leakage current less than 100 microamps (connected load dependent)
• Monitoring: USB and DB9 serial for unattended shutdown with PowerAlert software

Note: No power cord is included. This UPS is intended to remain connected to mains power except during outages. It is not intended for frequent charge/discharge use cases (for example, mobile carts that are often unplugged).

Warranty: 2-year limited warranty.

• Medical-grade UPS for 230V deployments, designed for patient-care vicinity use (when connected appropriately)
• Built-in isolation transformer with Faraday shield for full isolation and common-mode noise reduction
• 700VA / 450W capacity with AVR, corrects 155V to 274V input without battery use
• 6 x hospital-grade IEC C13 outlets, all outlets provide battery backup plus 340J surge protection
• Low leakage current design, less than 100 microamps (cumulative, connected load dependent)
• USB and DB9 monitoring, supports unattended shutdown with PowerAlert software
• Hot-swap battery access door, replacement battery cartridge RBC36SLT

2-year limited warranty
