Eaton Tripp Lite SmartPro SMX1200XLHGL | Medical-Grade UPS 230V 1kVA 750W | LiFePO4 | 6 x C13 | Full Isolation

Eaton Tripp Lite SmartPro SMX1200XLHGL | Medical-Grade UPS 230V 1kVA 750W | LiFePO4 | 6 x C13 | Full Isolation

SMX1200XLHGL

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Eaton Tripp Lite SmartPro SMX1200XLHGL is a 230V, medical-grade, line-interactive tower UPS built for patient-care environments. It provides battery backup, automatic voltage regulation (AVR) and full isolation to help protect sensitive medical equipment from blackouts, brownouts and surges.

  • Capacity: 1000VA / 750W
  • Battery: long-life lithium iron phosphate (LiFePO4)

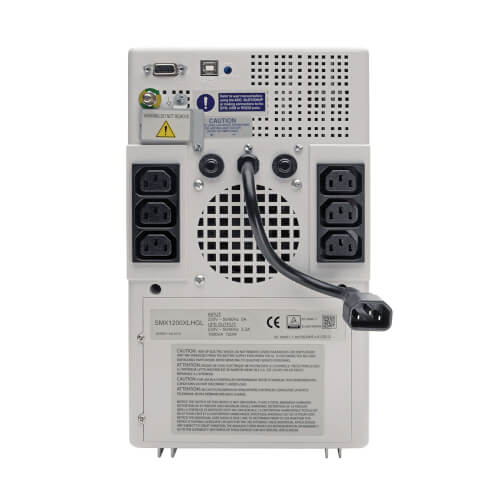

  • Outlets: 6 x IEC C13 hospital-grade outlets (battery backup + surge protection)
  • Full isolation: built-in isolation transformer with Faraday shield helps remove common-mode noise
  • AVR: corrects low and high voltage without draining the battery
  • Monitoring: USB + DB9 serial for monitoring and unattended shutdown via PowerAlert

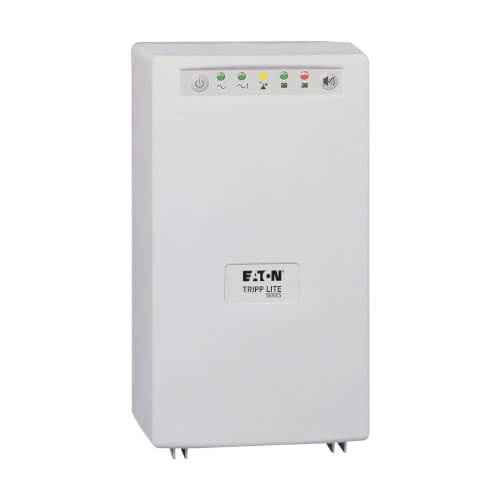

Designed for quiet clinical areas, the front-panel LEDs and alarm reporting provide clear status for line power, battery operation, overload and fault conditions.

Features

• Medical-grade 230V UPS for hospital and patient-care environments
• 1kVA / 750W line-interactive protection with AVR, stabilises input from 155V to 274V
• LiFePO4 lithium battery, rated 10,000 cycles and up to 30x the cycle life of comparable SLA batteries
• Full isolation via isolation transformer with Faraday shield, helps remove common-mode noise
• 6 x IEC C13 hospital-grade outlets, all provide battery backup plus 340J surge protection
• USB and DB9 serial monitoring, supports unattended shutdown with PowerAlert
• Factory-muted alarm plus front-panel LEDs for status reporting in quiet clinical areas
• Hot-swap battery access door, replacement battery cartridge RBC53L

Warranty

2-year limited warranty

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Part Number: SMX1200XLHGL
UPS Topology: Line-Interactive
Application: Hospital/Medical, approved for use within the Patient Care Vicinity

Capacity:
- 1000VA (1kVA) / 750W (0.75kW)

Input:
- Nominal Input Voltage: 230V AC
- Input Phase: Single-phase
- Rated Input Current (max load): 5A
- Maximum Input Amps: 5A
- Input Connection Type: C14 inlet
- Input Cord Length: 0.2 m
- Recommended Electrical Service: 10A 230V

Output:
- Nominal Output Voltage (supported): 220V / 230V / 240V
- Frequency: 50/60 Hz (automatic selection)
- Output Voltage Regulation (line mode): -18%, +8%
- Output Waveform (battery mode): PWM sine wave
- Outlets: 6 x IEC C13 (hospital-grade)
- Individually Controllable Load Banks: No

Battery:
- Battery Type: Lithium-ion (LiFePO4)
- Runtime (full load 750W): 11 minutes
- Runtime (half load 375W): 27.5 minutes
- Expandable Runtime: No
- DC System Voltage: 36V DC
- Recharge Rate: less than 4.5 hours (10% to 90%)
- Hot-swap Battery: Yes (battery access door)
- Replacement Battery Cartridge: RBC53L
- Typical Battery Lifespan: 3 to 6 years (usage dependent)

Voltage Regulation (AVR):
- Input voltage range: 155V to 274V AC
- Overvoltage correction: 245V to 274V reduced by 9%
- Undervoltage correction: 183V to 199V boosted by 10%
- Severe undervoltage correction: 156V to 182V boosted by 21%

Surge / Noise Suppression:
- EMI/RFI Noise Suppression: Yes
- Surge Suppression Rating: 340 joules
- Surge Response Time: Instantaneous

User Interface / Controls:
- LED Indicators: 5 LEDs (line power, battery power, overload, voltage regulation, battery low/replace)
- Audible Alarm: factory muted for silent operation, can be enabled via PowerAlert
- Switches: 2 front-panel push buttons (system enable, self-test, alarm cancel)

Communications:
- Interfaces: USB, DB9 serial
- Network Management Card: Not supported

Transfer:
- Transfer Time: 2 to 4 ms
- Low Voltage Transfer to Battery: 155V
- High Voltage Transfer to Battery: 274V
- Cold Start: Supported

Physical:
- Form Factor: Tower
- Cooling: rear-exit fan
- Dimensions (W x H x D): 191 x 323 x 231 mm
- Unit Weight: 20.64 kg
- Shipping Weight: 22.14 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -15°C to 50°C
- Housing Material: PVC

Compliance:
- Certifications: UL 60601-1
- Approved to EN60601-1-2:2015 (4th Edition)
- Compliance: RoHS, CE (Europe)

Warranty:
- 2-year limited warranty (international)

In the box:
- UPS (tower)
- USB monitoring cable, 1.8 m
- DB9 serial monitoring cable, 1.8 m
- Owner’s manual

FAQs

Q1: Is the SMX1200XLHGL suitable for medical and patient-care areas?
A1: Yes. It is a medical-grade UPS certified to UL 60601-1 and is approved for use within the Patient Care Vicinity when installed appropriately.

Q2: What outlets does it provide?
A2: It provides 6 x IEC C13 hospital-grade outlets. All outlets provide battery backup and surge protection.

Q3: What runtime should I expect?
A3: Eaton lists 27.5 minutes at half load (375W) and 11 minutes at full load (750W). Runtime varies with load and conditions.

Q4: Can I add external batteries to extend runtime?
A4: No. This model is listed as non-expandable runtime, so it does not support external battery packs for longer runtime.

Q5: How do I monitor it and automate shutdown?
A5: It includes USB and DB9 serial connections (cables included) and supports PowerAlert software for monitoring and unattended shutdown.
