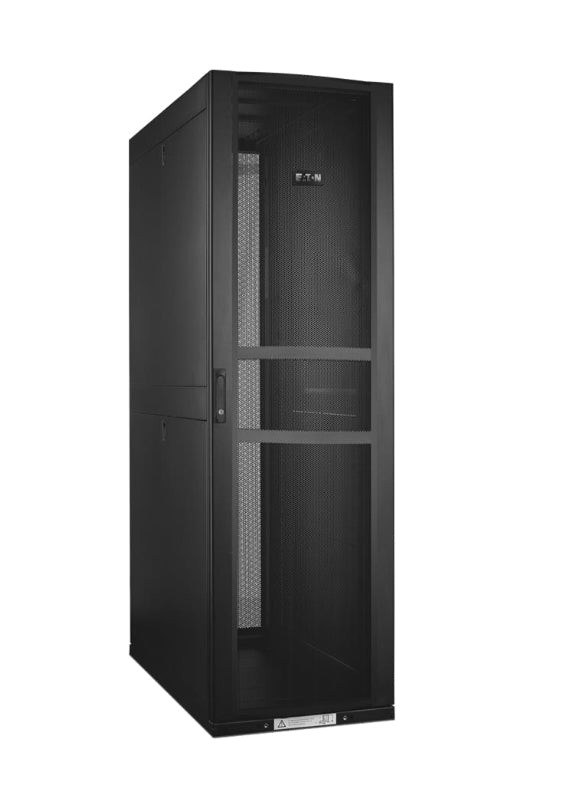

• Black Eaton REV27610PB 27U mt-rack server enclosure with mesh door
1 1

Eaton

Eaton REV27610PB | RE Series Premier 27U Server Rack, 600W x 1070D, Black

Eaton REV27610PB | RE Series Premier 27U Server Rack, 600W x 1070D, Black

Authorised Eaton Partner

REV27610PB

Stock Status: Enquire

$1,865.29 inc. GST
$1,695.72 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton REV27610PB is a 27U, 19-inch floor-standing server rack enclosure from the RE Series Premier range. It measures 600mm wide by 1070mm deep by 1330mm high, has a static load rating of up to 1500kg, and arrives fully assembled in black (RAL9005), ready for data centre and server room deployment.

The cold-rolled steel enclosure includes high-flow perforated front and rear doors with three-point locking, lockable split side panels, castors, levelling feet and anti-tip brackets. Adjustable EIA/ECA-310 compliant 19-inch mounting rails, tool-less configuration and flexible cable management simplify equipment installation, and a pack of 50 cage nuts is included.

Features

- High-flow perforated steel front and rear doors
- Swing handles with key lock
- Lockable, horizontally split side panels for easy access
- Top panel with airflow or cable cover plates
- Quick-connect grounding
- Tool-less configuration and optimised PDU mounting
- Flexible cable management
- UL certified (UL 2416, CAN/CSA C22.2); RoHS and CE compliant

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 27U (27 RMU) height
- Dimensions: 600mm W x 1070mm D x 1330mm H
- Static load rating up to 1500kg
- Adjustable EIA/ECA-310 compliant 19-inch mounting rails
- Colour: Black (RAL9005)
- Material: cold-rolled steel
- Front and rear doors with three-point locking
- Castors, levelling feet and anti-tip brackets included
- Cage nuts (pack of 50) included
- Supplied fully assembled

FAQs

Q: What size is the Eaton REV27610PB rack enclosure?
A: It is a 27U enclosure measuring 600mm wide by 1070mm deep by 1330mm high, with adjustable 19-inch mounting rails.

Q: What is the maximum load rating?
A: The enclosure has a static load rating of up to 1500kg.

Q: Does it arrive assembled?
A: Yes, this Premier model is supplied fully assembled.

Q: Is it mobile?
A: It includes castors for repositioning, plus levelling feet and anti-tip brackets for stable installation once in place.

Q: Does it come with cage nuts and mounting hardware?
A: A pack of 50 cage nuts is included, along with castors, levelling feet and anti-tip brackets.

Q: Are the doors and side panels lockable?
A: Yes, the front and rear doors use three-point locking with key-lock swing handles, and the horizontally split side panels are lockable.
