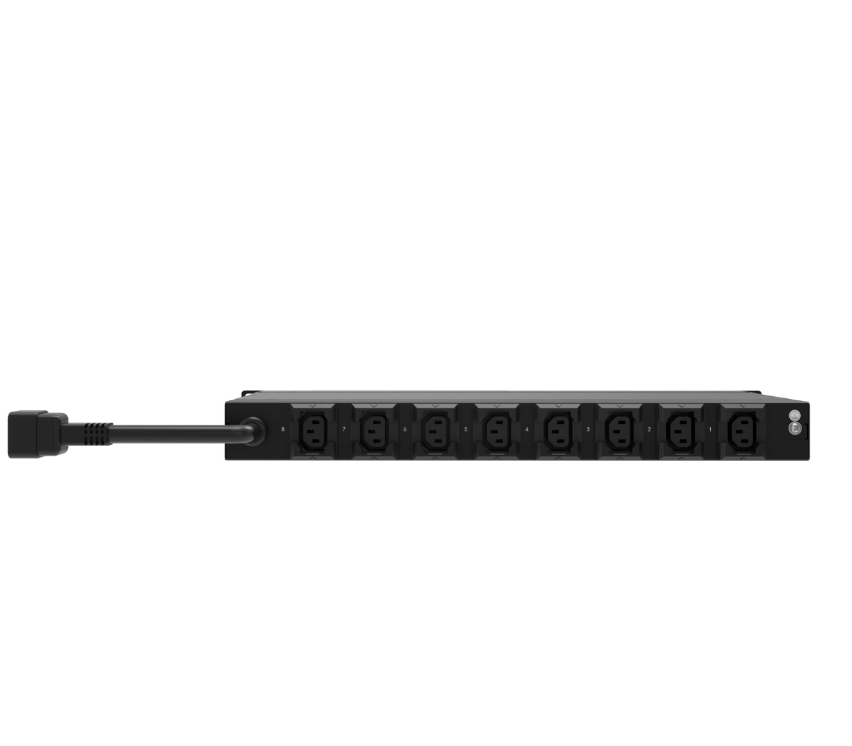

Eaton FLXTSWC20C1 | FlexPDU G2 Switched 1U 1-Phase 16A PDU, IEC C20 Inlet, 8x IEC C13 Outlets

Eaton FLXTSWC20C1 | FlexPDU G2 Switched 1U 1-Phase 16A PDU, IEC C20 Inlet, 8x IEC C13 Outlets

SKU:FLXTSWC20C1

Stock Status: Enquire

Regular price $771.26 AUD
Regular price
$771.26 AUD
$771.26 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Eaton FlexPDU G2 Switched 1U is a 1-phase, 1U rack-mount power distribution unit designed for data centre and server room environments requiring individual outlet-level switching and monitoring. With a 16A IEC C20 inlet and eight IEC C13 output receptacles, it delivers reliable power distribution in a compact, space-efficient form factor suitable for high-density rack deployments. The switched capability allows IT administrators to remotely power cycle individual outlets, reducing the need for physical intervention and supporting efficient remote management of connected equipment. Built to Eaton's FlexPDU G2 standard, this unit offers the dependability and flexibility expected in enterprise and edge infrastructure. Available now at iptrading.com.au — competitive prices and local support.

Features

- Per-outlet remote switching enables individual power cycling without physical rack access
- Compact 1U rack-mount design maximises valuable rack space in high-density environments
- IEC C20 16A inlet provides a robust, industry-standard power connection
- 8x IEC C13 outlets support a wide range of rack-mount servers and network devices
- 1-phase design suits standard data centre power infrastructure
- Part of the Eaton FlexPDU G2 family — engineered for enterprise reliability and flexibility
- Supports improved uptime through remote management and power control capabilities

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form Factor: 1U Rack-Mount
- Phase: 1-Phase
- Input Connector: IEC C20 (16A)
- Input Voltage: 200–240V AC
- Maximum Input Current: 16A
- Output Receptacles: 8x IEC C13
- Switching: Per-Outlet Switched
- Mounting: 0U or 1U Rack Compatible
- Series: Eaton FlexPDU G2

FAQs

Q: What does 'switched' mean on the Eaton FlexPDU G2 SW?
A: A switched PDU allows administrators to remotely turn individual outlets on or off, enabling remote power cycling of connected devices without physical access to the rack — ideal for managing servers, networking equipment, and other IT hardware remotely.

Q: What type of inlet does this PDU use?
A: This unit uses an IEC C20 inlet rated at 16A, which is a standard 3-pin connector commonly used with rack PDUs and compatible with C19 or C20 power cables typically found in data centre environments.

Q: How many outlets does the Eaton FLXTSWC20C1 provide?
A: It provides 8 x IEC C13 output receptacles, suitable for powering standard server and networking equipment that uses IEC C14 power cords.

Q: Is this PDU suitable for Australian data centre use?
A: Yes. The unit operates on 200–240V AC which is compatible with the Australian mains supply. It uses an IEC C20 inlet, so an appropriate Australian plug-to-C19 or hardwired connection would be required depending on your installation.

Q: Can I purchase the Eaton FLXTSWC20C1 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist. You can purchase this unit directly online or contact our team for pricing, availability, and volume inquiries with local support.

Q: What is the difference between a switched PDU and a metered PDU?
A: A metered PDU monitors and displays power consumption but does not allow remote control of outlets. A switched PDU (like this unit) allows remote on/off control of individual outlets, while some models combine both switching and metering in a single unit.
