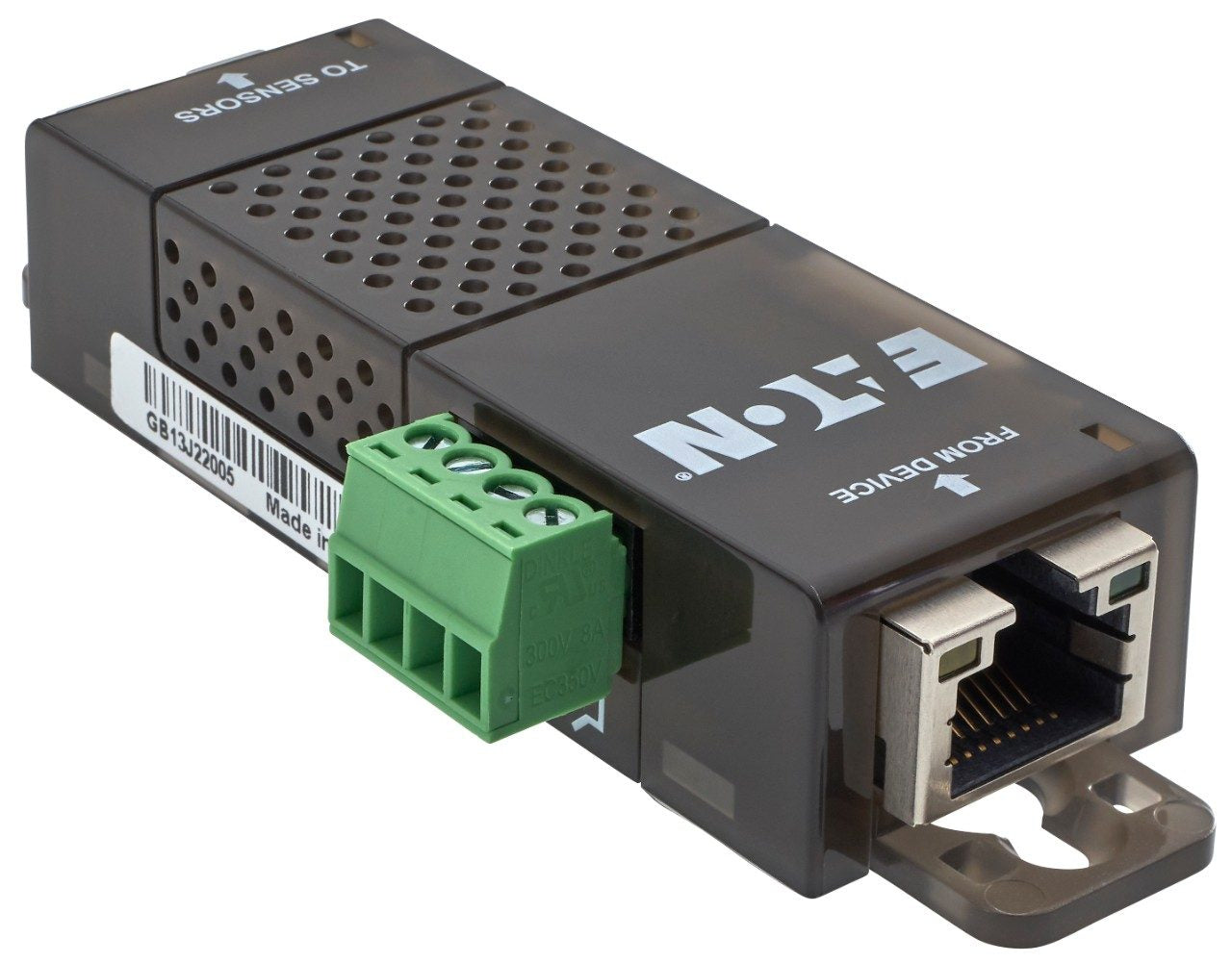

Eaton EMPDT1H1C2 | Environmental Monitoring Probe Gen 2, Temp & Humidity, 2 Dry Contacts

Eaton EMPDT1H1C2 | Environmental Monitoring Probe Gen 2, Temp & Humidity, 2 Dry Contacts

Authorised Eaton Partner

EMPDT1H1C2

In stock:85

$260.67 inc. GST
$236.97 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton EMPDT1H1C2 Environmental Monitoring Probe Gen 2 is a temperature and humidity sensor with two dry-contact inputs, built for remote monitoring of rack and server room conditions. It connects to Eaton Gigabit Network cards (Network-M2 and Network-M3) and compatible rack PDUs, so environmental data can be viewed over SNMP or a web browser around the clock.

The probe is daisy-chainable, with up to three per host, and each module accepts up to two additional contact sensors such as door, vibration or smoke detectors. Bottom, side and tie-wrap mounting options suit UPS and PDU installations, including airflow measurement at the front and rear door intake. It works with Eaton's power management software for email alarms and automated actions such as shutdown.

Features

- Remote 24/7 monitoring of temperature, humidity and contact status through SNMP or a web browser
- Daisy-chainable, so several sensors can connect to one host
- Translucent case with an integrated LED shows the status of each sensor at a glance
- Tie-wrap mounting options measure airflow at the front and rear door intake
- Supports up to two additional contact sensors per module, such as door, vibration or smoke sensors
- Works with Eaton's power management software for email alarms and automated actions such as shutdown

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 1 x temperature sensor
- 1 x humidity sensor
- 2 x dry-contact status inputs
- Temperature range: 0 to 70 C (32 to 158 F), accuracy +/-1 C
- Relative humidity range: 10 to 90%, accuracy +/-5%
- Daisy-chainable, up to 3 probes per host
- Up to 2 additional contact inputs per module, 6 in total with daisy chain
- Compatible with Network-M2, Network-M3, and Eaton rack PDUs G3 (firmware 4.x or later), G3HD, G3+ and G4
- Mounting: bottom and side mounting for UPS and PDU installation, tie-wrap mounting
- Dimensions (H x W x D): 57.6 x 37.6 x 29.3 mm
- Weight: 34 g
- Operating temperature: 0 to 70 C
- Operating humidity: 10 to 90%
- Compliance: CE Marked
- Package contents: probe, USB-RJ45 adapter cable (35 cm), RJ45 extension adapter, mounting accessories, manual

FAQs

Q: Which Eaton devices is the EMPDT1H1C2 compatible with?
A: It is compatible with Eaton Network-M2 and Network-M3 Gigabit Network cards, and with Eaton rack PDUs G3 (firmware 4.x or later), G3HD, G3+ and G4.

Q: What does this probe measure?
A: It includes one temperature sensor (0 to 70 C, +/-1 C) and one humidity sensor (10 to 90% relative humidity, +/-5%), plus two dry-contact inputs for status monitoring.

Q: Can I connect more than one probe to a single host?
A: Yes. The probe is daisy-chainable, with up to three probes per host. With daisy chaining, up to six additional contact inputs are available in total.

Q: What can I connect to the dry-contact inputs?
A: Each module supports up to two additional contact sensors, such as door, vibration or smoke sensors.

Q: How is the environmental data accessed?
A: Readings and alarms are available remotely through SNMP or a web browser, and Eaton's power management software can send email alarms and trigger automated actions such as shutdown.

Q: How is the probe mounted?
A: It supports bottom and side mounting for UPS and PDU installations, and tie-wrap mounting to measure airflow at the front and rear door intake.
