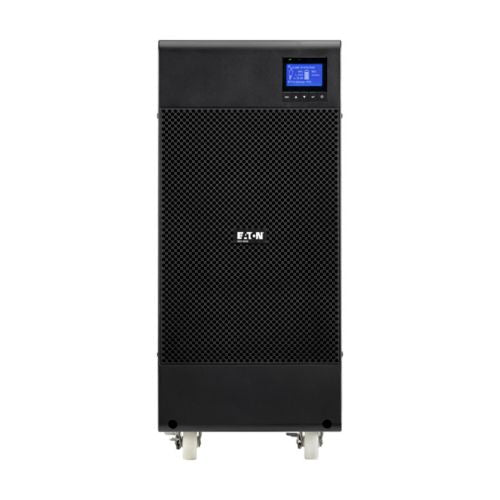

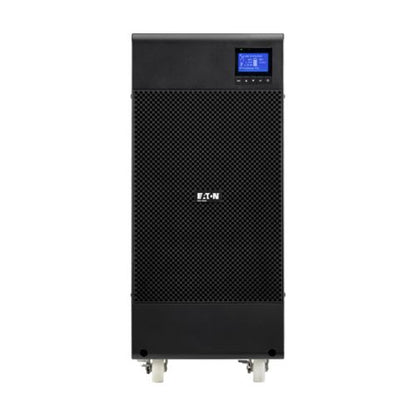

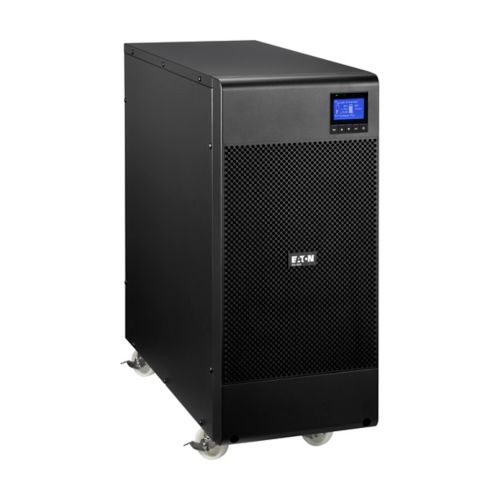

Eaton 9SX6KI-AUCC UPS | 6kVA 5400W Online Double Conversion | 240V Hardwired | Conformally Coated

Eaton 9SX6KI-AUCC UPS | 6kVA 5400W Online Double Conversion | 240V Hardwired | Conformally Coated

9SX6KI-AUCC

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Eaton 9SX6KI-AUCC is a high-performance, online double-conversion UPS for 240V single-phase sites that need clean, stable power for critical loads. It continuously regulates voltage and frequency and delivers 6kVA / 5400W output capacity for servers, storage, comms rooms and edge infrastructure.

  • Online double conversion (VFI) for consistent output, even with poor mains power
  • 240V single-phase design with separate bypass input support
  • High efficiency for reduced energy and cooling overheads
  • Hot-swappable batteries and internal bypass for service continuity
  • Conformally coated variant for improved protection in harsh environments

Important: This AUCC variant is supplied as hardwired input and hardwired output. Installation should be performed by a qualified electrician. Runtime depends on load and whether external battery modules are added.

Features

• 6kVA / 5400W online double-conversion UPS for continuous voltage and frequency regulation
• High efficiency, >94% in double conversion at full load, and >98% in high efficiency mode
• 240V single-phase design with separate bypass input support
• Tight output regulation, ±2% steady state, with low harmonic distortion, <3% THD on linear loads
• Hot-swappable battery design and internal bypass for service continuity during maintenance
• Conformally coated AUCC variant for extra protection in harsh environments
• Supports external battery modules, up to 4 can be connected (EBMs sold separately)

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Part Number: 9SX6KI-AUCC
Series: Eaton 9SX
Topology: Online double conversion, IGBT PWM (VFI-SS-111)
Capacity: 6000VA / 5400W
Input: 240V AC, single-phase (1 Ph 3 wire), with separate bypass input
Input Voltage Range (100% load): 190V to 276V
Input Voltage Range (33% load): 120V to 276V
Max Input Current (240V): 27A
Input Power Factor (double conversion, 100% load): >0.99
Input Current Distortion: <5% THDi (at rated input current)

Output: 1 Ph 3 wire
Output Voltage (configurable): 200V / 208V / 220V / 230V / 240V
Output Voltage Regulation (steady state): ±2%
Output THD (linear load): <3%
Output THD (non-linear load): <5%
Crest Factor: 3:1
Output Frequency: 50Hz or 60Hz (configurable)
Output Frequency Variation: ±0.1 Hz

Efficiency (double conversion, 100% load): >94%
Efficiency (high efficiency mode, 100% load): >98%

Mechanical:
- Form Factor: Tower
- Dimensions (W x D x H): 244 x 542 x 575 mm
- Weight: 65.5 kg

Compliance (AU model family):
- RCM
- IEC/EN 62040-1, IEC/EN 62040-2, EN 62040-3

Warranty: 2 years (typical, confirm with your quotation)
Notes:
- Conformally coated variant (AUCC)
- Hardwired input and hardwired output (AUCC)

FAQs

Q1: What UPS topology is the 9SX6KI-AUCC?
A1: It is an online double-conversion UPS (VFI) that continuously regulates voltage and frequency to deliver stable output power.

Q2: What is the real power rating in watts?
A2: This model is rated at 6000VA and 5400W.

Q3: Is this a plug-in UPS or hardwired?
A3: The 9SX6KI-AUCC variant is supplied as hardwired input and hardwired output, so installation should be performed by a qualified electrician.

Q4: Can I extend the runtime with external battery modules?
A4: Yes. The 9SX tower models support external battery modules, and up to four EBMs may be connected (EBMs sold separately). Runtime depends on load and the number of EBMs.

Q5: What does “AUCC” mean on this model?
A5: AUCC identifies the conformally coated variant, which is intended to provide additional protection for the electronics in harsher environments compared with the standard model.

Datasheet

Download product datasheet
