Dell R7715 | PowerEdge R7715 2U Rack Server, AMD EPYC 9005, DDR5

Authorised Dell Partner

SKU:R7715

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

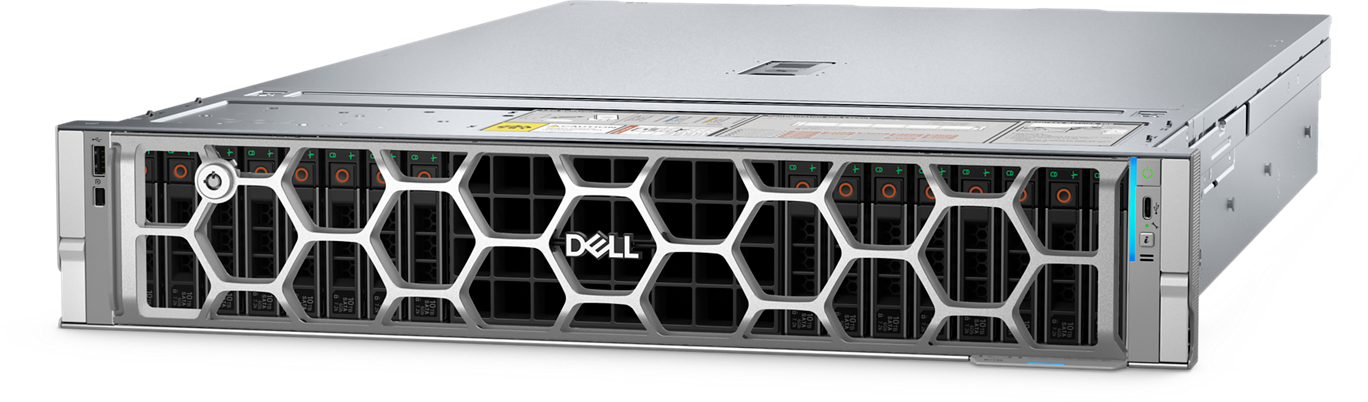

The Dell PowerEdge R7715 is a 2U single-socket rack server built around a 5th Generation AMD EPYC 9005 Series processor with up to 160 cores. It is suited to virtualisation, databases, high-performance computing and software-defined storage, with GPU support and a choice of air or direct liquid cooling.

With 24 DDR5 RDIMM slots supporting up to 6TB of memory, up to 8 PCIe Gen5 slots and two OCP NIC 3.0 slots, the R7715 gives plenty of room for memory, I/O and storage expansion. Front drive options include 3.5-inch and 2.5-inch SAS/SATA, U.2 NVMe and EDSFF E3.S configurations, managed remotely through iDRAC10.

Features

- Single-socket 5th Generation AMD EPYC 9005 processor with up to 160 cores
- 24 DDR5 RDIMM slots supporting up to 6TB of memory
- Dual OCP NIC 3.0 slots and up to 8 PCIe Gen5 slots for I/O expansion
- GPU support for up to 3 x 400W double-width or 6 x 75W single-width cards
- Air cooling or Direct Liquid Cooling options
- iDRAC10 remote management with custom user roles and a streamlined licence structure
- Chassis intrusion detection
- Flexible front drive configurations including SAS/SATA, U.2 NVMe and EDSFF E3.S
- Optimised for virtualisation with lower per-core licensing costs

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack server, single socket
- Processor: One 5th Generation AMD EPYC 9005 Series processor, up to 160 cores
- Memory: 24 x DDR5 DIMM slots, registered ECC RDIMM only, up to 6TB, speeds up to 5200 MT/s (1DPC)
- Storage controllers: PERC H365i, H965i, H975i; HBA465e (external, non-RAID)
- Internal boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- Front drive bays: 2 x U.2; 12 x 3.5-inch SAS/SATA; 8 x 2.5-inch Universal, 16 x 2.5-inch SAS/SATA or 24 x 2.5-inch SAS/SATA; 16 x 2.5-inch SAS/SATA + 8 x U.2 NVMe; EDSFF E3.S in 8, 16, 32 or 40-bay options
- PCIe: up to 8 PCIe Gen5 slots (x16 connectors); 2 x OCP NIC 3.0 slots
- GPU support: up to 3 x 400W double-width or up to 6 x 75W single-width
- Power supplies: Platinum 800W and 1100W redundant AC or DC PSUs
- Cooling: air cooling or Direct Liquid Cooling (DLC); up to six hot-plug fans
- Dimensions: 86.8mm (H) x 482.0mm (W) x 802.4mm (D) with bezel
- Ports: 1 x 1GbE dedicated BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x USB 2.0 Type-C (host/BMC direct), 1 x USB 2.0 Type-A (optional), 1 x Mini DisplayPort (optional), 1 x VGA

FAQs

Q: How many processors does the PowerEdge R7715 support?
A: The R7715 is a single-socket server supporting one 5th Generation AMD EPYC 9005 Series processor with up to 160 cores.

Q: How much memory can the R7715 hold?
A: It has 24 DDR5 DIMM slots supporting registered ECC RDIMMs only, for up to 6TB at speeds up to 5200 MT/s (1DPC).

Q: Can the R7715 be fitted with GPUs?
A: Yes. It supports up to 3 x 400W double-width GPUs or up to 6 x 75W single-width GPUs.

Q: What storage options are available in the front bays?
A: Options include 12 x 3.5-inch SAS/SATA, 8, 16 or 24 x 2.5-inch configurations, mixed SAS/SATA and U.2 NVMe layouts, and EDSFF E3.S in 8, 16, 32 or 40-bay options.

Q: What cooling options does the R7715 offer?
A: It can be configured with standard air cooling using up to six hot-plug fans, or with Direct Liquid Cooling (DLC).

Q: How is the R7715 managed remotely?
A: It uses iDRAC10 remote management, which provides custom user roles and a streamlined licence structure, with a dedicated 1GbE BMC Ethernet port.
