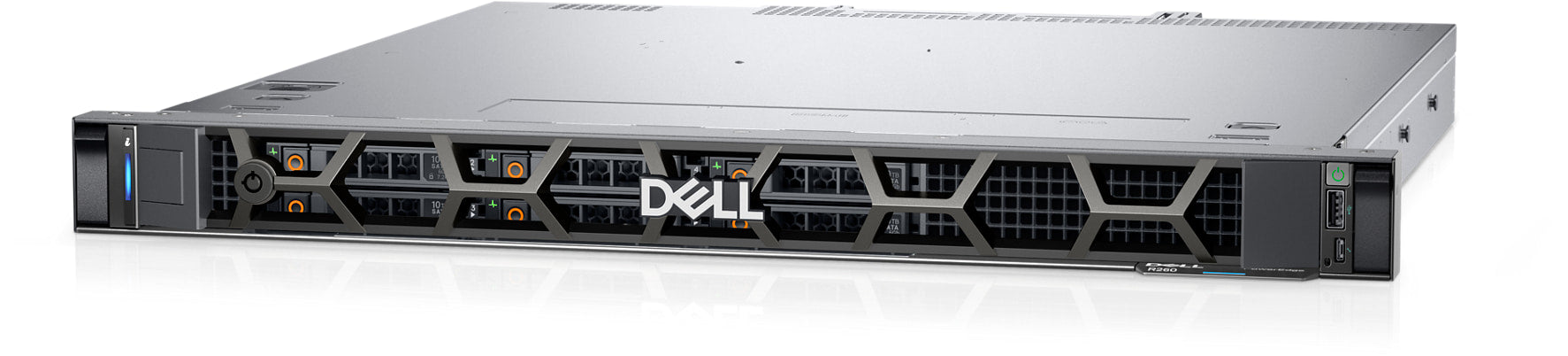

Dell R260 | PowerEdge R260 1U Short-Depth Rack Server, Single Socket

Authorised Dell Partner

SKU:R260

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Dell PowerEdge R260 is a short-depth, 1U, single-socket rack server built for small businesses and entry-level workloads. It supports a single Intel Xeon 6300 or Xeon E-2400 series processor (up to 8 cores, up to 95W TDP) or an Intel Pentium G7400 or G7400T, paired with up to 128GB of DDR5 UDIMM memory across four slots.

Storage options include up to 6 x 2.5-inch hot-plug SAS/SATA drives or up to 2 x 3.5-inch cabled SAS/SATA drives, with HBA355i, PERC H355 and PERC H755 controller choices. Embedded dual 1GbE, a dedicated iDRAC Ethernet port, PCIe Gen4 expansion and a compact chassis make it a practical fit for compact racks, branch offices and edge deployments.

Features

- Integrated Dell Remote Access Controller (iDRAC) for remote management
- Boot Optimized Storage Subsystem (BOSS-N1) with hardware RAID
- Energy Star 4.0 rated power supply
- DDR5 memory and PCIe Gen4 support
- Short-depth chassis suited to compact racks

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U short-depth rack server, single socket
- Processor: one Intel Xeon 6300 series or Xeon E-2400 series (up to 8 cores, up to 95W TDP), or Intel Pentium G7400 / G7400T (2 cores, 46W)
- Memory: 4 x DDR5 UDIMM slots, up to 128GB (4 x 32GB), up to 4400 MT/s
- Drive bays: up to 6 x 2.5-inch hot-plug SAS/SATA or up to 2 x 3.5-inch cabled SAS/SATA
- Storage controllers: HBA355i, PERC H355, PERC H755, external HBA355e, software S160
- Boot: internal USB 3.0 or BOSS-N1 hardware RAID with 2 x M.2 SSDs
- Power supply: 450W Platinum (non-redundant) or 700W Titanium
- Networking: 2 x 1GbE LOM (BCM5720), dedicated iDRAC Ethernet port
- Expansion: PCIe Gen4 slots via riser
- Rear I/O: 1 x USB 3.0, 1 x USB 2.0, VGA, serial
- Front I/O: USB 2.0, iDRAC Direct micro-USB
- Cooling: air cooled

FAQs

Q: What processors does the PowerEdge R260 support?
A: It supports a single Intel Xeon 6300 series or Xeon E-2400 series processor (up to 8 cores, up to 95W TDP), or an Intel Pentium G7400 or G7400T (2 cores, 46W).

Q: How much memory can the R260 hold?
A: It has four DDR5 UDIMM slots supporting up to 128GB (4 x 32GB), at speeds up to 4400 MT/s.

Q: What drive configurations are available?
A: Choose up to 6 x 2.5-inch hot-plug SAS/SATA drives or up to 2 x 3.5-inch cabled SAS/SATA drives.

Q: Does the R260 offer hardware RAID for boot drives?
A: Yes. The BOSS-N1 subsystem provides hardware RAID across 2 x M.2 SSDs for the operating system. Internal USB 3.0 boot is also supported.

Q: What power supply options are available?
A: A 450W Platinum non-redundant power supply or a 700W Titanium power supply.

Q: How is the server managed remotely?
A: It includes an integrated iDRAC and a dedicated iDRAC Ethernet port, plus an iDRAC Direct micro-USB port on the front panel.
