Dell 210-BRMB | Pro Dock WD25 USB-C Docking Station, 100W PD, 2.5GbE

Name: Dell 210-BRMB | Pro Dock WD25 USB-C Docking Station, 100W PD, 2.5GbE
Brand: Dell
SKU: 210-BRMB
Price: 259.33 AUD
Availability: InStock

Authorised Dell Partner

SKU:210-BRMB

In stock:773

$259.33 inc. GST

$235.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

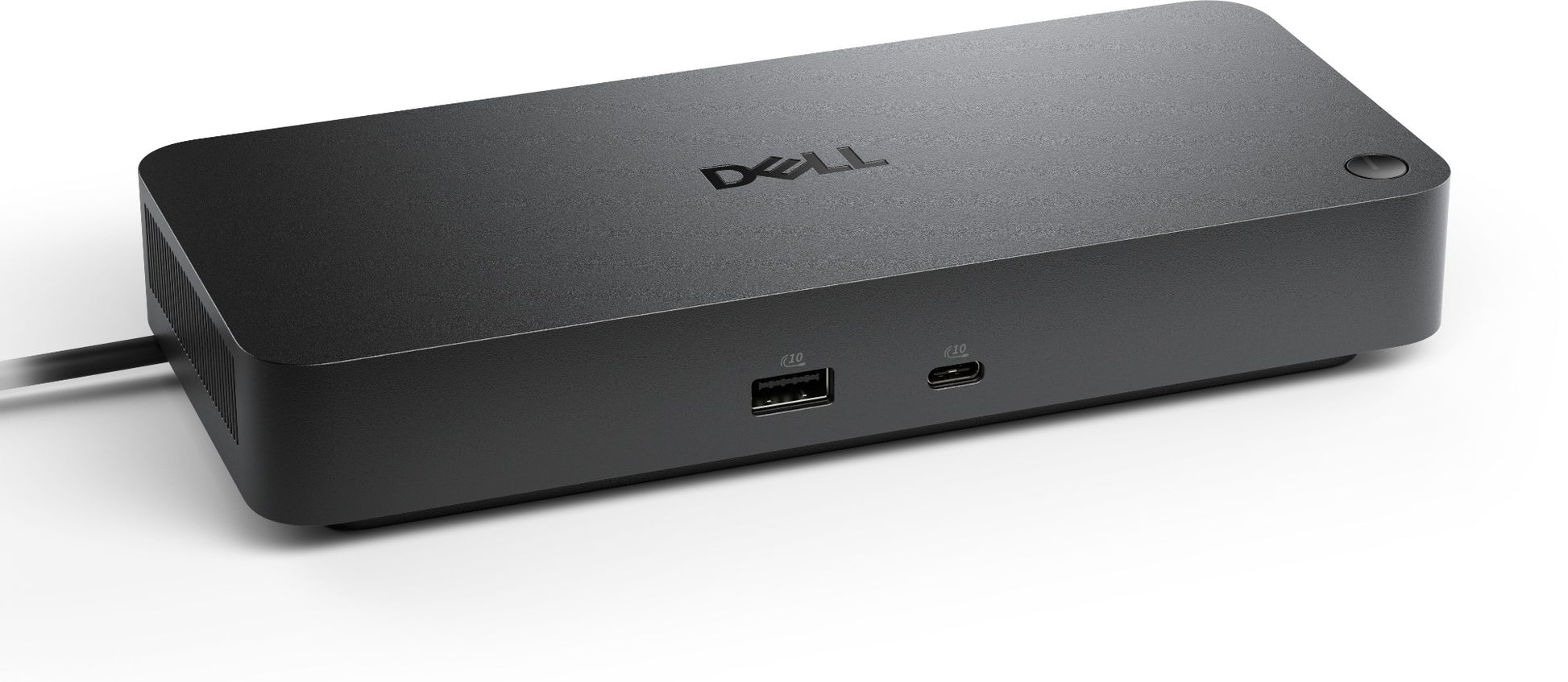

The Dell Pro Dock WD25 is a USB-C docking station that connects a laptop to up to four external displays, wired 2.5GbE networking and a full set of peripherals through a single 0.9 m docking cable. It delivers up to 100W power delivery to Dell systems from the included 130W adapter (96W to non-Dell systems), and provides 4 x USB-A, 2 x USB-C, 1 x HDMI 2.1 and 2 x DisplayPort 1.4 connections.

The four USB-A 3.2 Gen 2 ports support PowerShare on the front and rear, and the USB-C ports include one with DisplayPort 1.4 Alt Mode. Wake-on-LAN and MAC Address Pass-Through are supported on compatible computers. It works with Thunderbolt and USB-C DisplayPort Alt Mode laptops running Windows 10, Windows 11, Ubuntu, RHEL or ChromeOS, and includes Kensington and Noble Wedge security slots for desk deployments.

Features

- Up to 100W power delivery to Dell laptops, 96W to non-Dell systems
- Drives up to four external displays, including quad 4K 60Hz
- 2.5 Gigabit Ethernet with Wake-on-LAN and MAC Address Pass-Through on supported systems
- USB-A 3.2 Gen 2 ports with PowerShare for charging devices
- Compatible with Thunderbolt and USB-C DisplayPort Alt Mode computers
- Up to 72% lower power consumption in standby mode
- Built with up to 65% post-consumer recycled plastic
- Kensington and Noble Wedge security slots

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WD25
- Docking interface: USB Type-C with DisplayPort Alt Mode connector
- Power delivery: 100W to Dell systems, 96W to non-Dell systems, using the 130W power adapter
- Video ports: 1 x HDMI 2.1, 2 x DisplayPort 1.4, 1 x USB 3.2 Gen 2 Type-C with DisplayPort 1.4 Alt Mode
- External displays supported: up to four
- USB-A ports: 4 x USB 3.2 Gen 2 with PowerShare on front and rear
- USB-C ports: 2 x USB 3.2 Gen 2, one with DisplayPort 1.4 Alt Mode
- Network: 1 x RJ45 10/100/1000/2500 Mbps Ethernet
- Video resolution: 4K 60Hz dual, triple or quad display, 5K 60Hz single, 6K 60Hz dual, 8K 60Hz single
- Docking cable length: 0.9 m
- Power adapter: 130W
- Dimensions: 205 mm (W) x 89.9 mm (D) x 35.3 mm (H)
- Weight: approximately 548.8 g
- Security slots: Kensington and Noble Wedge
- Operating systems: Windows 10, Windows 11, Ubuntu 24.04 64-bit, RHEL 9.6+, ChromeOS 137

FAQs

Q: How many displays can the Dell Pro Dock WD25 support?
A: It supports up to four external displays using the HDMI 2.1 port, two DisplayPort 1.4 ports and the USB-C port with DisplayPort 1.4 Alt Mode, including quad 4K 60Hz.

Q: How much power does the dock deliver to the laptop?
A: With the included 130W adapter it delivers up to 100W to Dell computers and up to 96W to non-Dell computers.

Q: Which laptops is the WD25 compatible with?
A: It works with Thunderbolt computers and USB-C computers that support DisplayPort Alt Mode. Supported operating systems include Windows 10, Windows 11, Ubuntu 24.04, RHEL 9.6+ and ChromeOS 137.

Q: What network speeds does the dock support?
A: The RJ45 port supports 10/100/1000/2500 Mbps Ethernet, with Wake-on-LAN and MAC Address Pass-Through on supported computers.

Q: What is included in the box?
A: The package includes the docking station with its 0.9 m docking cable, the 130W power adapter and power cord, and documentation.

Q: What ports does the dock provide?
A: It provides 4 x USB-A 3.2 Gen 2, 2 x USB-C 3.2 Gen 2, 1 x HDMI 2.1, 2 x DisplayPort 1.4 and 1 x RJ45 2.5GbE.
