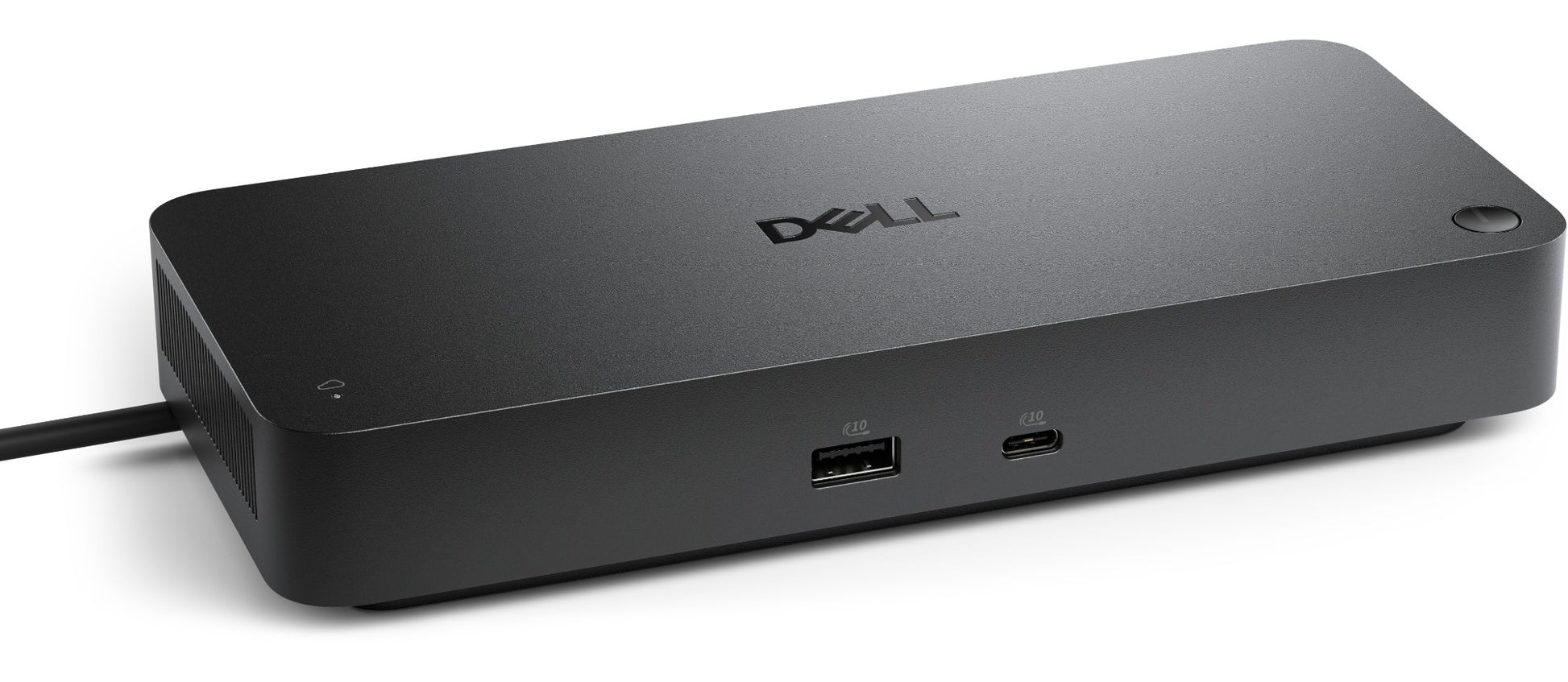

Dell 210-BRJV | Pro Smart Dock SD25 USB-C Docking Station, 130W PD, 2.5GbE

Name: Dell 210-BRJV | Pro Smart Dock SD25 USB-C Docking Station, 130W PD, 2.5GbE
Brand: Dell
SKU: 210-BRJV
Price: 316.25 AUD
Availability: InStock

Authorised Dell Partner

SKU:210-BRJV

In stock:838

$316.25 inc. GST

$287.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Dell Pro Smart Dock SD25 is a USB-C docking station that delivers up to 130W power to Dell systems (96W to non-Dell PCs) and supports up to four displays. It connects over a USB-C host with DisplayPort Alt Mode and provides 2 x DisplayPort 1.4, 1 x HDMI 2.1, 4 x USB-A 3.2 Gen 2 ports and 2.5 Gigabit Ethernet, making it a practical single-cable desk solution for business notebooks.

The dock adds remote manageability, including firmware updates without a PC attached, plus host management functions such as MAC address pass-through, PXE boot and Wake-on-LAN. An ambidextrous 90 cm USB-C cable can be routed left or right, and a Kensington security slot supports secure deployment. Built with at least 65% post-consumer recycled materials.

Features

- Remote management without a PC attached, including remote firmware updates
- Host PC management: MAC address pass-through, PXE boot, Wake-on-LAN, WLAN to LAN switch, dock power button sync, kernel DMA protection
- Port disablement independent of the PC
- Ambidextrous USB-C cable that can be routed left or right
- Built with at least 65% post-consumer recycled materials and 100% recycled or renewable packaging
- USB ports deliver power with or without a PC attached
- Kensington security slot

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Host interface: USB Type-C with DP Alt Mode
- Power delivery: up to 130W (Dell systems) / 96W (non-Dell systems); 180W AC adapter
- Video outputs: 2 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
- Supports up to 4 displays
- USB ports: 4 x USB-A 3.2 Gen 2 (10 Gbps, PowerShare), 1 x USB-C 3.2 Gen 2 (10 Gbps, 15W), 1 x USB-C Multi-function DisplayPort (7.5W)
- Network: RJ45 2.5 Gigabit Ethernet
- Host cable length: 90 cm
- Dimensions (W x D x H): 90 x 35.25 x 205 mm
- Weight: approx. 562 g
- Colour: Black
- Warranty: 3-Year Limited Hardware Warranty with Advanced Exchange

FAQs

Q: How much power does the SD25 deliver to a connected laptop?
A: It delivers up to 130W to Dell systems and up to 96W to non-Dell PCs, powered by the included 180W AC adapter.

Q: How many displays can the Dell Pro Smart Dock SD25 support?
A: It supports up to four displays using 2 x DisplayPort 1.4, 1 x HDMI 2.1 and the USB-C multi-function DisplayPort output.

Q: Does the dock support wired network connectivity?
A: Yes. It includes an RJ45 2.5 Gigabit Ethernet port, with MAC address pass-through, PXE boot and Wake-on-LAN support.

Q: Can the dock be managed remotely?
A: Yes. It supports remote management and firmware updates without a PC attached, and ports can be disabled independently of the PC.

Q: What USB ports does the SD25 provide?
A: It provides 4 x USB-A 3.2 Gen 2 (10 Gbps), 1 x USB-C 3.2 Gen 2 (10 Gbps, 15W) and 1 x USB-C multi-function DisplayPort port.

Q: Does it work with non-Dell laptops?
A: Yes. It connects via USB Type-C with DisplayPort Alt Mode, and delivers up to 96W of power to non-Dell systems.
