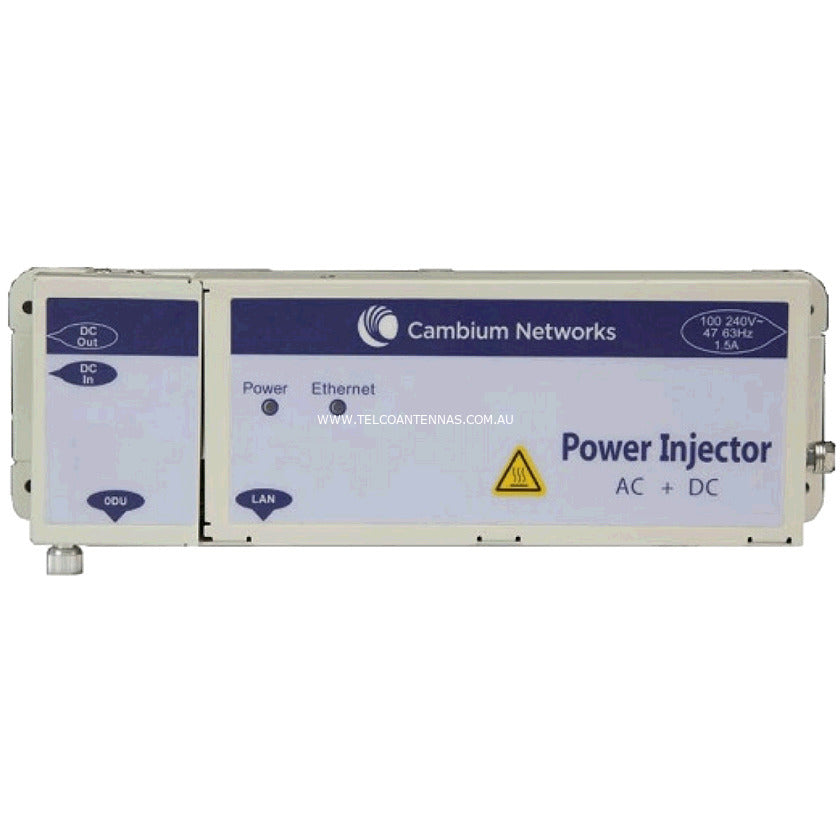

Cambium Networks C000065L002D | PTP 670 58V AC+DC PoE Power Injector, 100W, GbE, AU Power Cable
Cambium Networks C000065L002D | PTP 670 58V AC+DC PoE Power Injector, 100W, GbE, AU Power Cable
SKU:C000065L002D
In stock: 2
Couldn't load pickup availability
Description
Description
Compatible with PTP 670, PTP 650, PTP 48700, PTP 78700, PMP 450i, and 5 GHz PMP 450m radios, this injector also supports auxiliary device powering (cameras, wireless APs) via the ODU auxiliary port. An extended operating temperature range of -40°C to +60°C and Level VI energy efficiency compliance ensure reliable performance in harsh environments across Australia and globally.
Features
Features
- Dual AC+DC input for flexible deployment — supports both mains AC and 48 VDC battery/solar sources
- 58V / 100W PoE output delivers reliable simultaneous power and data over a single Ethernet cable
- Level VI energy efficiency compliance reduces operational power costs
- Wide global regulatory compliance supports worldwide deployment
- Extended operating temperature range (-40°C to +60°C) suited to harsh outdoor and remote environments
- Auxiliary device powering via ODU auxiliary port — supports cameras, wireless APs, and other 12V accessories
- Compatible with PTP 670, PTP 650, PTP 48700, PTP 78700, PMP 450i, and 5 GHz PMP 450m radios
- Australian power cable included — ready to deploy out of the box in Australia
Warranty
Warranty
Cambium Networks offers a standard 1-year limited warranty on most hardware products, covering defects in materials and workmanship under normal use conditions.
Extended Warranty Periods for Specific Products:
Certain product families come with extended warranty periods:
• cnMatrix – EX Series: 5 years
• cnMatrix – TX Series: 3 years
• cnPilot Wi-Fi 5 E-Series Indoor Access Points: 5 years
• cnPilot Wi-Fi 5 E-Series Outdoor Access Points: 3 years
• ePMP, PMP 450 Series, PTP 450 and PTP 550 Series: 3 years
• Wi-Fi 6 Indoor Access Points (e.g., XE3-4, XE5-8, XV2-2): Limited Lifetime Warranty (valid through product End of Life)
• Wi-Fi 6 Outdoor Access Points (e.g., XV2-2T): 3 years
• Wi-Fi 7 Indoor Access Points (e.g., X7-35X): Limited Lifetime Warranty (valid through product End of Life)
• Xirrus Series (e.g., XR-1xxx, XR-2xxx): 5 years
• Xirrus Series (e.g., X2-120, XR-320): Limited Lifetime Warranty (valid through product End of Life)
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Cambium Networks products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output Voltage: 58V
- Maximum Output Power: 100W
- AC Input: 90–240 VAC, 50/60 Hz
- DC Input: 48 VDC (via screw terminals)
- AC Inlet: 2-wire IEC60320 C8
- Data Port: RJ45 Gigabit Ethernet (1G)
- DC Output: Screw terminals
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Ingress Protection: IP20 (Indoor/Outdoor rated)
- Energy Efficiency: Level VI compliant
- Dimensions: 250mm (W) x 40mm (H) x 80mm (D)
- AU Power Cable: Included
FAQs
Q: Which Cambium radios is the C000065L002D power injector compatible with?
A: The C000065L002D is compatible with Cambium Networks PTP 670, PTP 650, PTP 48700, PTP 78700, PMP 450i, and 5 GHz PMP 450m radios. Always verify compatibility with your specific radio model and firmware revision before ordering.
Q: Can this injector operate from a DC power source such as a battery bank or solar system?
A: Yes. The injector accepts both AC input (90–240 VAC, 50/60 Hz) and DC input (48 VDC via screw terminals), making it well suited for off-grid or hybrid power deployments common in rural and remote Australian fixed wireless installations.
Q: Is an Australian power cable included with this SKU?
A: Yes. The C000065L002D is the Australian variant of this power injector and ships with an AU-standard power cable included, so no additional cable purchase is required for Australian deployments.
Q: Can the C000065L002D power auxiliary devices such as cameras?
A: Yes. The injector supports powering of auxiliary devices (for example IP cameras or wireless access points) via the ODU auxiliary port, reducing the need for separate power supplies at remote sites.
Q: Is this injector suitable for outdoor installation in harsh Australian conditions?
A: The injector is rated IP20 and operates across -40°C to +60°C, making it suitable for enclosed outdoor cabinets and harsh-environment deployments. It is not designed for fully exposed outdoor mounting without an enclosure.
Q: How can I purchase the Cambium C000065L002D in Australia?
A: You can order the C000065L002D directly from IP Trading at iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller offering enterprise-grade Cambium Networks products with expert pre-sales support and local fulfilment.
