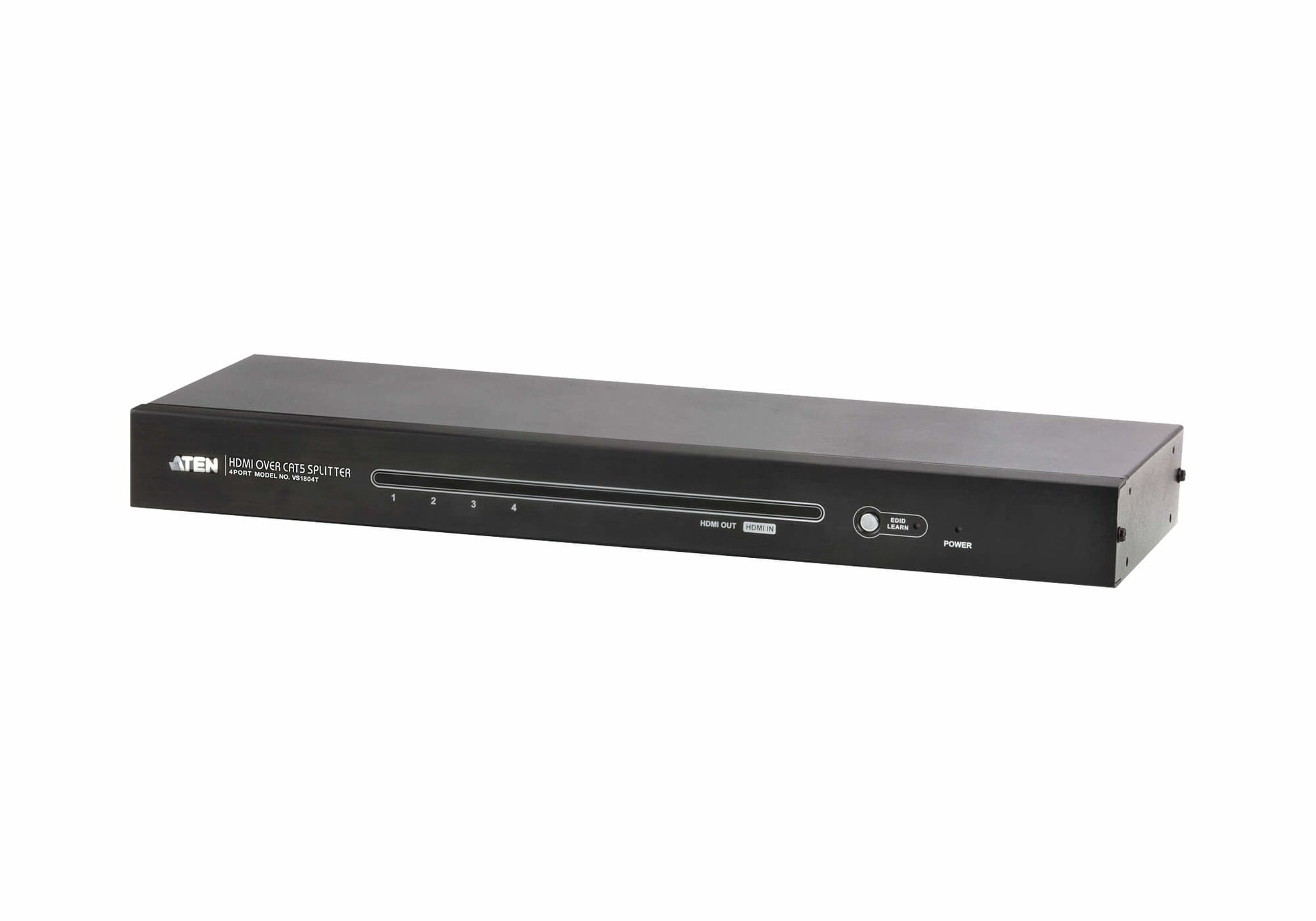

ATEN VS1804T-AT-U | VS1804T 4-Port HDMI over Cat5e/6 Splitter, 1 x HDMI In, 4 x RJ45 Out, 1080p 40 m

ATEN VS1804T-AT-U | VS1804T 4-Port HDMI over Cat5e/6 Splitter, 1 x HDMI In, 4 x RJ45 Out, 1080p 40 m

VS1804T-AT-U

Stock Status: Enquire

$748.88 AUD
$748.88 AUD
$748.88 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Distribute a single HDMI source to four remote displays over Cat5e/6 with the VS1804T.. Pair with compatible ATEN receivers (e.g., VE800A/VE800R) to deliver stable Full HD 1080p up to 40 m, with HDCP compliance and EDID handling for reliable, plug-and-play operation. Ideal for digital signage, education, hospitality and control rooms, it supports cascading for larger deployments and is built for continuous operation.. Backed by ATEN's manufacturer warranty for peace of mind.. iptrading.com.au your local source for enterprise-grade networking solutions.

Features

- Distribute one HDMI source to four remote displays over existing Cat5e/6 cabling
- Full HD 1080p up to 40 m; up to 60 m at 1080i
- Works seamlessly with ATEN VE800A/VE800R receivers
- HDCP-compliant with EDID optimisation for reliable signal handshakes
- Cascade up to 3 levels to scale out to larger display counts
- Robust metal design for dependable, continuous operation

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: VS1804T
- Function: 1 x HDMI input to 4 x remote outputs over Cat5e/6
- Video input: 1 x HDMI Type A (female)
- Extension outputs: 4 x RJ-45 (HDMI over Cat5e/6 to receiver units)
- Supported receivers: ATEN VE800A/VE800R (or compatible)
- Max resolution: 1920 x 1080 (1080p)
- Max distance: up to 40 m at 1080p; up to 60 m at 1080i (Cat5e/6)
- HDMI features: 3D and Deep Color support; HDCP compliant
- EDID: selectable/pass-through for optimal compatibility
- Cascading: up to 3 levels for expanded distribution
- Cable type: Cat5e/6 UTP/STP
- Enclosure: metal, designed for continuous operation
- Power: external DC power adapter (region-specific)

FAQs

Q: What does the VS1804T do?
A: It splits one HDMI source to four remote displays over Cat5e/6 when used with compatible ATEN HDMI-over-Cat5 receivers.

Q: What receivers do I need at the display end?
A: Use ATEN VE800A or VE800R receivers (or compatible models) at each remote display to convert the Cat5e/6 run back to HDMI.

Q: How far can I run the signal and at what resolutions?
A: Up to 40 m at 1080p over Cat5e/6, and up to 60 m at 1080i (or lower data rates), subject to cable quality and installation conditions.

Q: Does it support HDCP, 3D and EDID?
A: Yes. The VS1804T is HDCP compliant, supports HDMI 3D/Deep Color, and provides EDID handling for reliable start-up and compatibility.

Q: Can I expand the number of displays beyond four?
A: Yes. You can cascade VS1804T units up to three levels to increase the total number of remote displays.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading supplies the VS1804T in Australia and can assist with compatible receiver units, cabling advice, and local support.
