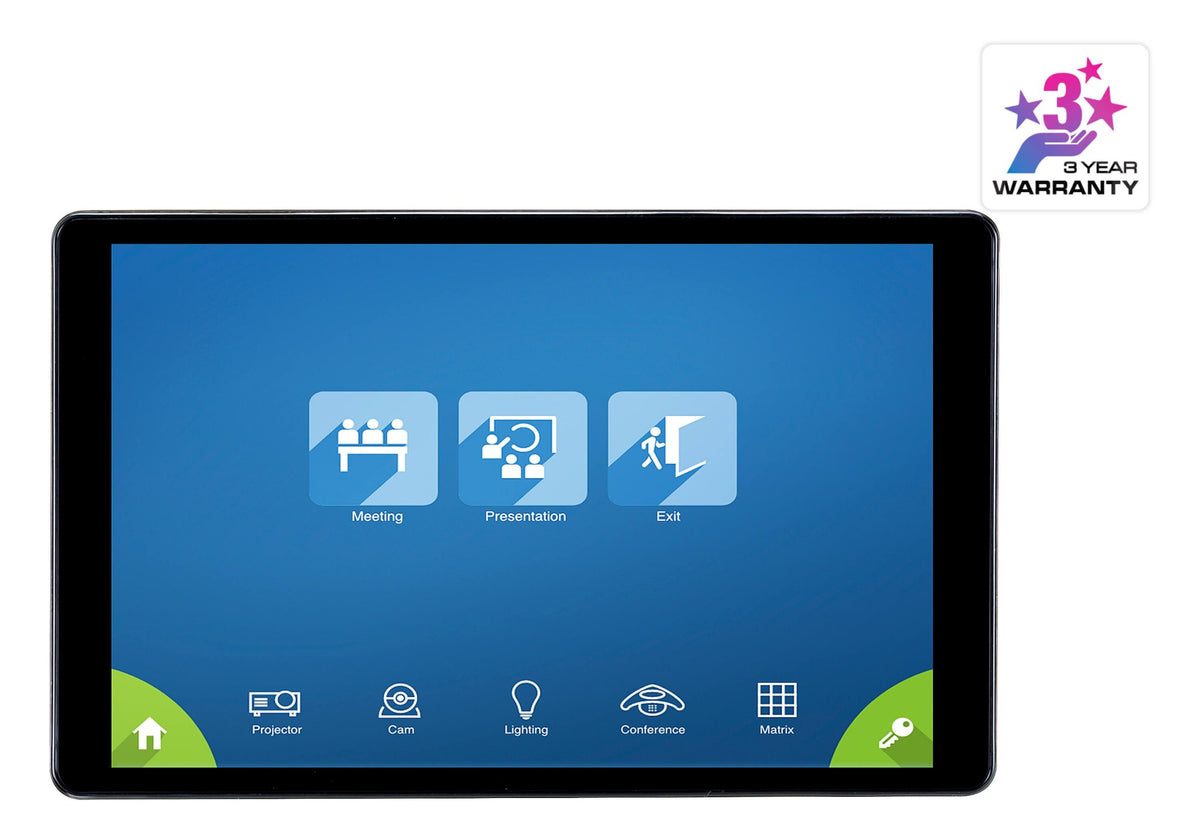

• Black-framed aten vk320 8 inch ips touch panel with blue interface and white icons for control system functions
1 1

ATEN

ATEN VK320-AT | VK320 8" IPS Touch Panel, 1280x800, In-Wall, Control System, PoE

ATEN VK320-AT | VK320 8" IPS Touch Panel, 1280x800, In-Wall, Control System, PoE

VK320-AT

Stock Status: Enquire

$1,864.28 inc. GST
$1,694.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN VK320 is an 8-inch capacitive multi-touch IPS-LCD touch panel designed for professional AV and room control deployments. Natively running the ATEN Control System app, it integrates seamlessly with ATEN Control Boxes and Control Pads to deliver centralised management of AV equipment, lighting, climate, and conferencing systems. Its narrow bezel in-wall design with an included 86-type junction box ensures a clean, professional finish in boardrooms, classrooms, and collaborative spaces.

Power over Ethernet (PoE 802.3at) support enables single-cable installation for both power and data, drastically simplifying deployment. The VK320 supports real-time IP camera preview via RTSP/ONVIF, room booking integration via ATEN Unizon, and synchronisation across multiple touch panels and mobile devices. Built-in microphones, speakers, and a side power LED round out an enterprise-ready feature set. Available now at iptrading.com.au — competitive prices and local support.

Features

- Capacitive multi-touch IPS-LCD screen with narrow bezel for a premium in-room aesthetic
- Natively installed with ATEN Control System app for out-of-the-box AV control
- PoE (802.3at) support enables clean, single-cable power and data installation
- In-wall design with included 86-type junction box for professional installation
- Compatible with ATEN Control Boxes and Control Pads for scalable room control
- Real-time IP camera and video preview via RTSP/ONVIF protocols
- ATEN Unizon and Room Booking System integration for room scheduling
- Multi-viewer support for monitoring and controlling multiple rooms simultaneously
- Synchronisation across multiple ATEN Touch Panels, mobile devices, and tablets
- Supports third-party apps including video conferencing and device control
- Demo mode for product demonstrations without a connected controller
- Built-in microphones and speakers for voice interaction
- Side power LED indicator for use in dark environments
- Compatible with optional VK101/VK102 Tabletop Kits for flexible deployment

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Display: 8" IPS-LCD, 1280 x 800 resolution, 16:10 aspect ratio
- Touch: Capacitive multi-touch
- Colour Depth: 8-bit
- Contrast Ratio: 800:1
- Luminance: 300 cd/m²
- Viewing Angle: ±85° horizontal, ±85° vertical
- Processor: Quad-core
- Memory: 2 GB SDRAM
- Storage: 16 GB Flash
- Ethernet: 1 x RJ-45 (10/100 BaseT)
- USB: 1 x USB Type-C
- Power: PoE (802.3at PoE+) or DC 12V
- Power Consumption: 12W (DC 12V) / 14.1W (PoE)
- Dimensions (L x W x H): 200.1 x 124.6 x 37.7 mm
- Weight: 0.33 kg
- Housing: Black Plastic
- Operating Temperature: 0–40°C
- Includes: 86-type junction box

FAQs

Q: Is the ATEN VK320 compatible with third-party AV control systems?
A: The VK320 is natively designed for the ATEN Control System and works with ATEN Control Boxes and Control Pads. It can also run third-party apps (such as video conferencing or device control applications) and integrates with RTSP/ONVIF-compatible IP cameras for real-time video preview.

Q: Does the VK320 require a separate power supply?
A: No. The VK320 supports Power over Ethernet (PoE 802.3at / PoE+), allowing a single network cable to deliver both data and power. A DC 12V power supply can also be used if a PoE-capable switch or injector is not available.

Q: How is the VK320 mounted?
A: The VK320 is designed for in-wall installation and includes an 86-type junction box. It is also compatible with standard decorator-style 1-gang junction boxes (US, EU, and MK types). Tabletop mounting is available via optional VK101 or VK102 Tabletop Kits.

Q: Can the VK320 be used for room booking and scheduling?
A: Yes. The VK320 integrates with ATEN Unizon and the ATEN Room Booking System, enabling real-time room scheduling and availability display directly on the touch panel.

Q: Can multiple VK320 panels be synchronised?
A: Yes. The VK320 supports synchronisation of system control across multiple ATEN Touch Panels, mobile devices, and tablets, making it suitable for multi-room or campus-wide AV control environments.

Q: Where can I purchase the ATEN VK320 in Australia?
A: The ATEN VK320 is available now at iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller offering competitive pricing and local support for ATEN Control System products.
