ATEN

ATEN VE806-AT-U | VE Series, VE806 HDMI over 2 x Cat 5 Extender, 1080p60 40m / 1080i60 60m, Tx/Rx

ATEN VE806-AT-U | VE Series, VE806 HDMI over 2 x Cat 5 Extender, 1080p60 40m / 1080i60 60m, Tx/Rx

SKU:VE806-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

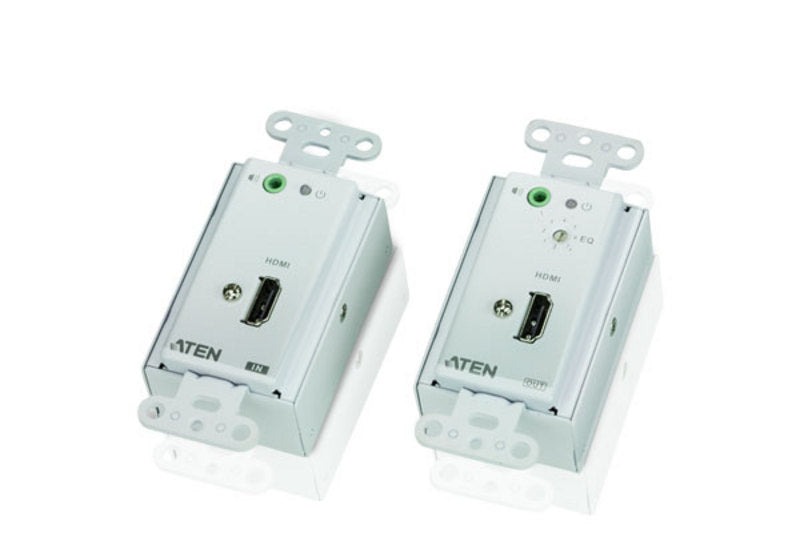

ATEN€™s VE806 is a wall€‘plate style HDMI extender kit that uses two Cat 5 cables to deliver Full HD video over distance.. It€™s ideal for clean in€‘wall installations in meeting rooms, classrooms, and digital signage where HDMI needs to travel further than standard cables allow. Engineered for reliability and easy deployment, the kit includes both transmitter and receiver and supports up to 1080p at 40 m or 1080i at 60 m.. Backed by ATEN€™s proven build quality and warranty support.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Full HD extension over cost-effective Cat 5 cabling
- Clean, professional wall-plate installation
- Reliable long-distance video for meeting rooms and classrooms
- Simple Tx/Rx kit for fast deployment
- HDCP support for protected content

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What maximum resolution and distance does the VE806 support?
A: It supports up to 1080p@60Hz to 40 metres, or up to 1080i@60Hz to 60 metres over dual Cat 5/5e/6 cables.

Q: Does this extender require one or two network cables?
A: The VE806 uses two Cat 5/5e/6 cables between the transmitter and receiver for signal transmission.

Q: Can the VE806 transmit 4K video?
A: No. The VE806 is designed for Full HD and supports resolutions up to 1080p.

Q: Is the VE806 HDCP compliant?
A: Yes, the extender supports HDCP-protected content over the link.

Q: Does it include both the transmitter and receiver?
A: Yes. The VE806 is sold as a kit with both Tx and Rx units.

Q: Can I buy the ATEN VE806-AT-U in Australia from IP Trading?
A: Yes. You can order directly from IP Trading for Australian supply, billing, and support.

Technical Specifications

- Extends HDMI over dual Cat 5/5e/6 cabling
- Maximum distance: 40 m at 1080p@60Hz; 60 m at 1080i@60Hz
- Video resolution support: up to 1920 x 1080 (Full HD)
- Kit includes transmitter (Tx) and receiver (Rx)
- Form factor: wall-plate style units
- Colour: White
- HDMI Type A (female) input/output ports
- Two RJ-45 ports per link (dual-cable design)
- HDCP compliant
- Typical power: 5 V DC (adapters usually required)
