ATEN

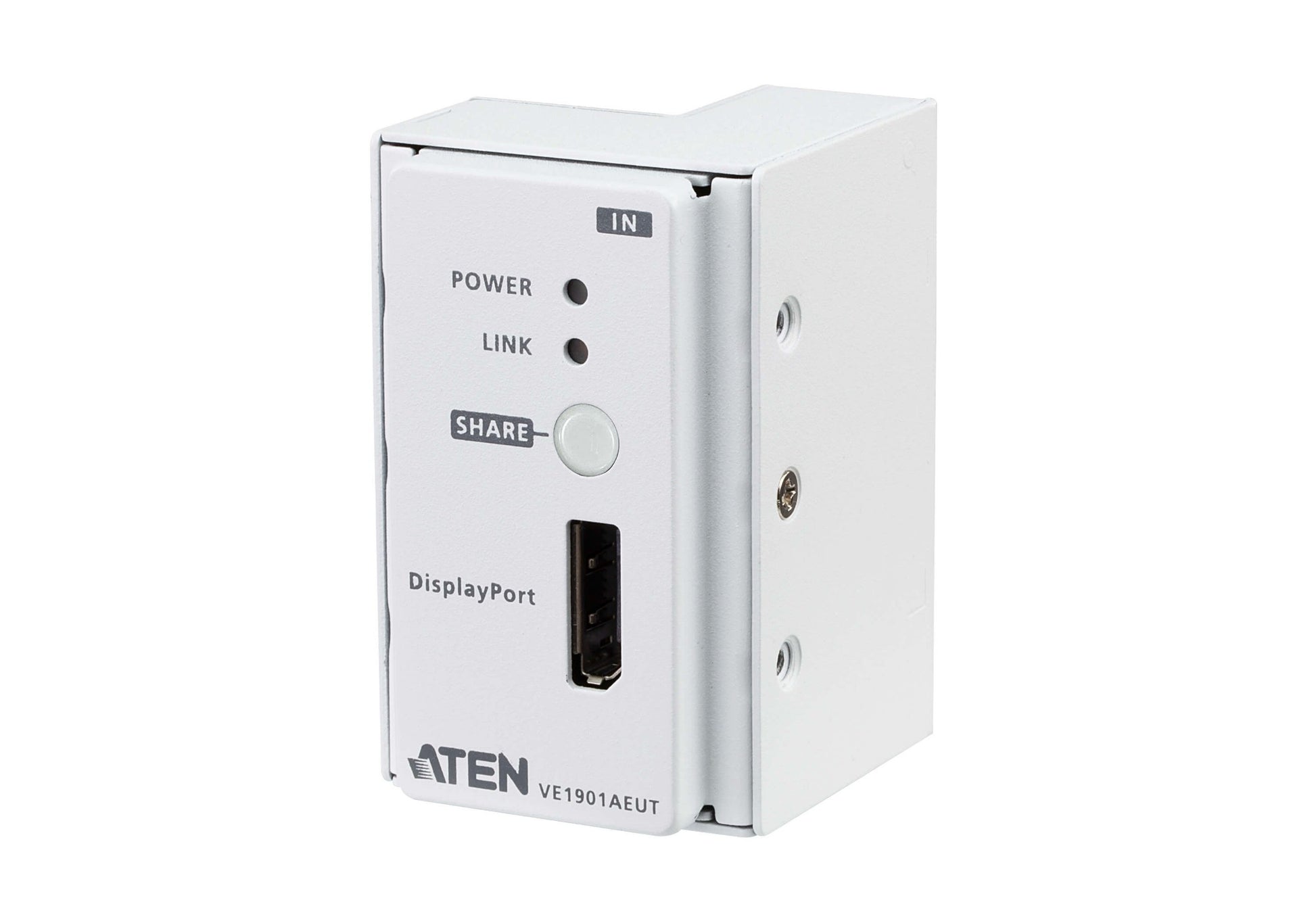

ATEN VE1901AEUT-AT-U | VE1901AEUT DisplayPort HDBaseT-Lite Wall Plate TX, PoH, RS-232

ATEN VE1901AEUT-AT-U | VE1901AEUT DisplayPort HDBaseT-Lite Wall Plate TX, PoH, RS-232

SKU:VE1901AEUT-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VE1901AEUT is a DisplayPort HDBaseT-Lite wall plate transmitter designed for clean in-wall AV runs in meeting rooms, classrooms and digital signage.. It extends DisplayPort video over HDBaseT-Lite and integrates PoH for simplified power and cabling, plus robust 8kV/15kV ESD protection. Backed by the manufacturer warranty and engineered for reliable long-distance signal delivery and control via RS-232 pass-through, it pairs with compatible HDBaseT receivers for a complete point-to-point solution.. Order now at iptrading.com.au trusted by Australian IT professionals.

Features

- Single-cable DisplayPort extension over HDBaseT-Lite
- PoH simplifies deployment by removing local power at the wall plate
- RS-232 pass-through for integrated device control
- Robust 8 kV/15 kV ESD protection for installation reliability
- EU wall plate design for a clean, professional finish

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does HDBaseT-Lite mean on this transmitter?
A: HDBaseT-Lite (Class B) carries video and control over a single Cat cable for streamlined installs, typically up to 70 m at 1080p and 40 m at 4K with good quality cabling.

Q: Does the VE1901AEUT support control signals?
A: Yes. It supports an RS-232 channel pass-through so you can extend serial control alongside the DisplayPort video.

Q: How is the unit powered?
A: It supports Power over HDBaseT (PoH), allowing power to be delivered over the HDBaseT link when used with a compatible PoH-capable receiver, eliminating a local power supply at the wall plate.

Q: Is this suitable for in-wall installation?
A: Yes. It is an EU-style wall plate transmitter in white, designed for tidy in-wall installations. Ensure an appropriate EU mounting box or compatible faceplate solution is used.

Q: Which receivers are compatible?
A: Use with compatible ATEN HDBaseT-Lite receivers that support PoH and DisplayPort signal transport. Match HDBaseT-Lite (Class B) capability for best results.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading supplies this model in Australia with local invoicing and fast shipping. Request a quote or place an order directly on iptrading.com.au.

Technical Specifications

- Transmitter type: DisplayPort to HDBaseT-Lite (Class B)
- Form factor: EU-style wall plate, colour: White
- Video input: 1 x DisplayPort (female)
- HDBaseT-Lite output: 1 x RJ-45 (Cat 5e/6/6a)
- Power over HDBaseT (PoH) for simplified installation
- RS-232 channel pass-through supported
- Built-in ESD protection: 8 kV contact, 15 kV air discharge
- Typical extension: up to 70 m at 1080p; up to 40 m at 4K via Cat 6a
