ATEN

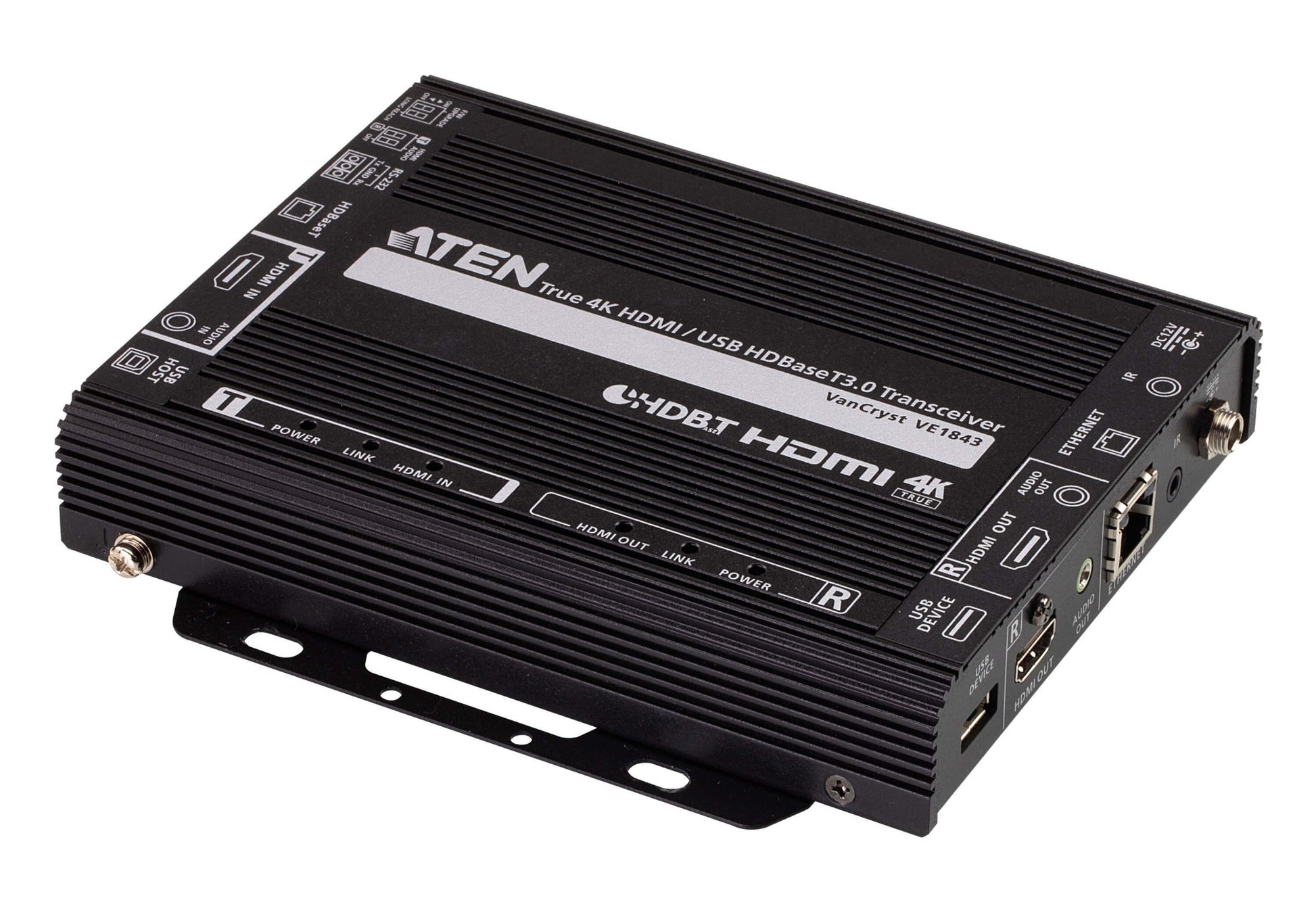

ATEN VE1843-AT-U | VE1843 True 4K HDMI/USB HDBaseT 3.0 Transceiver, 4K60 4:4:4, PoH, 100 m

ATEN VE1843-AT-U | VE1843 True 4K HDMI/USB HDBaseT 3.0 Transceiver, 4K60 4:4:4, PoH, 100 m

SKU:VE1843-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VE1843 is a True 4K HDMI/USB HDBaseT 3.0 transceiver that can be configured as either a transmitter or receiver, delivering uncompressed 4K60 4:4:4 video and USB 2.0 over a single Cat6a/7 cable up to 100 m.. It€™s ideal for meeting rooms, classrooms and signage where long€‘distance HDMI and peripheral extension is required. Built for professional AV, it supports HDCP 2.2, IR and RS€‘232 control pass€‘through, and Power over HDBaseT (PoH) so only one side needs a power supply.. Backed by the manufacturer€™s warranty and ATEN reliability.. Upgrade your network with gear from iptrading.com.au Australia€™s IT hardware specialists.

Features

- Flexible transceiver: configure as TX or RX to suit the job
- Uncompressed True 4K video for pristine image quality
- Single-cable simplicity: video, USB, and control over Cat6a/7
- PoH reduces power points and simplifies installs
- USB 2.0 extension enables interactive and UCC peripherals
- Pro AV integration with IR and RS-232 pass-through

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the VE1843 do?
A: It is a True 4K HDMI/USB HDBaseT 3.0 transceiver that can be set as a transmitter or receiver to extend uncompressed 4K60 4:4:4 video and USB over a single Cat6a/7 cable.

Q: What is the maximum distance and resolution it supports?
A: Up to 100 metres for 4K 60 Hz 4:4:4 video over Cat6a/7 cabling via HDBaseT 3.0.

Q: Does it carry control signals as well as video?
A: Yes. It supports IR and RS-232 pass-through for remote display/control system integration.

Q: What USB devices are supported?
A: USB 2.0 devices such as keyboards, mice, touch screens, webcams, and other peripherals via 1 x USB-B (host) and 2 x USB-A (devices).

Q: How is the system powered?
A: It supports Power over HDBaseT (PoH), allowing one powered unit to supply power to the remote end, reducing the need for multiple power adapters.

Q: Can I buy the VE1843 in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN products in Australia and can assist with quotations, stock, and delivery nationwide.

Technical Specifications

- HDBaseT 3.0 transceiver (configurable as TX or RX)
- True 4K 3840 x 2160 @ 60 Hz, 4:4:4 (HDMI 2.0, HDCP 2.2)
- Extension distance: up to 100 m over Cat6a/7 cable
- 1 x HDMI Type-A port
- 1 x HDBaseT RJ-45 port
- USB 2.0 extension: 1 x USB-B upstream, 2 x USB-A downstream
- IR control pass-through (3.5 mm)
- RS-232 control pass-through (terminal block)
- Power over HDBaseT (PoH) - single€‘side power
- Metal enclosure; rack/wall mounting options
